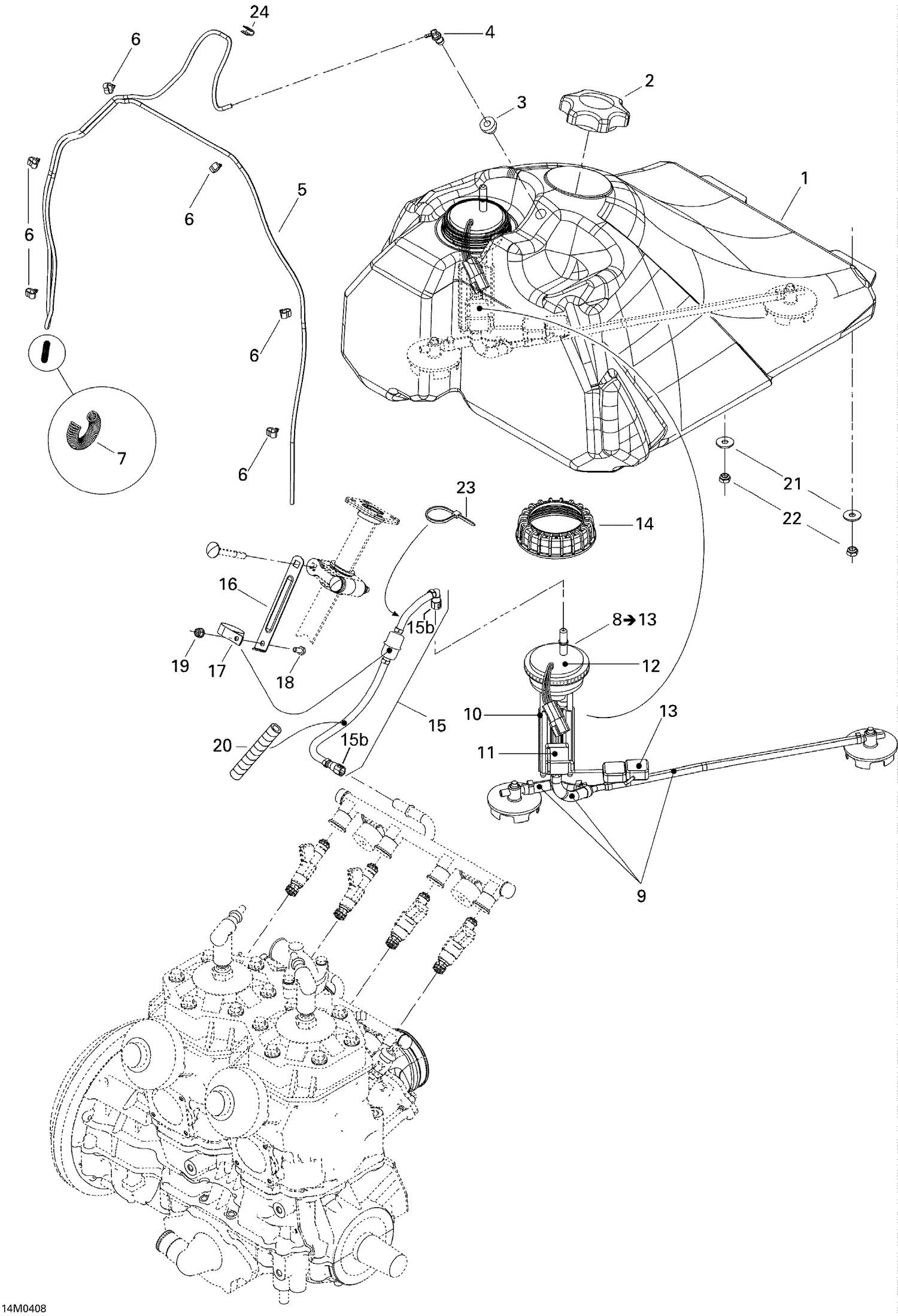

02- Fuel System
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033005 | FUEL TANK - Call your local BRP dealership |
| 3 | 513032908 | Grommet |
| 4 | 414814100 | Male Connector |
| 5 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 6 | 513032923 | TUBE CLAMP - Call your local BRP dealership |
| 7 | 414818200 | SPRING - Call your local BRP dealership |
| 9 | 861302300 | Fuel Hose Kit |
| 10 | 861302000 | Pump Kit |
| 11 | 861301800 | Resistor Card Kit |
| 12 | 861302100 | REGULATOR KIT - Call your local BRP dealership |
| 13 | 861301900 | Float Lever Kit |
| 14 | 513033040 | Nut, Fuel Pump Module |
| 15 | 513033106 | Fuel Filter |
| 15b | 513033135 | Locking Clip |
| 16 | 513033057 | Filter Support |
| 17 | 513033047 | Open Clamp |
| 18 | 207161644 | Hex. Screw M6 X 16 |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 20 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 21 | 234082410 | Flat Washer 8 mm |
| 22 | 232581414 | Hex. Elastic Stop Nut M8 |
| 23 | 293750008 | Tie Wrap 368 mm |
