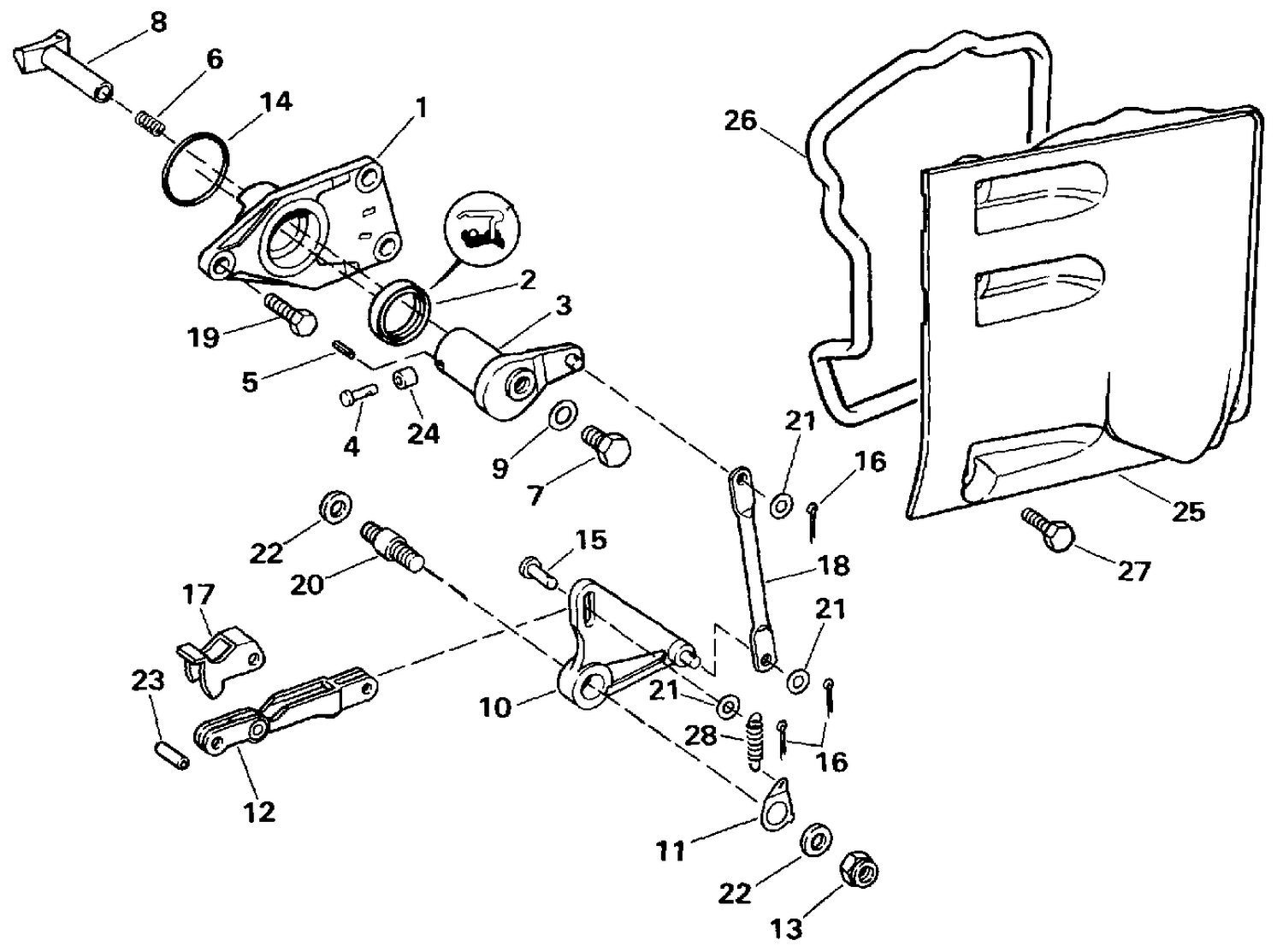

| Ref | Part Number | Description |
|---|
| 1 |
3853980 |
HOUSING & BEARING |
| 2 |
3853244 |
SEAL, Shift actuator |
| 3 |
3854054 |
PISTON & PIN |
| 4 |
3852948 |
PIN, Shift actuator stop |
| 5 |
3852947 |
ROLL PIN, Shift actuator stop |
| 6 |
3852921 |
SPRING, Shift shoe |
| 7 |
3852923 |
SCREW, Shift shoe stop |
| 8 |
3852927 |
SHIFT SHOE |
| 9 |
3852929 |
SHIM, Shift shoe screw, 0.010 in. |
| 10 |
3854146 |
BELLCRANK & PIN |
| 11 |
3853324 |
RETAINER, Spring |
| 12 |
3852924 |
LINK, Guide to bellcrank |
| 14 |
3852928 |
O-RING, Shift actuator housing |
| 15 |
3852926 |
PIN, Link to bellcrank |
| 17 |
3853438 |
RETAINER, Link to cable guide |
| 18 |
3852922 |
ROD, Bellcrank to actuator |
| 19 |
3853715 |
SCREW, Shift actuator housing |
| 20 |
3852925 |
STUD, Bellcrank to housing |
| 23 |
3853437 |
PIN, Link to shift cable guide |
| 24 |
3853281 |
ROLLER, Shift stop pin |
| 25 |
3852998 |
COVER, Gearcase, port |
| 26 |
3853000 |
SEAL, Port side cover |
| 27 |
3853428 |
SCREW, Anchor bracket |
