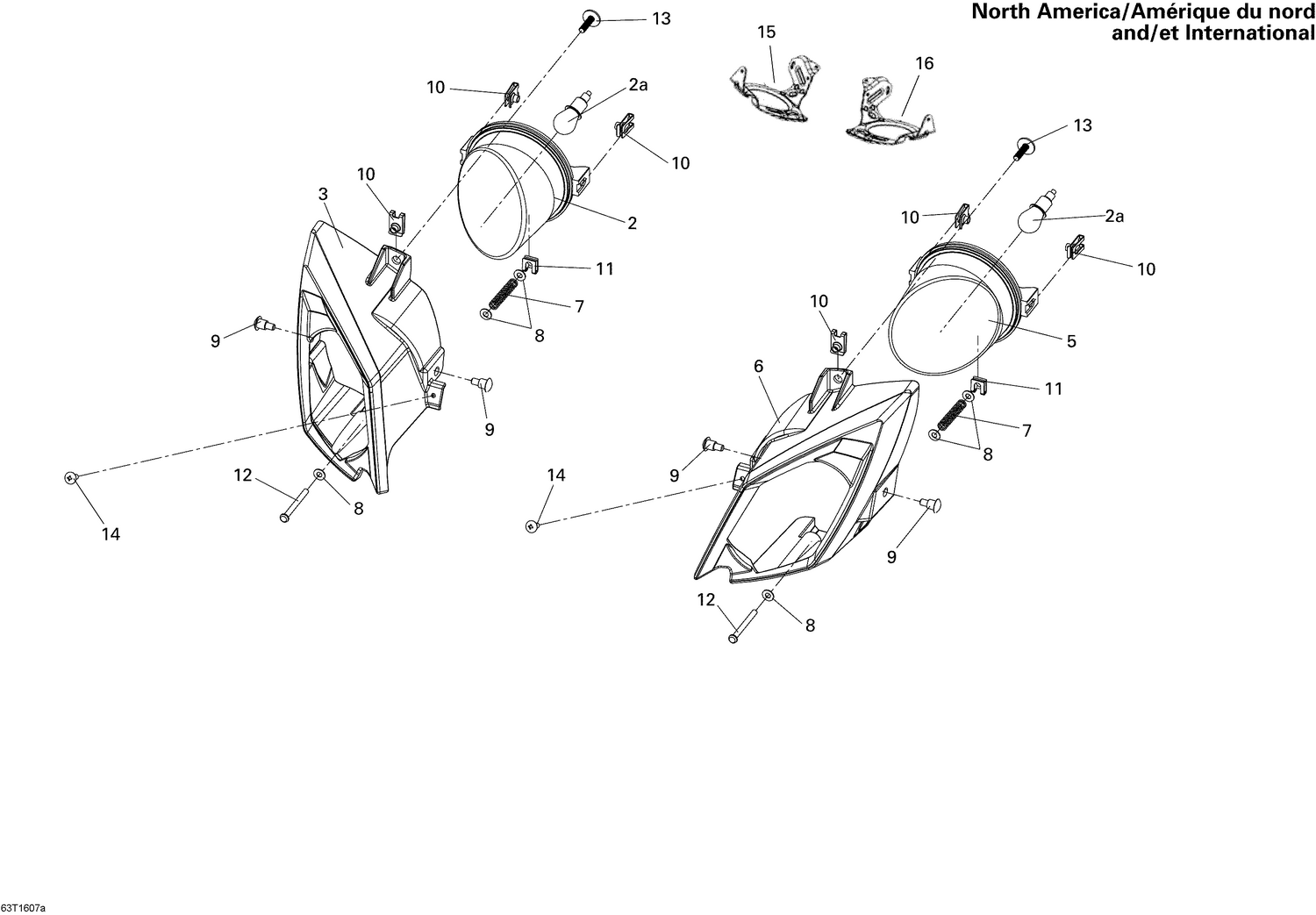

10- Headlights North America, International
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 2 | S33100RCB900 | RH Head Light |
| 2a | 710000871 | Bulb, 12V 35/35W This part replaces S34901VS1000. |
| 3 | S63100RCA900JF | Rh Head Light Shroud This part replaces S63100RCA900. |
| 5 | S33150RCB900 | LH Head Light |
| 6 | S63150RCA900JF | Lh Head Light Shroud Bk-002C This part replaces S63150RCA900. |
| 7 | S33101RCA000 | Spring |
| 8 | S9410105700 | Washer 5 mm |
| 9 | S90110RCA000 | Special Bolt 6 mm |
| 10 | S90301RCA000 | Clip Nut |
| 11 | S90303RCA000 | Clip Nut |
| 12 | S93500050550G | PAN SCREW M5 X 55 - Call your local BRP dealership |
| 13 | S934040602807 | Washer Bolt M6 X 25 |
