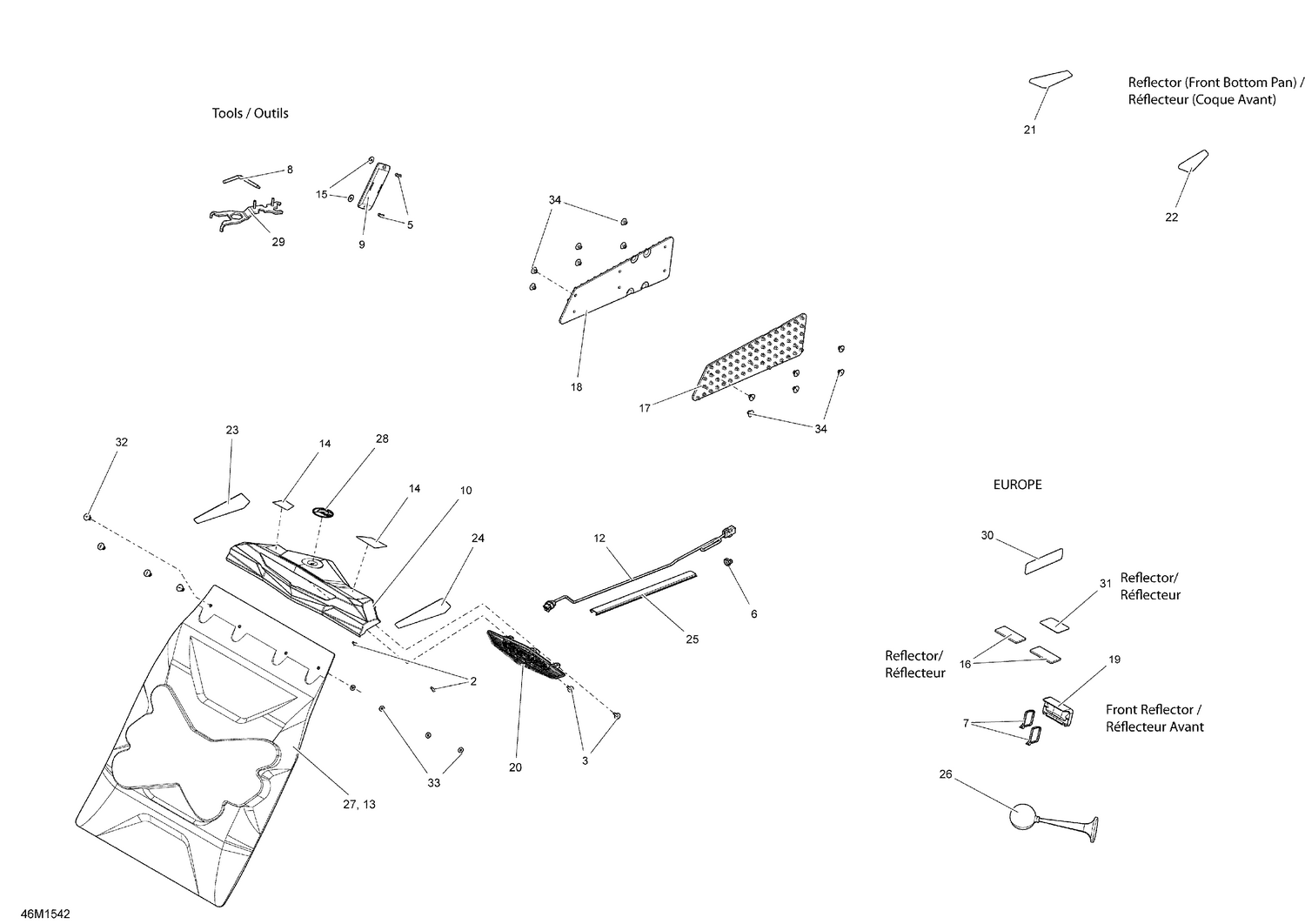

09- Utilities _46M1542
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 241141340 | Hex. Screw K40 X 13 |
| 3 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 5 | 293150008 | Pop Rivet 3/16" |
| 6 | 293750002 | Tie Wrap 142 mm |
| 7 | 293750018 | Tie Rap 371 mm |
| 8 | 417127044 | Belt Installation Tool |
| 9 | 510004350 | LENS - Call your local BRP dealership |
| 10 | 511000810 | Deep Black, Light Fairing |
| 12 | 515177275 | Wiring Harness Ass'y |
| 13 | 516003647 | Decal X |
| 14 | 516005058 | Warning Decal, Safety |
| 14 | 516006914 | Security Label, XS |
| 15 | 517124300 | Washer |
| 16 | 520000271 | Amber, Reflector |
| 17 | 860200164 | Grip Plate Kit |
| 18 | 860200164 | Grip Plate Kit |
| 19 | 520000871 | Deep Black, Reflector Support |
| 20 | 520001143 | Rear Light |
| 21 | 520001236 | Yellow, LH Front Reflector |
| 22 | 520001237 | Yellow, RH Front Reflector |
| 25 | 520000829 | Radiator Trim |
| 26 | 549011291 | Horn |
| 27 | 520001441 | Snow Flap |
| 28 | 219903947 | BRP Logo 48 mm |
| 29 | 520001499 | Wrench |
| 30 | 516006804 | CE Decal |
| 31 | 415037900 | White, Reflector |
| 32 | 293150104 | Pop Rivet 3/16" |
| 33 | 517225900 | Flat Washer |
