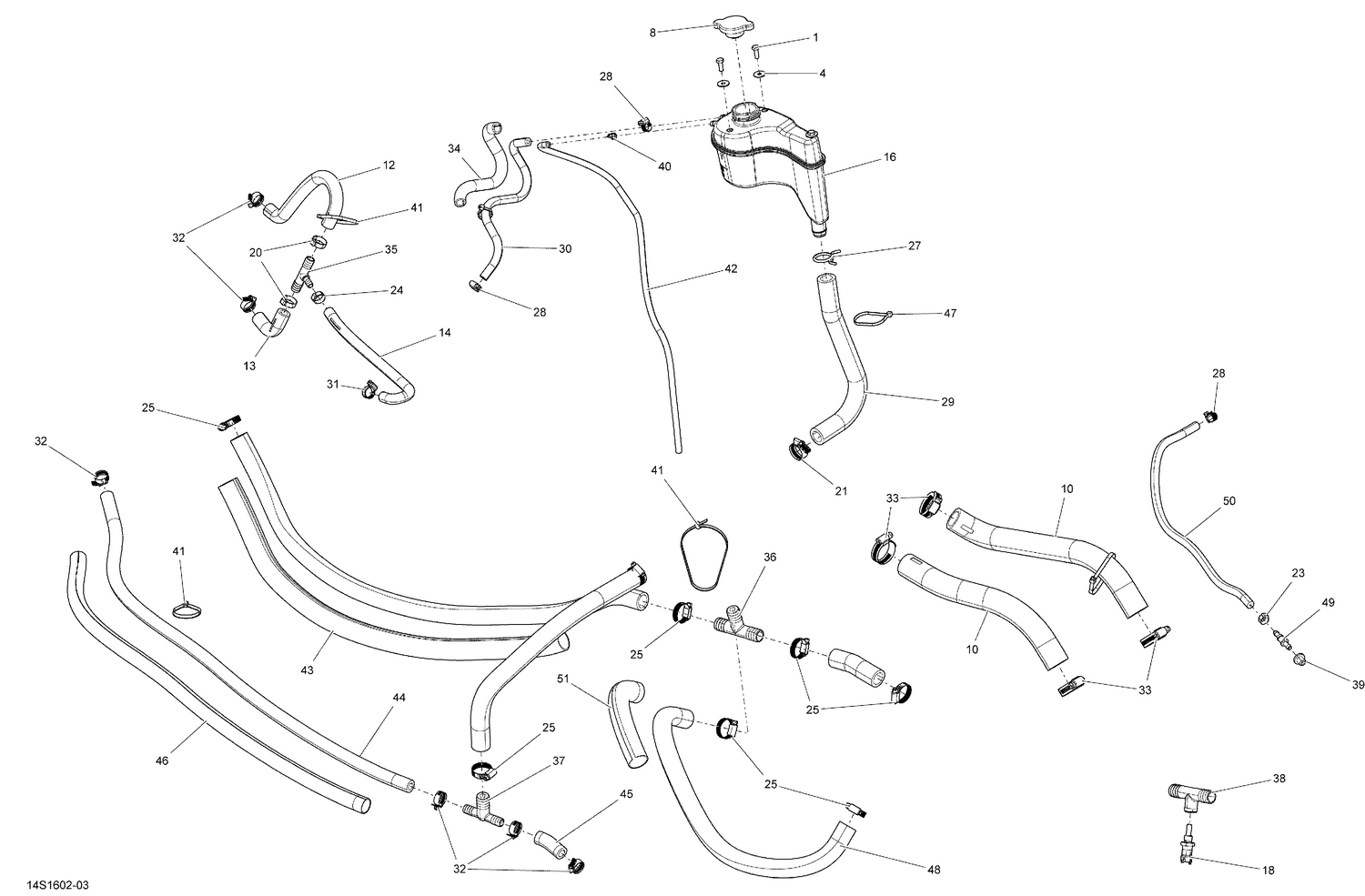

01- Cooling System - Except 300

Ref	Part Number	Description
8	276000100	Pressure Cap
10	276000491	Radiator Hose This part replaces 276000240.
12	276000484	Hose, Bypass Upper This part replaces 276000244.
13	276000455	Hose, Bypass Lower This part replaces 276000245.
14	276000246	Formed Hose
16	276000265	Coolant Tank
18	278002895	Temperature Sensor
20	293650012	Oetiker Clamp
21	293650019	Tridon Gear Clamp
23	293650025	Oetiker Gear Clamp
24	293650030	Oetiker Clamp
25	293650051	Tridon Gear Clamp
27	293650115	Spring Clamp
28	293650170	Tridon Gear Clamp
29	219704361	Hose 19.0Mm. 2000Mm Long
30	219704362	Was 276000394 Hose 6.4 mm
31	293650171	Tridon Gear Clamp
32	293650172	Tridon Gear Clamp
33	293650185	Tridon Gear Clamp
34	219704400	Was 409901800 Tubing (13 mm)
35	293710116	T-Fitting
36	293710131	T-Fitting
37	293710132	T-Fitting
38	293710143	Sensor Ass'y
39	293720029	Grommet
40	293750001	Tie Wrap 94 mm
41	293750008	Tie Wrap 368 mm
42	219704410	Polyurethane Hose 10000Mm Long
43	219704402	Tubing 25 MM 1000MM Long
44	219704394	Was 276000001 Hose 12.5 mm
45	219704394	Was 276000001 Hose 12.5 mm
46	219704423	Was 515175319 Tubing 22 mm
47	414115200	Tie-Rap 180 mm
48	219704361	Hose 19.0Mm. 2000Mm Long
49	414518500	Male Connector
50	219704362	Was 276000394 Hose 6.4 mm
