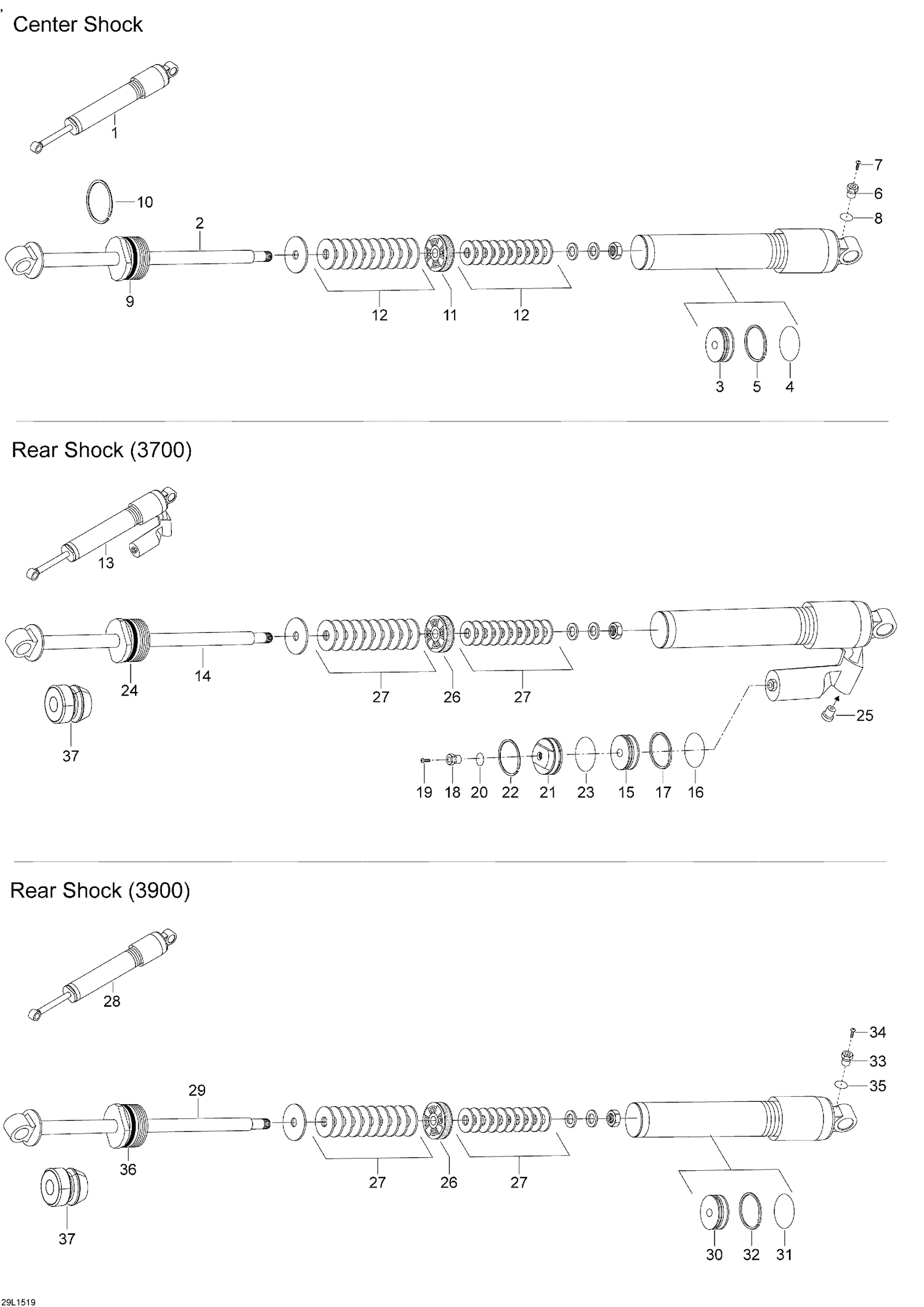

08- Rear Shocks

08- Rear Shocks

Parts (159)

RefPart NumberDescription
1 503193287 Shock
2 Not Available As Spare Part - Rod Ass'y
3 Not Available As Spare Part - Floating Piston
4 414888312 O-Ring
5 503189308 Piston Ring
6 505070398 Air Valve
7 505070399 Screw
8 505070400 O-Ring
9 Not Available As Spare Part - Seal Carrier Ass´y 36mm
10 Not Available As Spare Part - Stop Ring
11 415128848 Piston 36 mm, 1 x 0,3 Slits
11 619300071 Piston 36 mm, 3 x 0,3 Slits
11 619300108 Piston 36 mm, 0 x 0,3 Slits
11 619300109 Piston 36 mm, 4 x 0,3 Slits
11 619300110 Piston 36 mm, 6 x 0,3 Slits
11 619300111 Piston 36 mm, 5 x 0,3 Slits
11 619300161 Piston 36 mm, 2 x 0,3 slits
12 230015 Shim 36 mm, 18 x 0,114
12 230016 Shim 36 mm, 18 x 0,254
12 230017 Shim 36 mm, 20 x 0,254
12 230018 Shim 36 mm, 22 x 0,114
12 230019 Shim 36 mm, 22 x 0,254
12 230021 Shim 36 mm, 24 x 0,114
12 230022 Shim 36 mm, 24 x 0,152
12 230023 Shim 36 mm, 24 x 0,203
12 230024 Shim 36 mm, 26 x 0,114
12 230025 Shim 36 mm, 28 x 0,114
12 230026 Shim 36 mm, 28 x 0,254
12 619300058 Shim 36 mm, 17 x 0,254
12 619300075 Shim 36 mm, 12 x 0,152
12 619300076 Shim 36 mm, 13 x 0,114
12 619300077 Shim 36 mm, 13 x 0,152
12 619300078 Shim 36 mm, 13 x 0,203
12 619300079 Shim 36 mm, 13 x 0,254
12 619300080 Shim 36 mm, 14 x 0,114
12 619300081 Shim 36 mm, 14 x 0,152
12 619300082 Shim 36 mm, 14 x 0,203
12 619300083 Shim 36 mm. 14 X 0,254
12 619300084 Shim 36 mm, 16 x 0,114
12 619300085 Shim 36 mm, 17 x 0,114
12 619300086 Shim 36 mm, 17 x 0,152
12 619300087 Shim 36 mm, 17 x 0,203
12 619300088 Shim 36 mm, 19 x 0,114
12 619300089 Shim 36 mm, 19 x 0,152
12 619300090 Shim 36 mm, 19 x 0,203
12 619300091 Shim 36 mm, 19 x 0,254
12 619300092 Shim 36 mm, 21 x 0,152
12 619300093 Shim 36 mm, 21 x 0,203
12 619300094 Shim 36 mm, 21 x 0,254
12 619300095 Shim 36 mm, 24 x 0,254
12 619300096 Shim 36 mm, 28 x 0,152
12 619300098 Shim 36 mm, 22 x 0,203
12 619300099 Shim 36 mm, 26 x 0,254
12 619300102 Shim 36 mm, 28 x 0,203
12 619300104 Shim 36 mm, 30 x 0,152
12 619300113 Shim 36 mm, 30 x 0,254
12 619300114 Shim 36 mm, 16 x 0,152
12 619300115 Shim 36 mm, 15 x 0,152
12 619300116 Shim 36 mm, 16 x 0,254
12 619300117 Shim 36 mm, 12 x 0,203
12 619300118 Shim 36 mm, 15 x 0,254
12 619300119 Shim 36 mm, 16 x 0,203
12 619300120 Shim 36 mm, 12 x 0,254
12 619300121 Shim 36 mm, 15 x 0,114
12 619300122 Shim 36 mm, 15 x 0,203
12 619300123 Shim 36 mm, 18 x 0,152
12 619300124 Shim 36 mm, 18 x 0,203
12 619300125 Shim 36 mm, 20 x 0,114
12 619300126 Shim 36 mm, 20 x 0,152
12 619300127 Shim 36 mm, 20 x 0,203
12 619300128 Shim 36 mm, 21 x 0,114
12 619300129 Shim 36 mm, 22 x 0,152
12 619300130 Shim 36 mm, 26 x 0,152
12 619300131 Shim 36 mm, 26 x 0,203
12 619300132 Shim 36 mm, 30 x 0,203
12 619300162 Shim 36 mm, 12 x 0,114
14 Not Available As Spare Part - Rod Ass'y
15 619300007 Floating Piston
16 415093807 O-Ring
17 415093806 Piston Ring
18 505070398 Air Valve
19 505070399 Screw
20 505070400 O-Ring
21 619300009 Seal Carrier Ass´y
22 619300006 Stop Ring
23 415093804 O-Ring
24 619300019 Seal Carrier Ass´y 46mm
25 619300015 Valve Ass´y
26 230039 Piston 46 mm, 2.0 mm
26 230043 Piston 46 mm, 0 mm
26 619300159 Piston 46 mm, 1.2 mm
26 619300160 Piston 46 mm, 1.7 mm
26 Not Available As Spare Part - Piston 46 mm, 2.2 mm
27 230029 Shim 40/46 mm, 20 x 0,114
27 230030 Shim 40/46 mm, 20 x 0,152
27 230031 Shim 40/46 mm, 20 x 0,203
27 230032 Shim 40/46 mm, 20 x 0,254
27 230033 Shim 40/46 mm, 34 x 0,114
27 230034 Shim 40/46 mm, 34 x 0,152
27 230035 Shim 40/46 mm, 34 x 0,203
27 230036 Shim 40/46 mm, 34 x 0,254
27 230037 Shim 40/46 mm, 36 x 0,114
27 230040 Shim 40/46 mm, 38 x 0,152
27 230041 Shim 40/46 mm, 38 x 0,203
27 230042 Shim 40/46 mm, 38 x 0,254
27 230082 Shim 40/46 mm, 32 x 0,114
27 503189038 Shim 40/46 mm, 36 x 0,254
27 619300022 Shim 40/46 mm, 32 x 0,305
27 619300056 Shim 40/46 mm, 30 x 0,305
27 619300059 Shim 40/46 mm, 32 x 0,254
27 619300060 Shim 40/46 mm, 17 x 0,114
27 619300067 Shim 40/46 mm, 18 x 0,152
27 619300068 Shim 40/46 mm, 18 x 0,114
27 619300069 Shim 40/46 mm, 17 x 0,203
27 619300070 Shim 40/46 mm, 34 x 0,305
27 619300095 Shim 40/46 mm, 24 x 0,254
27 619300097 Shim 40/46 mm, 20 x 0,305
27 619300098 Shim 40/46 mm, 22 x 0,203
27 619300099 Shim 40/46 mm, 26 x 0,254
27 619300100 Shim 40/46 mm, 26 x 0,305
27 619300101 Shim 40/46 mm, 28 x 0,114
27 619300102 Shim 40/46 mm, 28 x 0,203
27 619300103 Shim 40/46 mm, 28 x 0,254
27 619300104 Shim 40/46 mm, 30 x 0,152
27 619300105 Shim 40/46 mm, 36 x 0,305
27 619300106 Shim 40/46 mm, 38 x 0,305
27 619300107 Shim 40/46 mm, 40 x 0,305
27 619300112 Shim 40/46 mm, 40 x 0,203
27 619300113 Shim 40/46 mm, 30 x 0,254
27 619300134 Shim 40/46 mm, 22 x 0,254
27 619300137 Shim 40/46 mm, 32 x 0,152
27 619300138 Shim 40/46 mm, 32 x 0,203
27 619300140 Shim 40/46 mm, 22 x 0,152
27 619300141 Shim 40/46 mm, 26 x 0,152
27 619300142 Shim 40/46 mm, 36 x 0,203
27 619300143 Shim 40/46 mm, 22 x 0,114
27 619300144 Shim 40/46 mm, 22 x 0,305
27 619300145 Shim 40/46 mm, 24 x 0,114
27 619300146 Shim 40/46 mm, 24 x 0,152
27 619300147 Shim 40/46 mm, 24 x 0,203
27 619300148 Shim 40/46 mm, 24 x 0,305
27 619300149 Shim 40/46 mm, 26 x 0,114
27 619300150 Shim 40/46 mm, 26 x 0,203
27 619300151 Shim 40/46 mm, 28 x 0,152
27 619300152 Shim 40/46 mm, 28 x 0,305
27 619300153 Shim 40/46 mm, 30 x 0,114
27 619300154 Shim 40/46 mm, 30 x 0,203
27 619300155 Shim 40/46 mm, 36 x 0,152
27 619300157 Shim 40/46 mm, 40 x 0,152
27 619300158 Shim 40/46 mm, 40 x 0,254
27 Not Available As Spare Part - Shim 40/46 mm, 17 x 0,152
29 Not Available As Spare Part - Rod Ass'y
30 503189008 FLOTTING PISTON - Call your local BRP dealership
31 503189007 O-RING - Call your local BRP dealership
32 503189006 PISTON RING - Call your local BRP dealership
33 505070398 Air Valve
34 505070399 Screw
35 505070400 O-Ring
36 230060 Seal Carrier Ass´y 46mm
