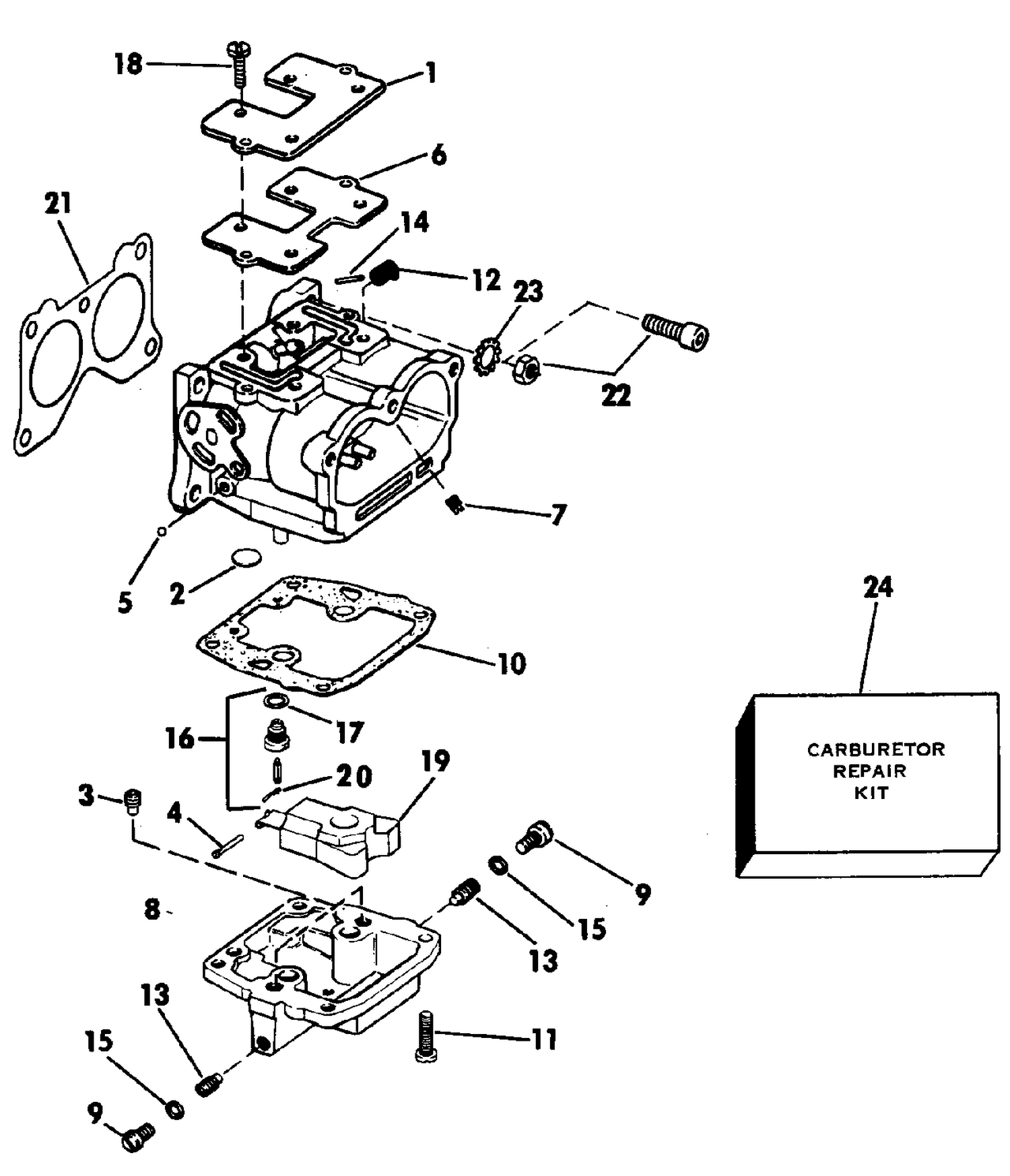

| Ref | Part Number | Description |
|---|
| 1 |
0334352 |
COVER, Idle channel This part replaces 0330132. |
| 3 |
0333460 |
ORIFICE, Intermediate No. 27C |
| 6 |
0334353 |
GASKET, Cover This part replaces 0327931. |
| 8 |
0398544 |
FLOAT CHAMBER ASSY. |
| 10 |
0338884 |
GASKET, Float bowl This part replaces 0333418. |
| 13 |
0317021 |
ORIFICE PLUG (57C) |
| 18 |
0333750 |
SCREW, Cover |
| 19 |
0383437 |
FLOAT ASSEMBLY |
| 20 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 21 |
0327707 |
GASKET, Air silencer |
| 22 |
0203023 |
SCREW, Bracket to upper carb. |
| 22 |
0328742 |
NUT |
| 0398566 |
0398566 |
CARB ASSY. |
| 0432125 |
0432125 |
CARB ASSY., 100STL models |
