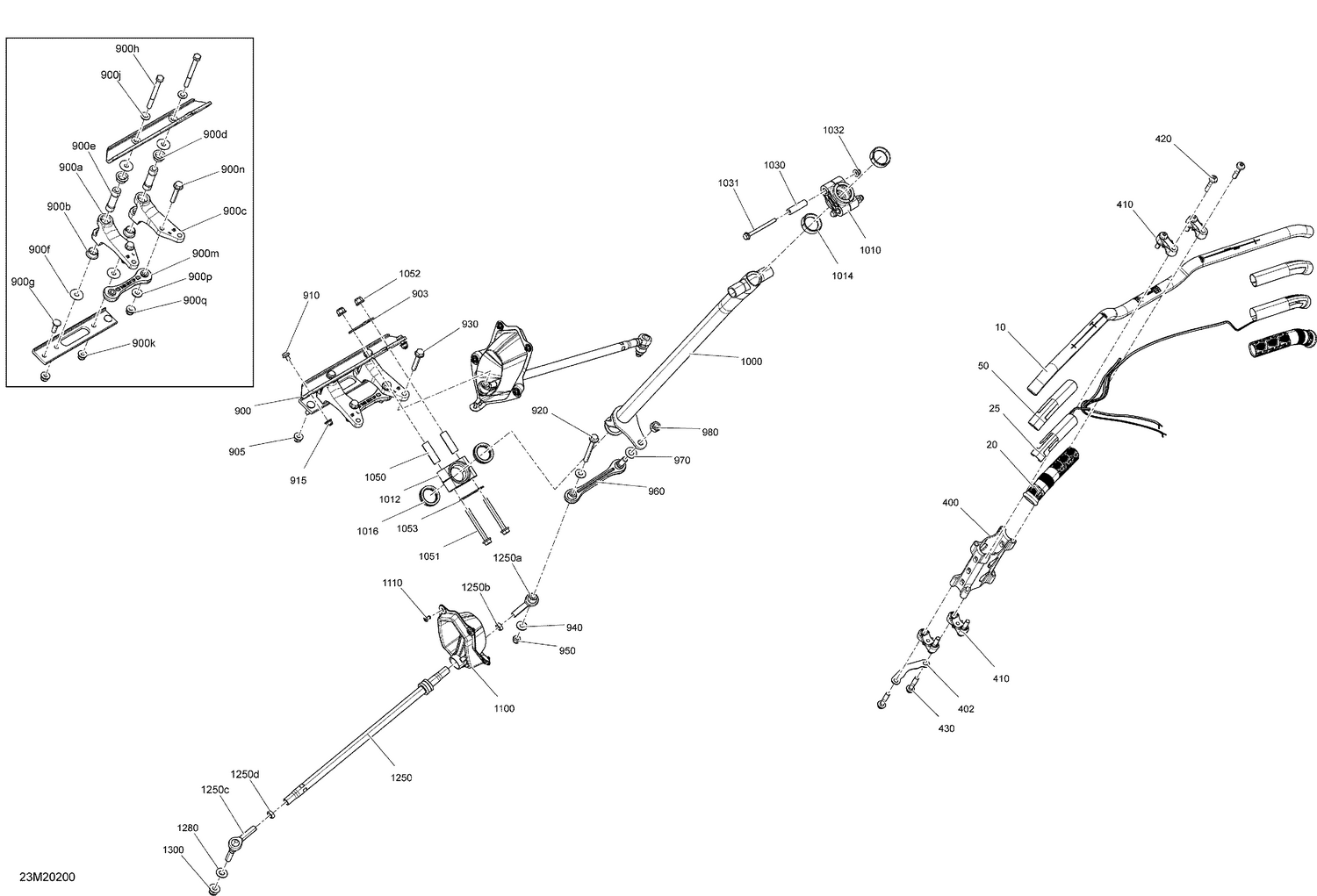

06- Steering - System - Iron Dog

Parts (50)

Ref	Part Number	Description
10	506153117	Can-Am Red, Handle Bar
20	506152560	Grip 148mm
25	506152856	Heated Film
50	506153176	Thermal Insulation
400	860201427	Riser Kit 120 This part replaces 506152881.
402	506153028	Steering Stopper
410	506152894	Steering Support
420	250000904	Button Head Torx Screw M8 X 38
430	250000852	Hex. Flange Screw M8 X 1.25 x 40
900b	503194671	Bushing
900d	503194671	Bushing
900e	506152792	Swivel Pivot
900g	250300038	Clinch Stud
900h	207088544	HEX. SCREW M8 X 85 - Call your local BRP dealership
900j	503192494	Washer
900k	233281466	Elastic Flange Nut M8
900m	506152755	Ball Joint
900n	250001028	Hex. Flange Screw M6 X 45
900p	506151245	Washer
900q	233281466	Elastic Flange Nut M8
903	506153157	Steering Stopper
905	233281416	Hex. Elastic Flange Nut M8
910	207662044	Hex. Flange Screw M6 X 20
915	233261414	Hex. Flange Elastic Nut M6 x 1.0
920	207686544	Hex. Flange Screw, M8 X 65
930	207684544	Hex. Flange Screw M8 X 45
940	506151245	Washer
950	232581414	Hex. Elastic Stop Nut M8
960	506152753	Ball Joint
970	506152582	Washer
980	232500416	Elastic Stop Nut M10
1000	506153026	Main Tube
1010	506152219	Upper Half Housing
1012	506153048	Lower Half Housing
1014	506152292	Upper Vibration Ring
1016	506152518	Lower Vibration Ring
1030	506152297	Housing Bushing
1031	250001114	Hex. Flange Screw M6 x 75
1032	233261416	Elastic Flange Nut M6 X 1.0
1050	506152937	Housing Bushing
1051	207687044	Hex. Flange Screw M8 X 70
1052	233281416	Hex. Elastic Flange Nut M8
1053	506152938	Stopper Plate
1100	506153294	Cap This part replaces 506153109.
1110	293150008	Pop Rivet 3/16"
1250a	506152344	LH Threaded Ball Joint
1250b	250100016	LH Threaded Hex. Jam Nut M10
1250c	506152684	RH Threaded Ball Joint
1250d	732610010	RH Threaded Hex. Jam Nut M10
1280	506152582	Washer
