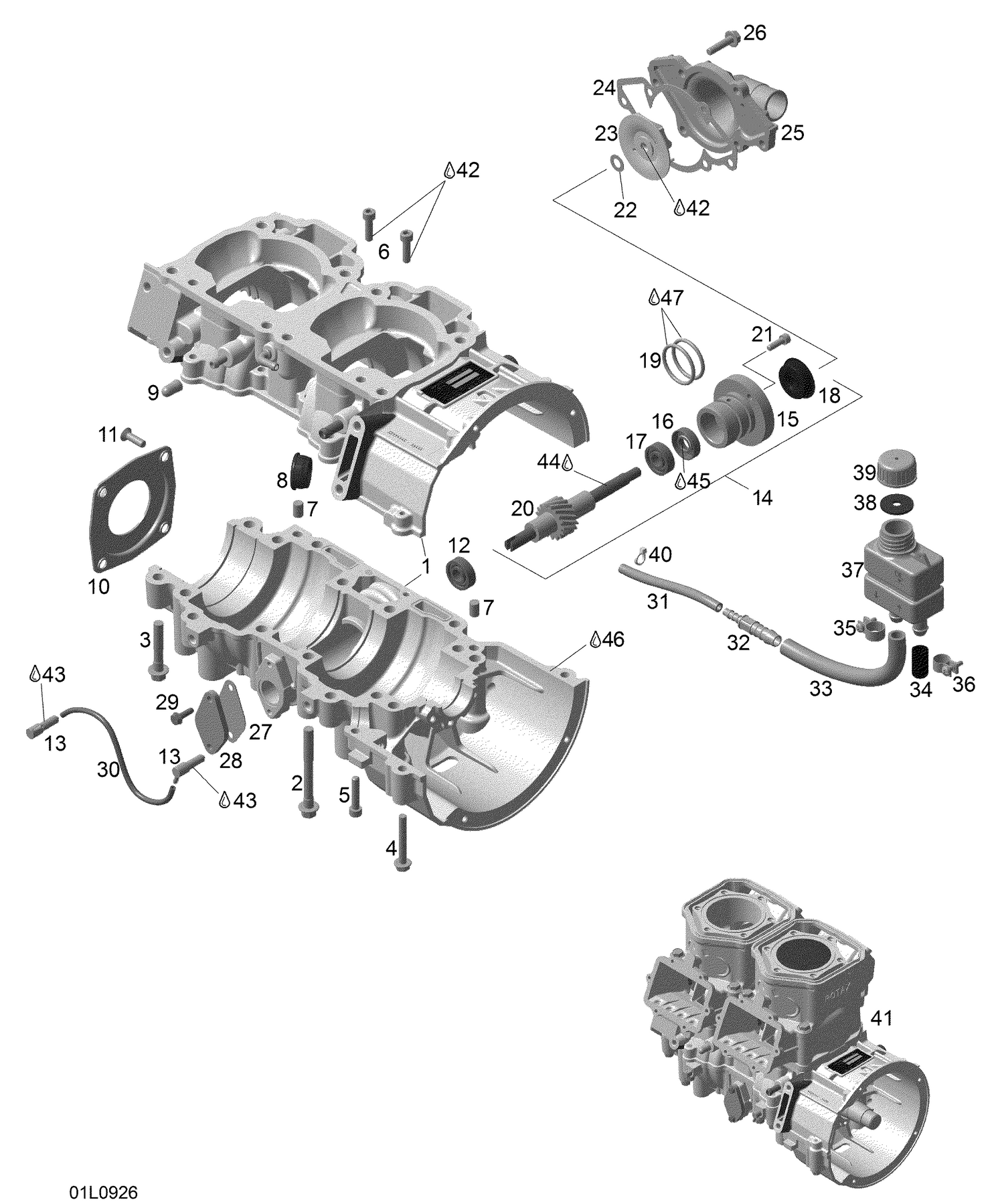

01- Crankcase

01- Crankcase

Parts (43)

RefPart NumberDescription
2 420640836 Screw M8 x 75
3 420640433 Collar Hex Screw M8 X 45 This part replaces 420640431.
4 420640312 Hex. Collar Screw M6 X 45 This part replaces 420640311.
5 205063044 Allen screw M6 x 30
6 420840403 Socket Head Screw M6 X 22 This part replaces 420840401.
7 420632010 Center Pin 8 X 12
8 420860965 Cable grommet
9 420960770 Closure cap
10 420812422 Oil Seal Cover This part replaces 420812420.
11 420941436 Screw M6 X 20
12 420232100 Ball Bearing
13 420956511 Check Valve This part replaces 420956510.
14 420837421 Waterpump/oilpump shaft
16 420230195 Oil seal This part replaces 420230196.
17 420232100 Ball Bearing
18 420650371 Rotary Seal This part replaces 420650370.
19 420950890 O-Ring
20 Not Available As Spare Part - Waterpump/oilpump shaft
21 420840514 Allen Screw M5 x 16 This part replaces 420840511.
22 420227945 Thrust washer
23 420222505 Impeller
24 420931811 Gasket This part replaces 420931810.
25 420922630 Pump housing
26 420240034 Hex. Screw M6 x 25 This part replaces 420240031.
27 420931568 Joint *Gasket This part replaces 420931566.
28 420810827 Cover Plate This part replaces 420810825.
29 420941928 Taptite Screw M5 X 16 This part replaces 420941925.
30 414413800 Oil line
31 415110000 Oil line
32 420874370 Reduction fitting
33 420956239 OIL TUBE - Call your local BRP dealership
34 420960279 Cap
35 420951260 CLAMP - Call your local BRP dealership
36 420951241 CLAMP - Call your local BRP dealership This part replaces 420951240.
38 420850350 Gasket
39 420956250 Oil Tank Cap
40 420866710 Tie-Wrap 142x2.5 mm
41 300059320 Short block engine
42 293800060 Loctite 243, 10ml
43 219703000 Sealant Loctite 648 This part replaces 413711400.
44 779120 NEEDS DESCRIPTION This part replaces 413803000.
45 420899271 Klueber petamo, 250gr.
46 420297907 Sealing Compound Loctite 5366 310Ml This part replaces 420297906.
