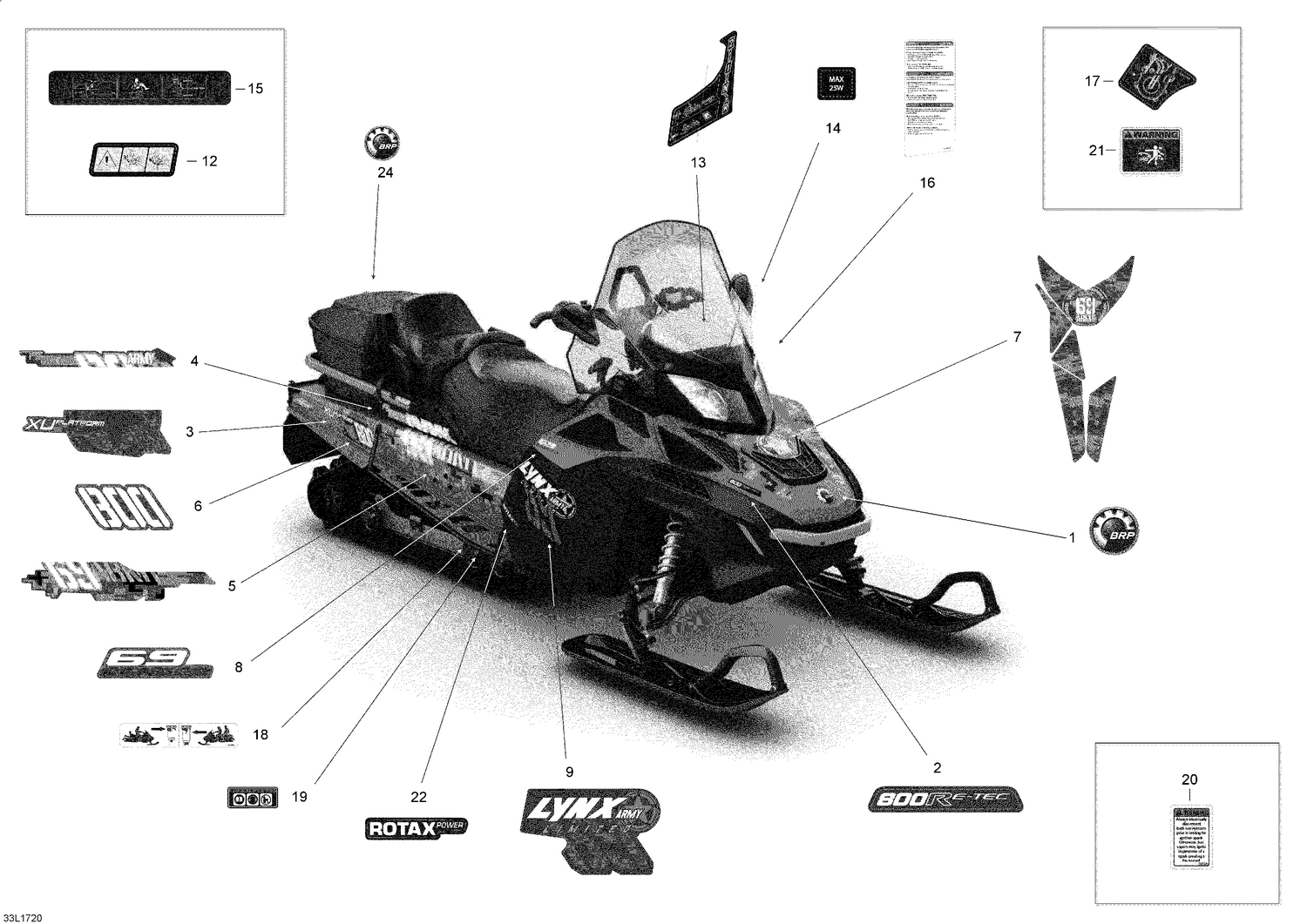

09- Decals
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516008739 | Logo 68mm "BRP" This part replaces 516006888. |
| 2 | 516007157 | Rotax 800R E-TEC Hood Decal |
| 3 | 516007150 | LH Frame Decal |
| 3 | 516007151 | RH Frame Decal |
| 4 | 516007148 | LH Storage Box Decal |
| 4 | 516007149 | RH Storage Box Decal |
| 5 | 516007146 | LH Frame Decal |
| 5 | 516007147 | RH Frame Decal |
| 7 | 516007574 | Hood Decal |
| 8 | 516007575 | Acces Panel Decal |
| 9 | 516007576 | Side Panel Decal |
| 12 | 516005111 | Instruction Decal, Back Seat Locking |
| 13 | 516004294 | Instruction Decal |
| 14 | 516003918 | Power Outlet Decal (25W) |
| 15 | 516003886 | WARNING DECAL, TOWING - Call your local BRP dealership |
| 16 | 516006403 | Instruction/Warning Decal, FI/SWE/EN |
| 17 | 516003925 | Checking Label, Transmission |
| 18 | 516003888 | Suspension Adjustment Decal |
| 19 | 516002703 | Decal, Europe |
| 20 | 516005583 | WARNING DECAL, INJECTORS - Call your local BRP dealership |
| 21 | 516007584 | Warning Decal |
| 22 | 516006331 | Rotax Power Decal |
