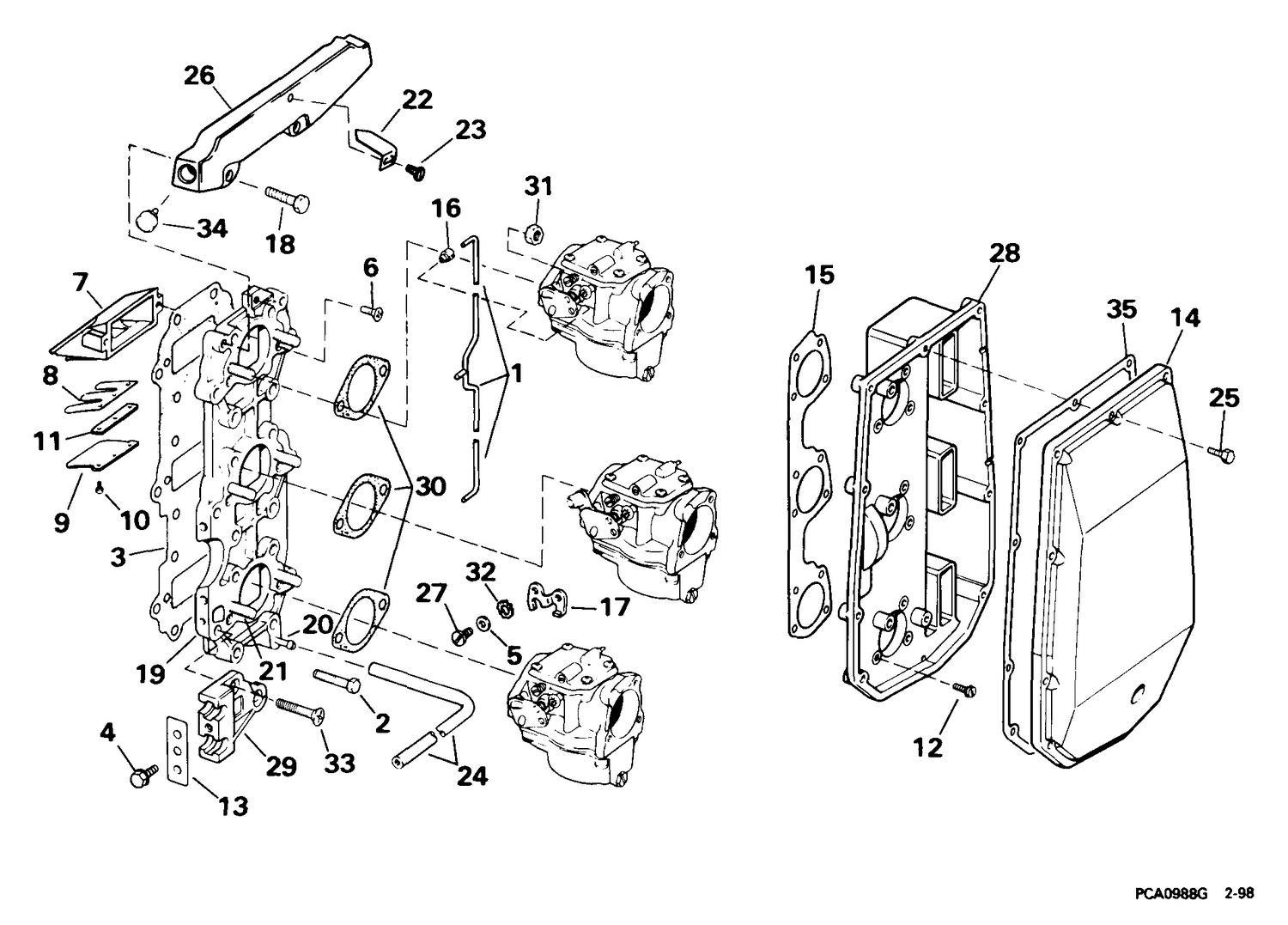

| Ref | Part Number | Description |
|---|
| 1 |
0432271 |
LINK & PIN, Middle arm |
| 2 |
0554306 |
SCREW, Cyl. to crankcase |
| 3 |
0326926 |
GASKET, Plat to manifold |
| 4 |
0335200 |
VIS, capteur position de vilebrequin vers support |
| 6 |
0316116 |
SCREW |
| 7 |
0389731 |
LEAF PLATE ASSEMBLY |
| 14 |
0388264 |
COVER, Air silencer |
| 15 |
0333008 |
GASKET, Air silencer |
| 16 |
0318165 |
DISPOSITIF DE RETENUE, tringlerie de carburateur |
| 17 |
0329418 |
LEVER, Synchronization adj. |
| 18 |
0909533 |
SCREW, Pressure relief valve cover |
| 19 |
0434126 |
MANIFOLD, Intake |
| 22 |
0339775 |
TIMING POINTER |
| 23 |
0306014 |
VIS, ancrage |
| 24 |
HOSE, |
Air silencer to manifold, 5 in. (125mm) |
| 26 |
0339776 |
BRACKET, Engine cover |
| 27 |
0306014 |
VIS, ancrage |
| 28 |
0333009 |
BASE ASSEMBLY |
| 29 |
0332683 |
ANCHOR BLOCK |
| 30 |
0325092 |
GASKET |
| 31 |
0316355 |
BUT, Carburetor mounting |
| 33 |
0324315 |
SCREW, Anchor block |
| 34 |
0314021 |
BUMBER, Exhaust manifold |
