Home / BRP / STERN DRIVE / 1996 / 5 / 50FAPNCA 1996 / UPPER INTAKE MANIFOLD - 5.0 LITRE

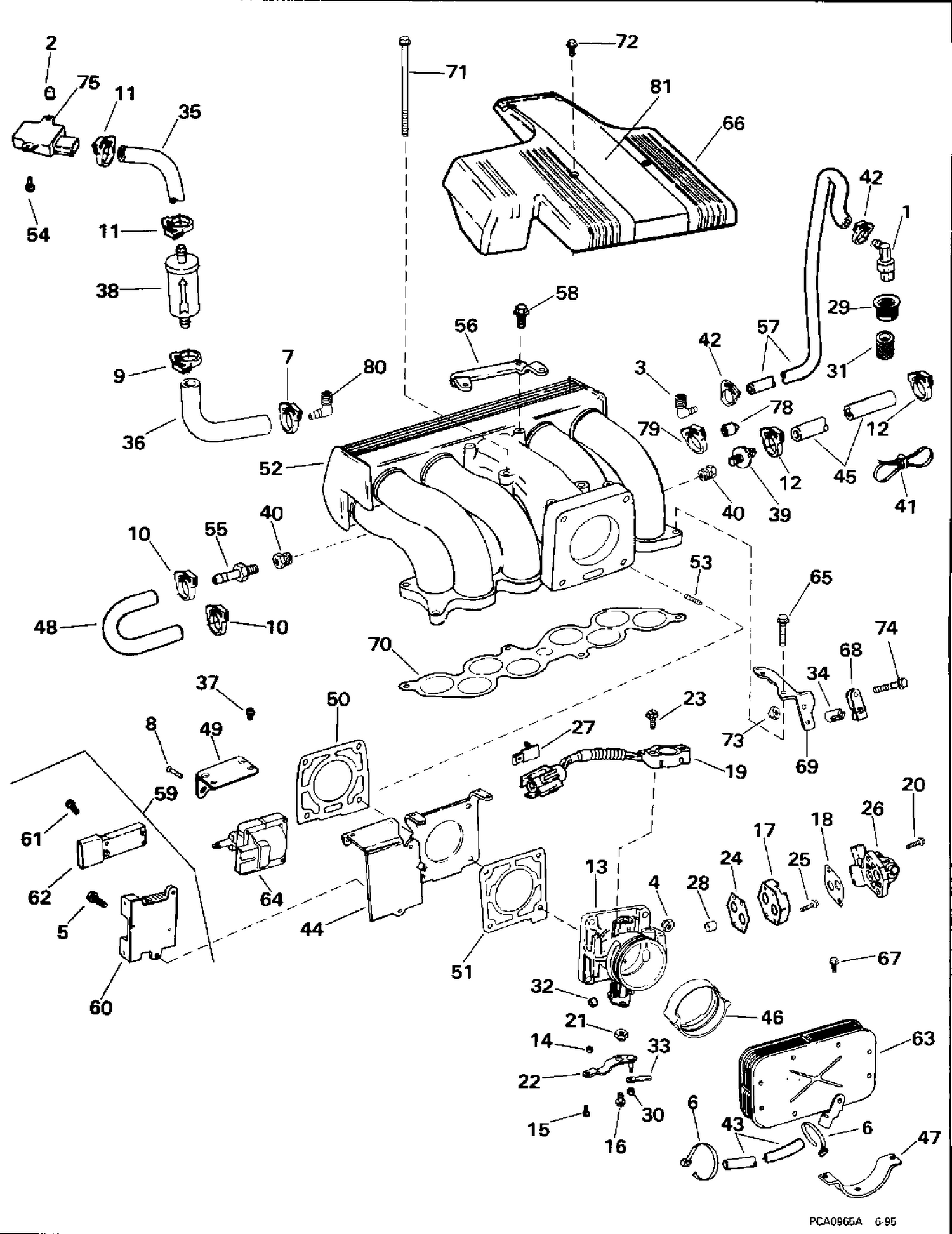

UPPER INTAKE MANIFOLD - 5.0 LITRE

UPPER INTAKE MANIFOLD - 5.0 LITRE

Parts (63)

RefPart NumberDescription
1 3852820 PCV VALVE
2 3853537 CAP, Breaker assy
3 0174177 ELBOW KIT This part replaces 3852480.
4 0316355 BUT, Carburetor mounting This part replaces 3852142.
6 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 3852158.
8 0321219 VIS, vis de fixation This part replaces 3852168.
10 0322653 CLAMP This part replaces 3852171.
13 3854277 THROTTLE BODY ASSY.
16 0335200 VIS, capteur position de vilebrequin vers support This part replaces 3852212.
17 3853612 ADAPTER, Air bypass solenoid
18 3853613 GASKET, Adapter to solenoid
19 3850988 THROTTLE POSITION SENSOR
20 3853614 SCREW, Air by-pass solenoid
21 3853627 NUT, Throttle lever
22 3850353 LEVER & PIN, Throttle body
23 3850986 SCREW, Throttle sensor
24 3853613 GASKET, Adapter to solenoid
25 3853614 SCREW, Air by-pass solenoid
26 3850987 VALVE, Throttle air by-pass
27 3853734 CLIP, Connector
28 3853748 FILTER, Noise suppressor
29 3853767 GROMMET, PCV valve
30 3853729 NUT, Lever to bracket
31 3853768 ELEMENT, Crankcase vent
32 3853772 CAP, Idle screw
33 3850950 ANCHOR, Cable
34 3852019 TRUNNION, S.A.E. Cable
35 HOSE, MAP sensor to filter
36 3853641 HOSE, Filter to intake manifold
37 0335200 VIS, capteur position de vilebrequin vers support This part replaces 3852212.
38 0398327 FILTER, MAP sensor This part replaces 3852224.
40 3852465 BUSHING
43 3853723 HOSE, Valve cover to arrestor
44 3853763 BRACKET, TFI module & E-coil
45 3853582 HOSE, Reservoir to pulse limiter
46 3853594 GROMMET, Flame arrestor
47 3853595 CLAMP, Flame arrestor
48 3853619 HOSE, Pressure regulator
49 3853625 BRACKET, E-coil to TFI bracket
50 3853629 GASKET, Bracket to manifold
51 3853630 GASKET, Bracket to throttle body
52 3850777 MANIFOLD ASSY., Upper intake
55 3853639 FITTING, Hose to reducer
56 3853652 BRACKET, Cover
57 HOSE, PCV Valve
59 3854139 MODULE ASSY., TFI
60 3854272 HEAT SINK
61 3854273 SCREW
62 3854274 MODULE, TFI
63 3854144 FLAME ARRESTOR
64 3854161 E-COIL
65 3853638 SCREW, Intake manifold
66 3853571 COVER
67 3853722 SCREW, Flame arrestor clamp
68 3850266 ANCHOR BLOCK
69 3850225 BRACKET, Throttle
70 3853637 GASKET, Upper to lower intake
71 3853635 SCREW, Instake manifold, stbd.
72 3853662 SCREW, Flame arrestor cover
74 0303459 ECREW,Exhaust cover,1-1/2"long This part replaces 3852048.
75 3854160 SENSOR, Manifold air pressure
78 3853745 CAP, Nipple
80 0174177 ELBOW KIT This part replaces 3852480.
