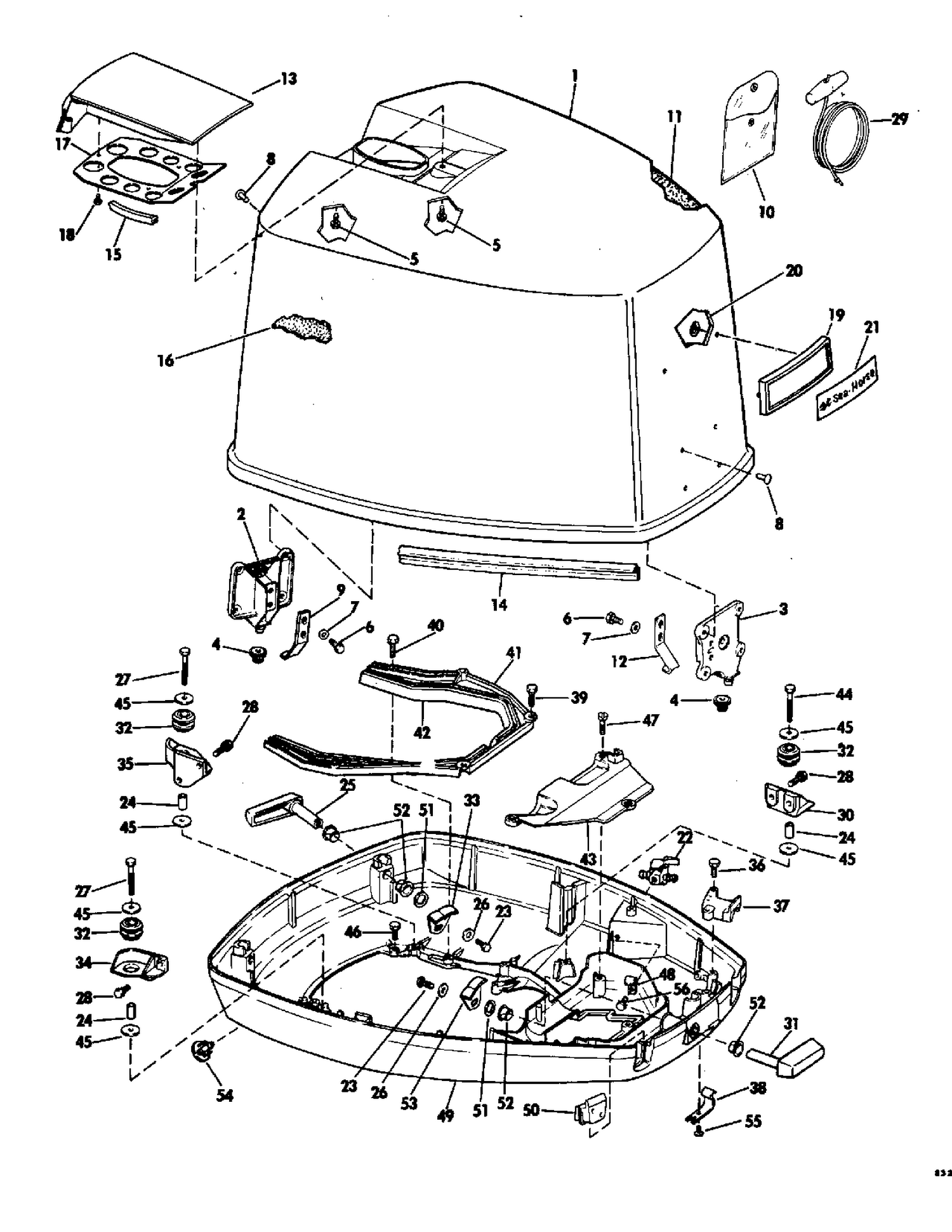

MOTOR COVER-JOHNSON — Parts Catalog

Parts (47)

Ref	Part Number	Description
1	0392698	MOTOR COVER ASSY.,150
1	0392699	MOTOR COVER ASSY.,175
1	0392700	MOTOR COVER ASSY.,200
1	0392701	MOTOR COVER ASSY.,235
2	0394976	LOCATING BRACKET, Rear This part replaces 0389972.
3	0389971	LOCATING BARCKET, Front
7	0306407	LOCCKWASHER,Cover latch
10	0314494	BAG EMERGENCY STARTER ROPE
11	0321256	SOUND BLANKET, Top
12	0323175	HOOK , Motor Cover, Front
14	0328686	SEAL, Engine cover This part replaces 0326508.
16	0325172	SOUND BLANKET, Side
17	0206520	AIR INLET BAFFLE
19	0327851	APPLIQUE
21	0327854	PLATE
22	0393334	CONNECTEUR, carburant - mâle This part replaces 0376154.
22	0393941	FUEL CONNECTOR This part replaces 0393679.
23	0552062	SCREW, Clamp
24	0302406	SLEEVE
25	0383685	LATCH HANDEL ASSY., Rear
27	0303398	VIS, support This part replaces 0302030.
28	0328695	CLAMP, Engine cable This part replaces 0323480.
29	0378347	CORDE DE LANCEUR
30	0315111	SUPPORT, Front
31	0383641	LATCH HANDEL ASSY., Front
32	0316354	ENGINE COVER SUPPORT GROMMET
33	0323169	HOOK, Lower rear port
34	0315113	SUPORT, Stbd, rear
35	0315112	SUPPORT, Port rear
36	0307151	SCREW
37	0318849	CLAMP, Instrument cable
38	0333739	RETAINER, Fuel hose to cover This part replaces 0318313.
39	0328695	CLAMP, Engine cable This part replaces 0323480.
40	0302288	BOLT
41	0392494	FRAME AND SEAL ASSY
42	0318258	SEAL Cover
43	0328358	COVER ASSY. Air entrance
44	0303398	VIS, support This part replaces 0302030.
46	0328695	CLAMP, Engine cable This part replaces 0323480.
47	0328695	CLAMP, Engine cable This part replaces 0323480.
49	0434288	ENGINE COVER, Lower This part replaces 0389591.
50	0320834	GROMMET
53	0323170	HOOK Front and stbd., rear
54	0321885	NIPPLE
55	0310539	SCREW, Clamp choke solenoid
56	0325857	SCREW, Fuel connector
0393261	0393261	DECAL SET
