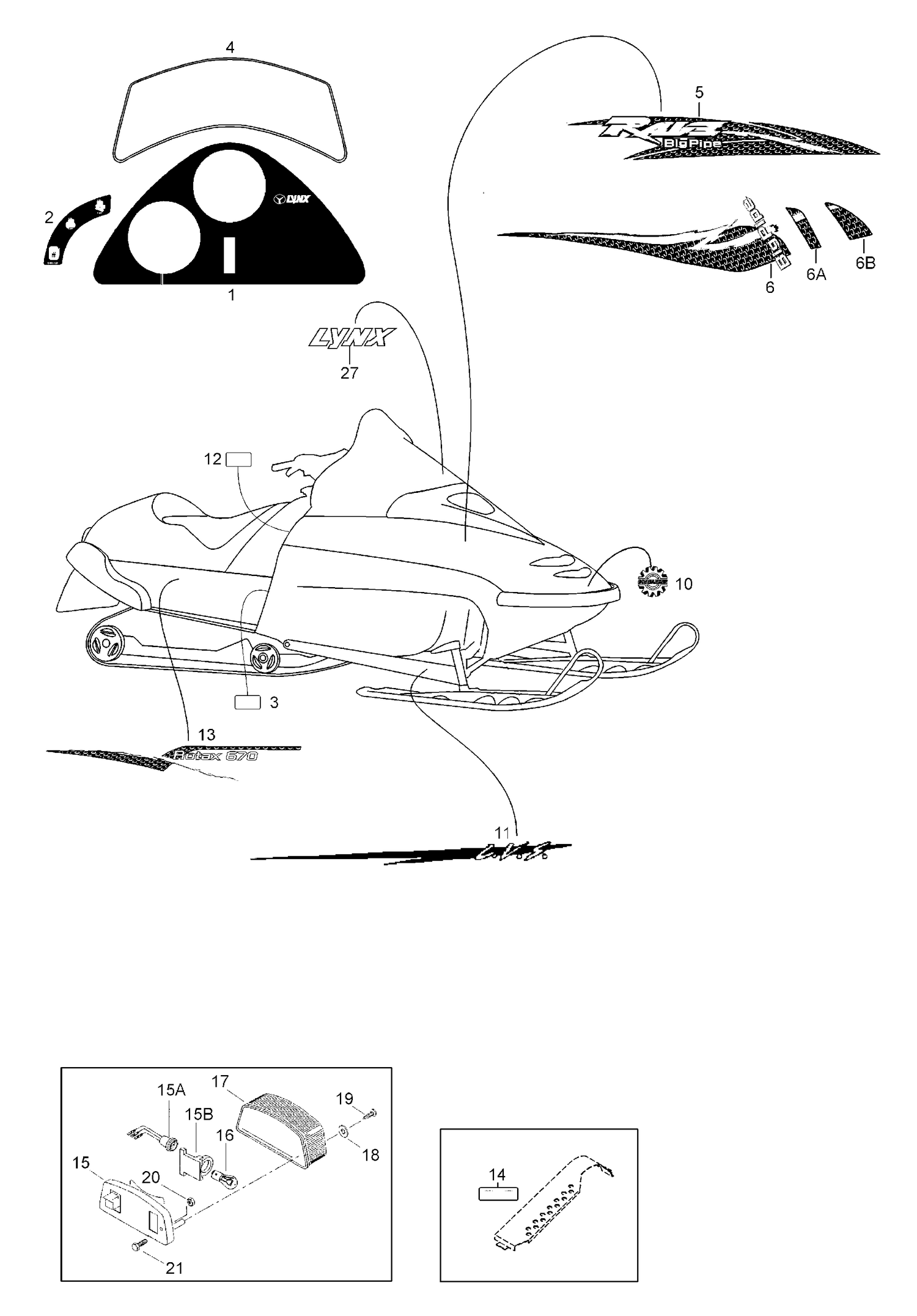

09- Decals
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5241570 | Control panel decal |
| 2 | 5444818 | Grip heater decal |
| 3 | 418002200 | CE-decal |
| 4 | 5241725 | Instruction Decal |
| 5 | 5244546 | RAVE B. P. -decal R.H. |
| 5 | 5244547 | RAVE B. P. -decal L.H. |
| 6 | 5244548 | Hood decal, upper |
| 6A | 5344549 | Hood decal, middle |
| 6B | 5344550 | Hood decal, lower |
| 10 | 516008738 | Logo 48mm "BRP" This part replaces 516000282. |
| 11 | 5244553 | Decal L.V.S. R.H. |
| 11 | 5244554 | Decal L.V.S. L.H. |
| 12 | 544068 | Oil check decal |
| 13 | 5244551 | Framedecal R,H. |
| 13 | 5244552 | Framedecal L.H. |
| 14 | 546820 | Pulley decal |
| 15 | 414979400 | Taillamp housing |
| 15A | 414979400 | Socket |
| 15B | 414979411 | Rubber damper |
| 16 | 520000758 | Bulb This part replaces 410504000. |
| 17 | 414513700 | Lens |
| 18 | 414516400 | Washer - Call your local BRP dealership |
| 19 | 40613 | Screw |
| 20 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 21 | 40002 | Screw M6x40 |
