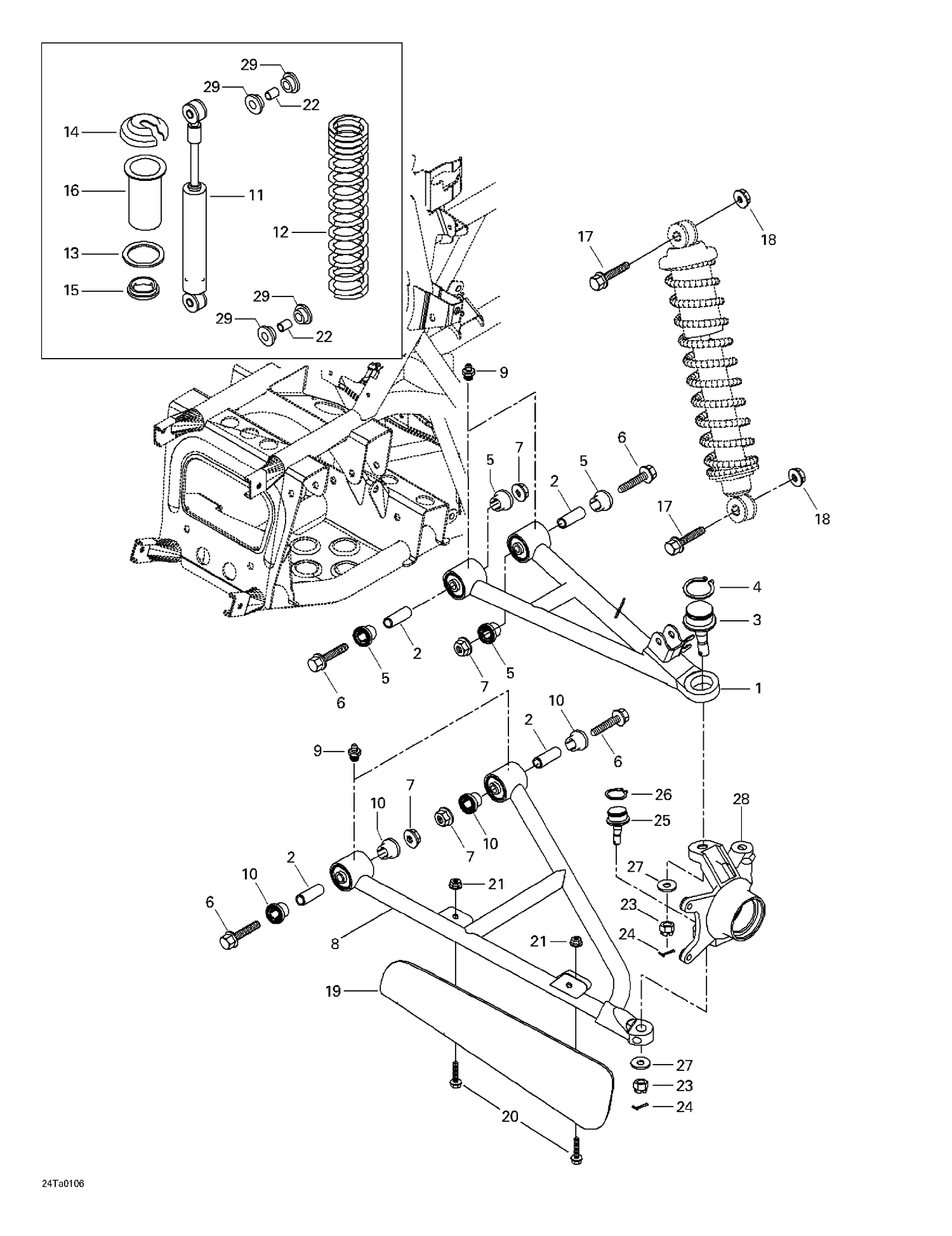

| Ref | Part Number | Description |
|---|
| Not |
Available |
As Spare Part - Knuckle Kit LH (See C2) |
| 2 |
706201587 |
Sleeve This part replaces 706200182. |
| 3 |
706200653 |
Ball Joint This part replaces 706200091. |
| 4 |
293370009 |
Circlip 32 mm |
| 5 |
706200181 |
Bushing |
| 6 |
207607046 |
Hex. Flange Screw M10 X 70 |
| 7 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 9 |
408200700 |
Grease Fitting |
| 10 |
706200181 |
Bushing |
| 11 |
706200137 |
Front Shock |
| 12 |
706200006 |
FRONT SPRING - Call your local BRP dealership |
| 13 |
706000533 |
SPRING SEAT - Call your local BRP dealership This part replaces 706000028. |
| 14 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 15 |
706000007 |
Spring seat |
| 16 |
503139800 |
PROTECTOR - Call your local BRP dealership |
| 17 |
207604544 |
HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership |
| 18 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 20 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 21 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 22 |
706200186 |
BUSHING - Call your local BRP dealership |
| 23 |
232221414 |
Hex. Castellated Nut M12 |
| 24 |
211400017 |
Cotter Pin |
| 25 |
706200653 |
Ball Joint This part replaces 706200091. |
| 26 |
293370009 |
Circlip 32 mm |
| 27 |
503175400 |
Hardened Washer |
| 28 |
Not |
Available As Spare Part - Knuckle Kit RH (See C2) |
