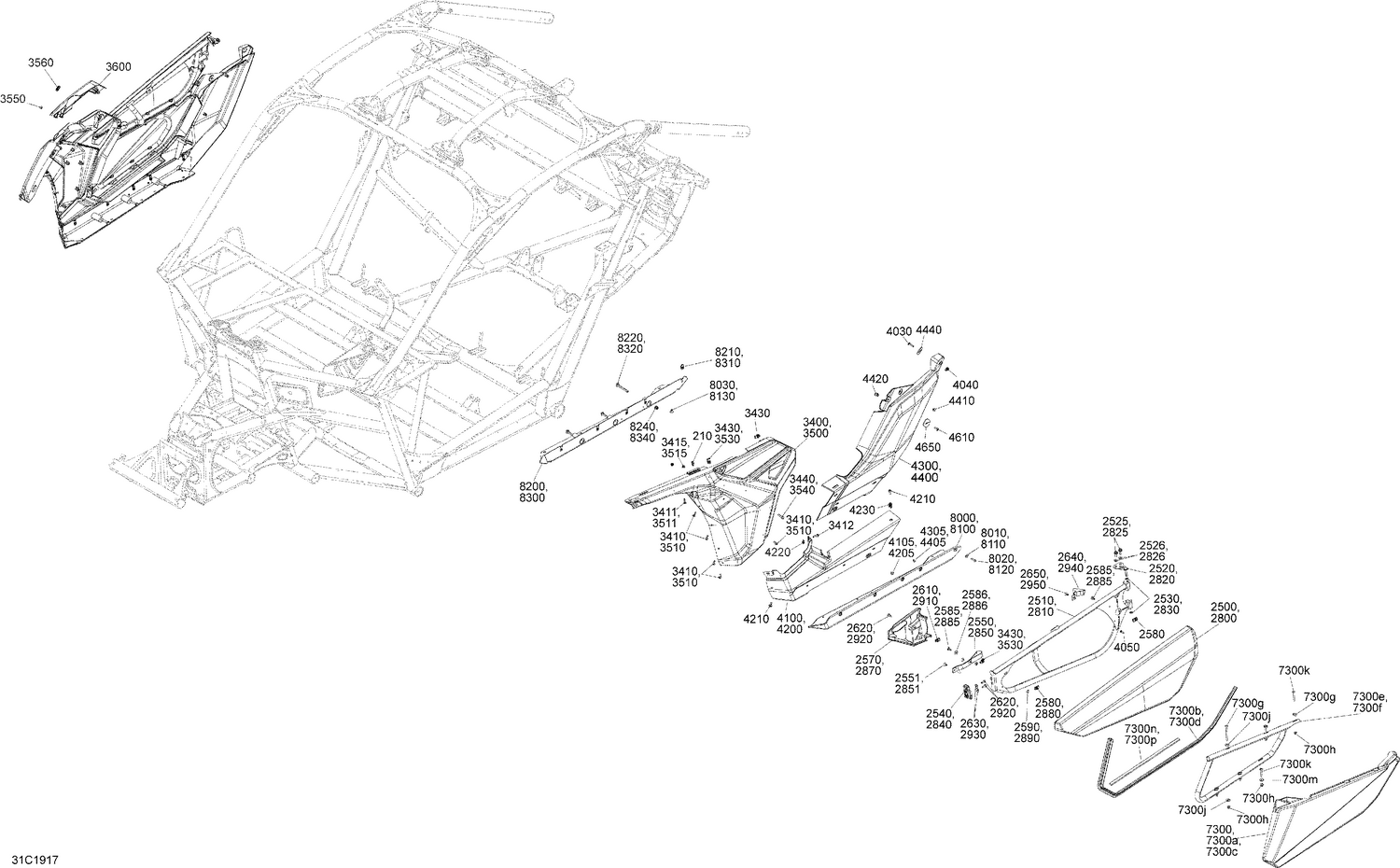

09- Body - Side Section - Carbon Black
Parts (103)
| Ref | Part Number | Description |
|---|---|---|
| 210 | 705010721 | Clip |
| 2500 | 705014333 | Carbon Black, LH Front Door Panel This part replaces 705012472. |
| 2510 | 705017350 | Door Fl B-352 This part replaces 705012547. |
| 2520 | 705011187 | Door Support |
| 2525 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 2526 | 234081430 | Flat Washer M8 |
| 2530 | 234081100 | Flat Washer 8 mm, Nylon |
| 2540 | 705013095 | LH Latch This part replaces 705012183. |
| 2550 | 293850135 | Belt |
| 2551 | 293150103 | Pop Rivet 3/16" |
| 2552 | 293900104 | Bushing |
| 2570 | 705013535 | LH Latch Cover |
| 2580 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2585 | 250000721 | Torx Truss Screw M6 X 16 |
| 2586 | 234062670 | Stainless Steel Flat Washer |
| 2590 | 293150103 | Pop Rivet 3/16" |
| 2610 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2620 | 250000722 | Torx Screw M6 X 20 |
| 2630 | 224061121 | Flat Washer |
| 2640 | 293850129 | Door Belt |
| 2650 | 293150103 | Pop Rivet 3/16" |
| 2800 | 705014339 | Carbon Black, RH Front Door Panel This part replaces 705012473. |
| 2810 | 705012548 | Blue Door Frame RH |
| 2820 | 705011187 | Door Support |
| 2825 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 2826 | 234081430 | Flat Washer M8 |
| 2830 | 234081100 | Flat Washer 8 mm, Nylon |
| 2840 | 705013096 | RH Latch This part replaces 705012184. |
| 2850 | 293850135 | Belt |
| 2851 | 293150103 | Pop Rivet 3/16" |
| 2852 | 293900104 | Bushing |
| 2870 | 705013536 | RH Latch Cover |
| 2880 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2885 | 250000721 | Torx Truss Screw M6 X 16 |
| 2886 | 234062670 | Stainless Steel Flat Washer |
| 2890 | 293150103 | Pop Rivet 3/16" |
| 2910 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2920 | 250000722 | Torx Screw M6 X 20 |
| 2930 | 224061121 | Flat Washer |
| 2940 | 293850129 | Door Belt |
| 2950 | 293150103 | Pop Rivet 3/16" |
| 3400 | 715006594 | Black, LH Front Lateral Panel Kit This part replaces 715004064. |
| 3410 | 250000722 | Torx Screw M6 X 20 |
| 3411 | 250000712 | Torx Screw M6 X 20 |
| 3412 | 250000807 | Torx Truss Screw M6 X 25 |
| 3415 | 233261494 | Hex. Flange Elastic Nut M6 |
| 3430 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 3440 | 250000868 | Torx Truss M6 X 50 |
| 3500 | 715004074 | RH Front Lateral Panel Kit |
| 3510 | 250000722 | Torx Screw M6 X 20 |
| 3511 | 250000712 | Torx Screw M6 X 20 |
| 3515 | 233261494 | Hex. Flange Elastic Nut M6 |
| 3530 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 3540 | 250000868 | Torx Truss M6 X 50 |
| 3550 | 233261494 | Hex. Flange Elastic Nut M6 |
| 3560 | 517303756 | Grommet |
| 3600 | 705017564 | Lateral Cover This part replaces 705010334. |
| 4030 | 250000807 | Torx Truss Screw M6 X 25 |
| 4040 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 4050 | 250000720 | Torx Screw K50 X 16 |
| 4100 | 705012768 | LH Central Lateral Panel |
| 4105 | 293150103 | Pop Rivet 3/16" |
| 4200 | 705017549 | Deep Black, RH Lower Body Panel This part replaces 705012769. |
| 4205 | 293150103 | Pop Rivet 3/16" |
| 4210 | 250000722 | Torx Screw M6 X 20 |
| 4220 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 4230 | 705016606 | Insert This part replaces 705010872. |
| 4300 | 705012770 | LH Rear Lateral Panel |
| 4305 | 293150103 | Pop Rivet 3/16" |
| 4400 | 705012771 | RH Rear Lateral Panel |
| 4405 | 293150103 | Pop Rivet 3/16" |
| 4410 | 293150104 | Pop Rivet 3/16" |
| 4420 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 4440 | 705003841 | Support Plate |
| 4610 | 250000722 | Torx Screw M6 X 20 |
| 4650 | 705003841 | Support Plate |
| 7300a | 705010271 | LH Door Panels |
| 7300b | 705012018 | Door Seal |
| 7300c | 705010272 | RH Door Panels |
| 7300d | 705012018 | Door Seal |
| 7300e | 705012750 | Black, LH Door Frame |
| 7300g | 250000902 | Torx-Truss M/S M6 X 80 |
| 7300h | 233261494 | Hex. Flange Elastic Nut M6 |
| 7300j | 705202223 | Offset Washer |
| 7300k | 250000749 | Torx Truss Screw M6 X 50 |
| 7300m | 234062670 | Stainless Steel Flat Washer |
| 7300n | 219704364 | Neoprene Seal (1PAC=3M) |
| 7300p | 219704364 | Neoprene Seal (1PAC=3M) |
| 8000 | 705012772 | LH Lateral Panel |
| 8010 | 250200164 | Flat washer M6 |
| 8020 | 250000807 | Torx Truss Screw M6 X 25 |
| 8030 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 8100 | 705012773 | RH Lateral Panel |
| 8110 | 250200164 | Flat washer M6 |
| 8120 | 250000807 | Torx Truss Screw M6 X 25 |
| 8130 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 8200 | 705012774 | LH Lateral Structure |
| 8210 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 8220 | 207687044 | Hex. Flange Screw M8 X 70 |
| 8240 | 233281464 | Elastic Flange Nut M8 |
| 8300 | 705012775 | RH Lateral Structure |
| 8310 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 8320 | 207687044 | Hex. Flange Screw M8 X 70 |
