Parts Catalog

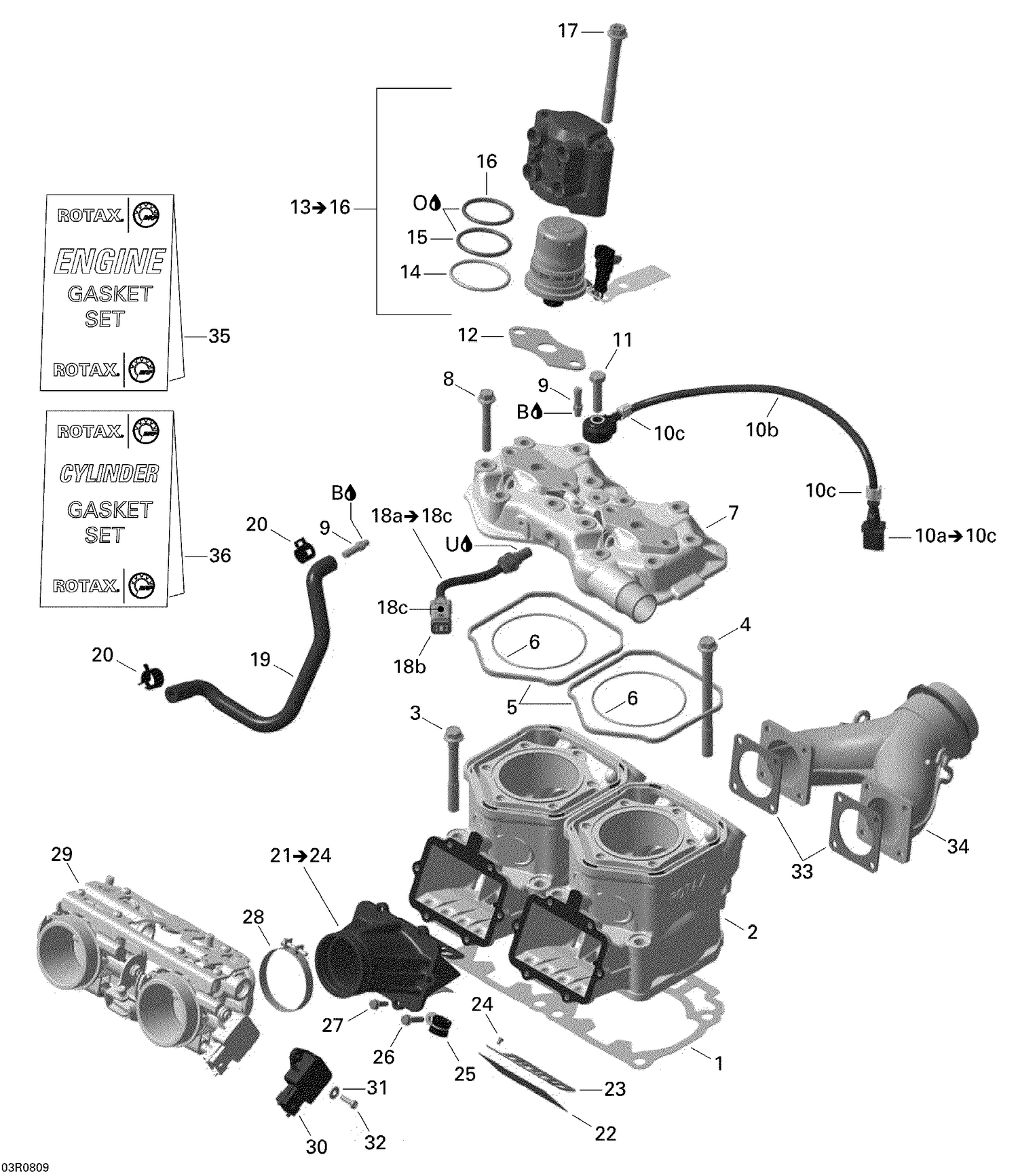

01- Cylinder And Injection System

Parts (42)

Ref	Part Number	Description
B	293800060	Loctite 243, 10 ml
O	Not	Available As Spare Part - Engine Oil
1	420431160	Gasket 0.5 mm This part replaces 420931893.
1	420431161	Gasket 0.6 mm This part replaces 420931892.
1	420431162	Gasket 0.7 mm This part replaces 420931894.
1	420431163	Double Gasket 0.8 mm This part replaces 420931895.
2	420623260	CYLINDER - Call your local BRP dealership
2	420623263	Cylinder This part replaces 421000667.
3	420640524	Hex. Collar Screw
4	420640534	Hex. Collar Screw
5	420931590	Rubber Ring
6	293300026	O-Ring
7	420623296	HEAD CYLINDER COVER - Call your local BRP dealership This part replaces 420623292.
8	420941627	Hex. Screw M8 X 56.5
9	420924724	Hose Nipple This part replaces 420924720.
10b	420460010	TUBE - Call your local BRP dealership
10c	420960890	CLIP - Call your local BRP dealership
11	207083544	Hex. Screw M8 X 35
12	420430930	Gasket
14	415129497	Crush Ring This part replaces 420827330.
15	415129498	O-Ring This part replaces 420431560.
16	415129499	O-Ring This part replaces 420431550.
17	420441187	Torx Flange Screw M10 X 90 -SW 13/T50
18b	515175670	Female Terminal Housing, 2 Circuits
18c	278000632	Female Terminal
19	420460867	Molded Hose This part replaces 420460865.
20	293650214	Norma Spring Clamp This part replaces 420853510.
22	420924680	Reed Pedal
23	420924695	Reed Pedal Stop
24	420941215	Phillips Screw M3 X 5
25	420851250	Clamp
26	420841550	Tapping Screw M5 X 22
27	420941928	Taptite Screw M5 X 16 This part replaces 420941925.
28	420851065	Clamp
29	420889201	Throttle Body This part replaces 420889197.
30	420866120	Position Sensor This part replaces 270000251.
31	234041600	Flat Washer 4 mm, Stainless
32	208641660	Phillips Screw M4 X 16
33	420850552	Gasket
34	420673421	Exhaust Manifold This part replaces 420673420.
35	420889931	Gasket Set, Engine This part replaces 420889923.
36	420889936	Gasket Set, Cylinder This part replaces 420889927.
