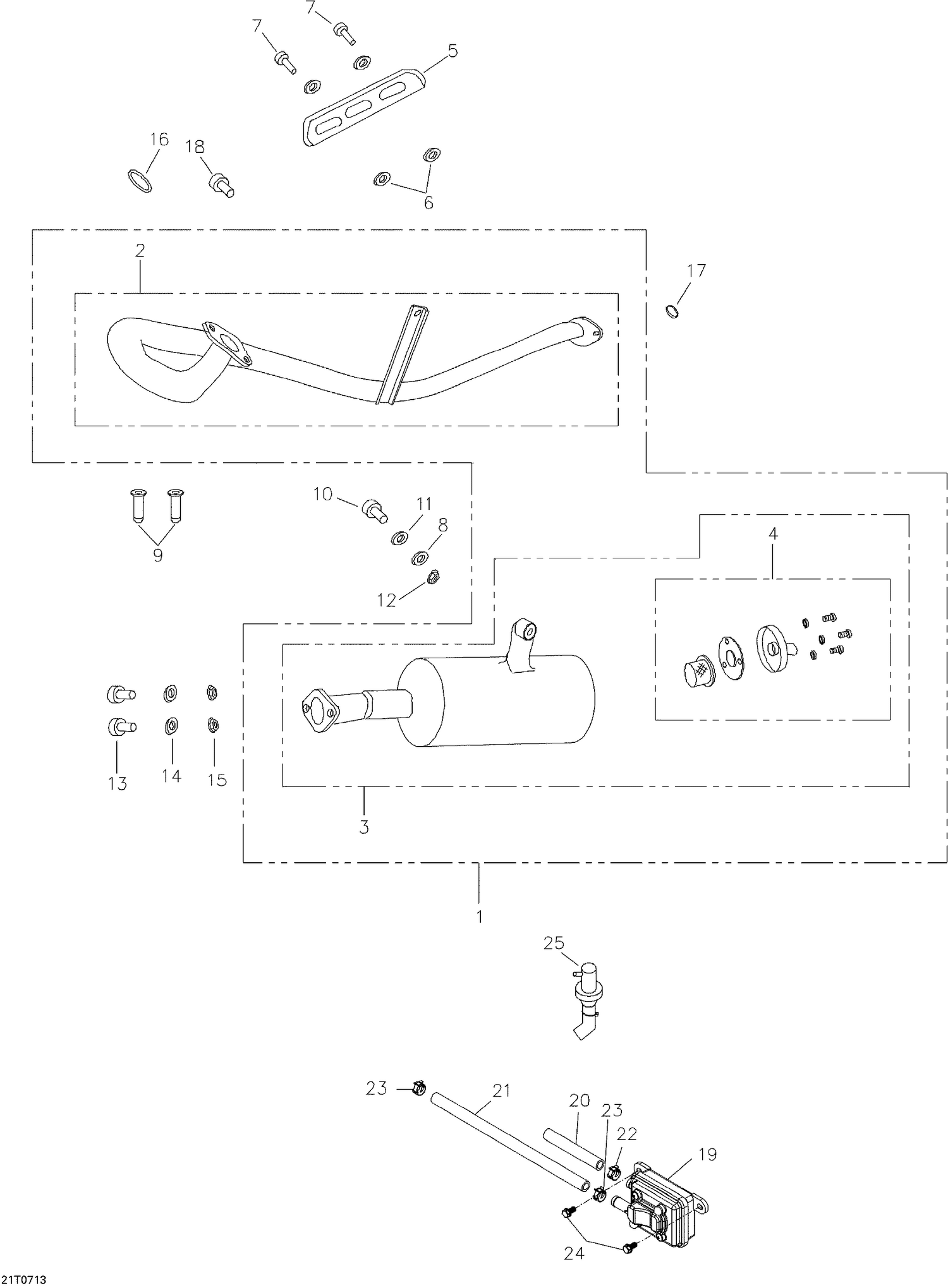

01- Exhaust System
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 2 | A1831123800A | Front Exhaust Pipe |
| 4 | A18330152000 | Spark Arrester |
| 5 | A18319158000 | Muffler Shroud |
| 6 | A18292104000 | Muffler Shroud Packing |
| 7 | A920000600810 | Hex. Bolt M6 X 8 |
| 8 | A941110814520 | Spring Washer |
| 9 | A9030106000 | Cap Nut |
| 10 | A960000803512G | Hexagonal Washer Face Bolt |
| 11 | A941010814020G | Washer Plain |
| 12 | A9035008000 | NYLON INSERT LOCK NUT M8 - Call your local BRP dealership |
| 13 | A960000602210G | HEXAGONAL WASHER FACE BOLT - Call your local BRP dealership |
| 14 | A941010614020G | WASHER PLAIN - Call your local BRP dealership |
| 15 | A9405006000G | HEX.FLANGE NUT WITH SERRATION - Call your local BRP dealership |
| 16 | A18291133000 | PIPE GASKET - Call your local BRP dealership |
| 17 | A18291101000 | EXHAUST PIPE GASKET - Call your local BRP dealership |
| 18 | 207682544 | Hex. Flange Screw M8 X 25 |
| 19 | A17410116000 | REED VALVE - Call your local BRP dealership |
| 20 | A17411145000 | TUBE - Call your local BRP dealership |
| 21 | A17412127000 | Tube |
| 22 | A9451316000 | Spring Clamp |
| 23 | A9451318000 | Spring Clamp |
| 24 | A960000601510G | Hexagonal Flange Bolt |
