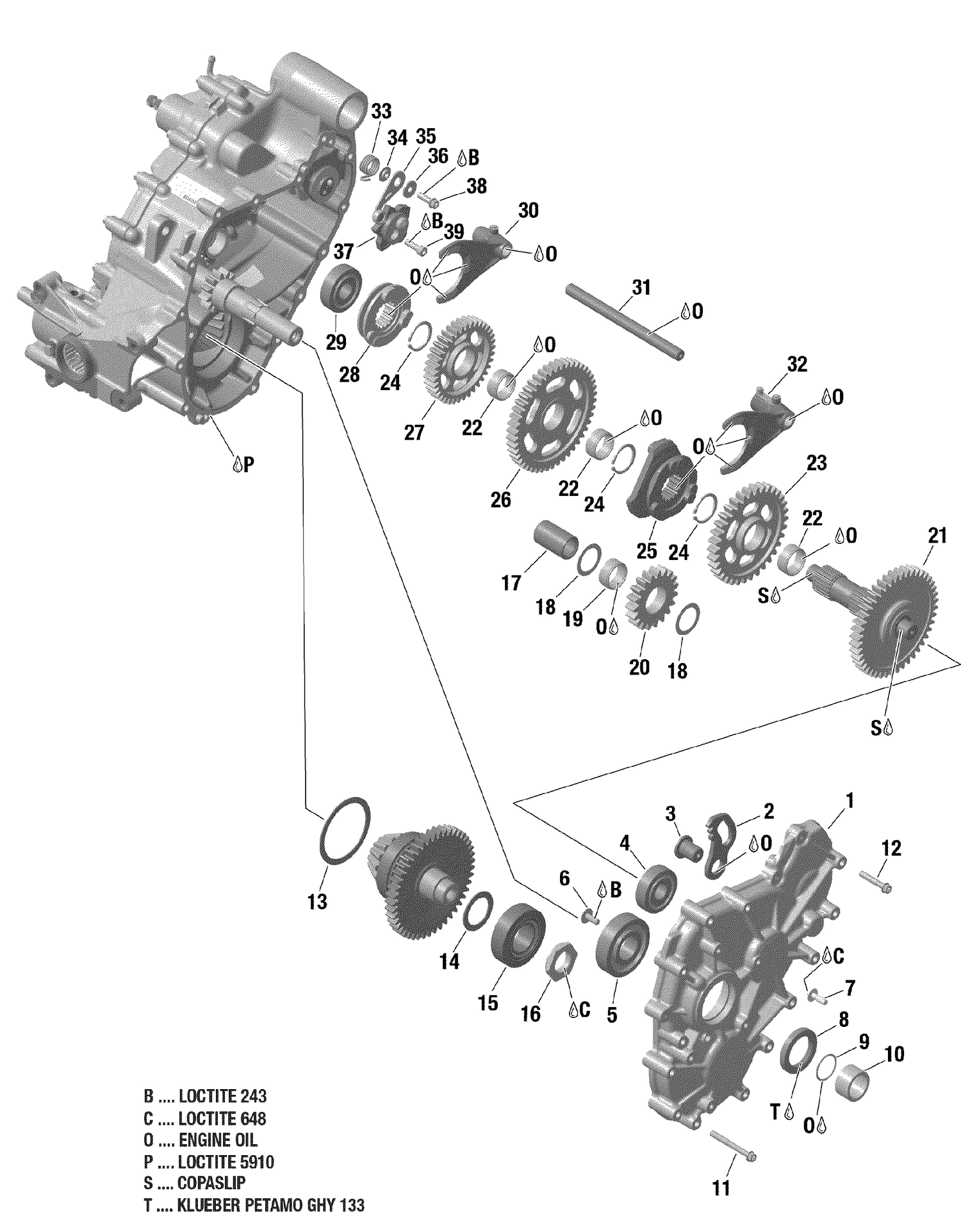

05- Gear Box 2 - 420686565 - XXC - STD
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420257659 | Parking Lock Lever |
| 3 | 420647123 | Collar Sleeve |
| 4 | 420932816 | Ball Bearing |
| 5 | 420932822 | Ball Bearing This part replaces 420932823. |
| 6 | 420241522 | Torx Screw M6 X 16 This part replaces 420241529. |
| 7 | 420441433 | Distance Screw M6 This part replaces 420441431. |
| 8 | 420950089 | Oil Seal |
| 9 | 420631612 | O-Ring This part replaces 420631610. |
| 10 | 420647267 | Distance Ring This part replaces 420647253. |
| 11 | 420440702 | Torx Flange Screw M6 X 55 |
| 12 | 420440274 | Torx Flange Screw M6 X 35 |
| 17 | 420620688 | Intermediate Gear Shaft |
| 18 | 420427011 | Thrust Washer |
| 19 | 420932930 | Needle Bearing |
| 20 | 420434588 | Intermediate Gear, 19 Teeth |
| 21 | 420637048 | Main Shaft |
| 22 | 420632070 | Needle Bearing |
| 23 | 420434873 | Gear Pinion, 34 Teeth |
| 24 | 420845772 | Retaining Ring |
| 25 | 420257954 | Shifting Sleeve This part replaces 420257953. |
| 26 | 420434865 | Gear Pinion, 46 Teeth |
| 27 | 420434855 | Gear Pinion, 37 Teeth |
| 28 | 420257945 | Shifting Sleeve This part replaces 420257944. |
| 29 | 420932816 | Ball Bearing |
| 30 | 420657365 | Shift Fork |
| 31 | 420258394 | Pivot This part replaces 420258388. |
| 32 | 420258515 | Shift Fork Ass'y |
| 33 | Not | Available As Spare Part - Index Spring |
| 34 | Not | Available As Spare Part - Step Ring |
| 35 | Not | Available As Spare Part - Index Lever |
| 36 | Not | Available As Spare Part - Washer |
| 37 | Not | Available As Spare Part - Index Washer |
| 38 | 420441835 | Torx Flange Screw M6 X 20 |
