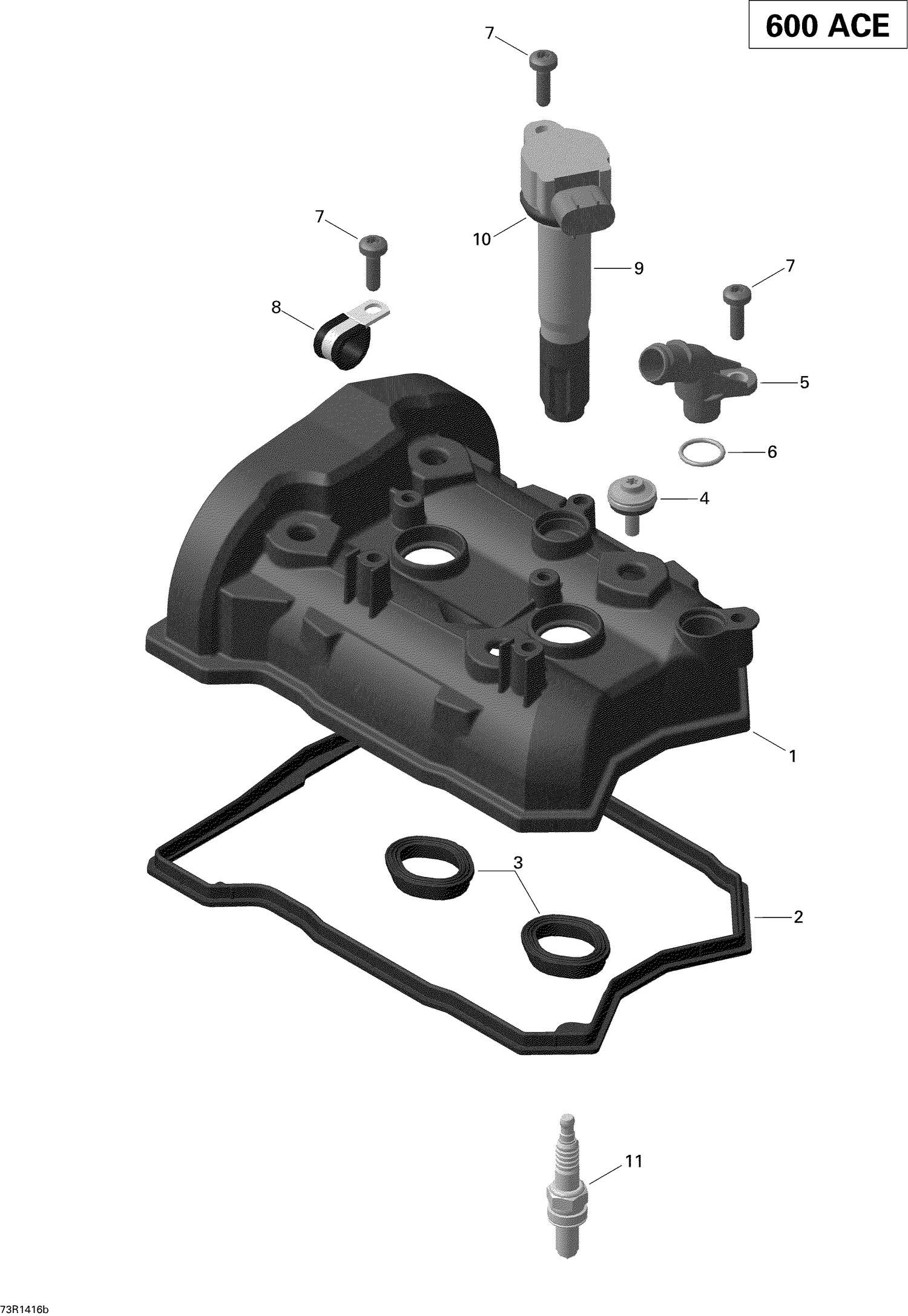

01- Valve Cover
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420911040 | VALVE COVER - Call your local BRP dealership |
| 2 | 420431621 | Gasket |
| 3 | 420431751 | Valve Cover Gasket This part replaces 420431750. |
| 4 | 420440495 | Torx Distance Screw M6 |
| 5 | 420611240 | Connector |
| 6 | 420631240 | O-Ring |
| 7 | 420441386 | Torx Flange Screw M6 X 20 |
| 8 | 420851492 | Cable Clamp |
| 10 | 420201430 | Protection Cap |
