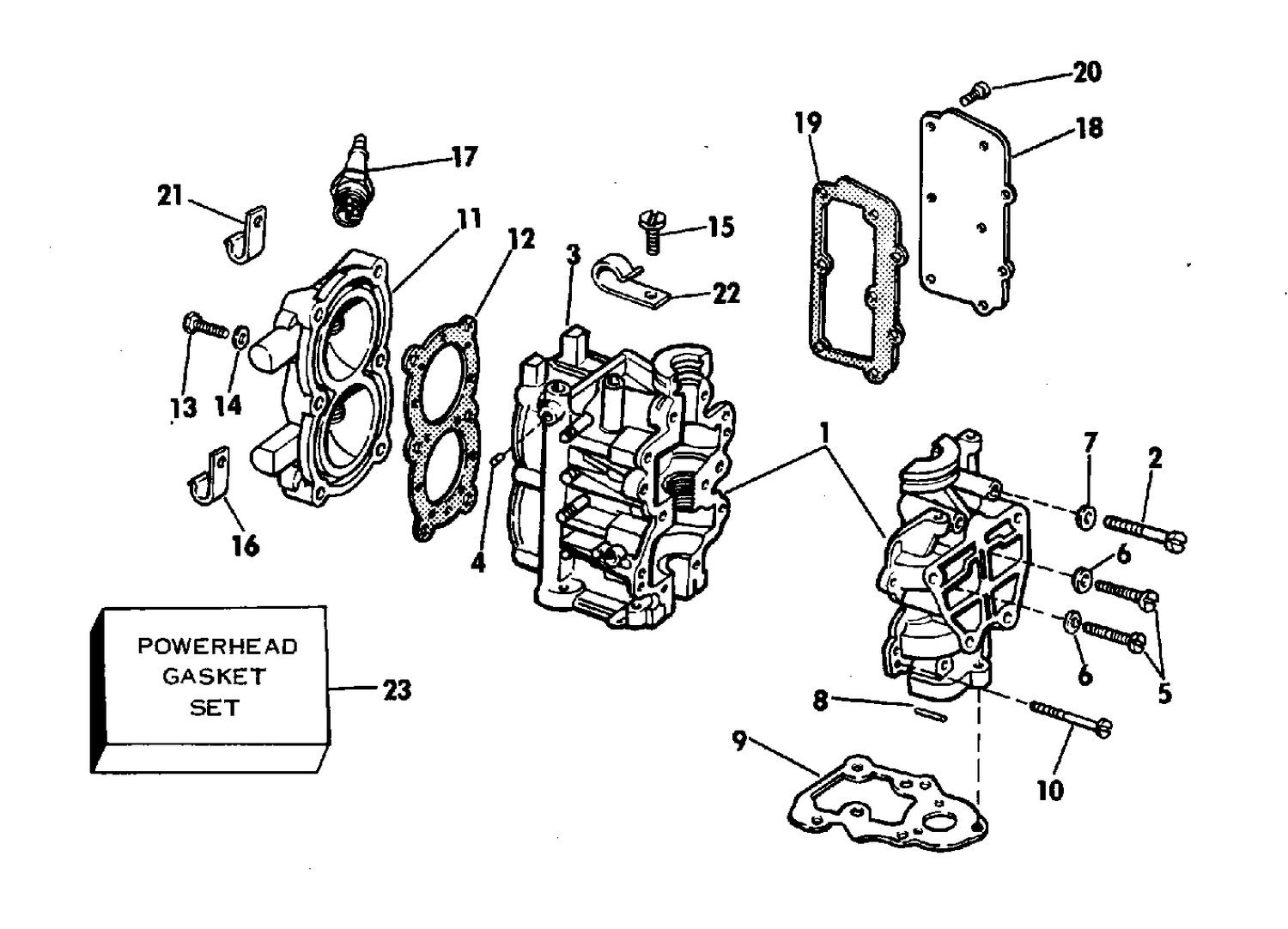

| Ref | Part Number | Description |
|---|
| 1 |
0387713 |
CYLINDER & C'CASE ASSY. |
| 2 |
0322208 |
SCREW,Cyl.to c'case |
| 5 |
0322207 |
SCREW,Center |
| 6 |
0300399 |
WASHER |
| 7 |
0316676 |
LOCKWASHER, Ground |
| 9 |
0314850 |
GASKET |
| 10 |
0314979 |
SCREW, Cylinder to c'case |
| 11 |
0321594 |
CYLINDER HEAD |
| 12 |
0203130 |
GASKET, Cylinder head |
| 13 |
0303398 |
VIS, support This part replaces 0302030. |
| 14 |
0329241 |
RONDELLE This part replaces 0306482. |
| 16 |
0310441 |
CLAMP, CPS lead |
| 17 |
0386939 |
PARK PLUG,AC M40FFX |
| 17 |
0386941 |
SPARK PLUB,Champion L77J4 |
| 18 |
0323263 |
PLATE, EXH COVER This part replaces 0203172. |
| 19 |
0203171 |
GASKET, Cover plate |
| 21 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 22 |
0310503 |
CLAMP |
