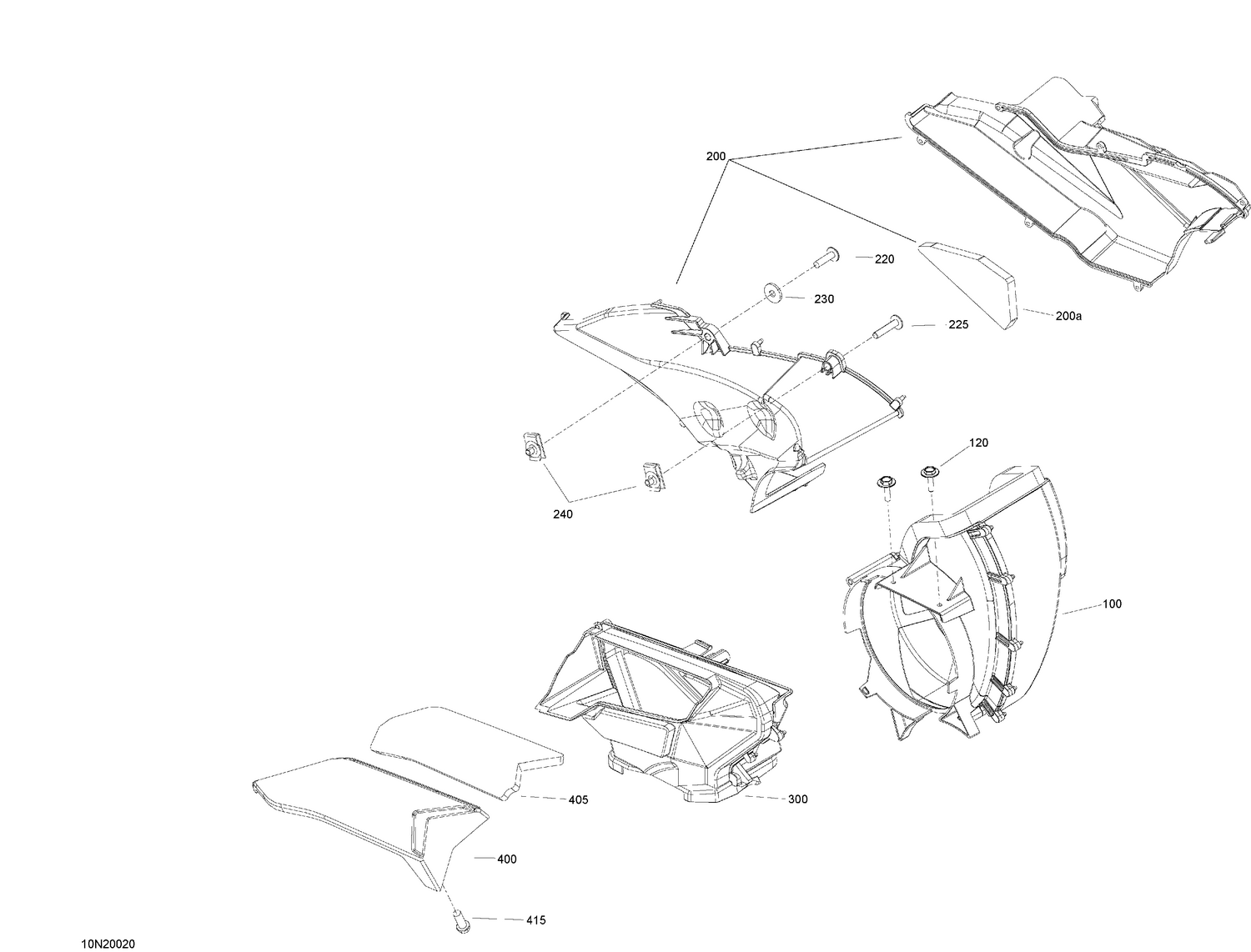

03- Cooling - System
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 509000840 | Inlet Duct |
| 120 | 250000725 | Screw M4 X 16 |
| 200a | 509000766 | Foam |
| 220 | 250000724 | Torx Screw M5 X 20 |
| 225 | 250000762 | Torx Screw M5 X 25 |
| 230 | 391301600 | Washer |
| 240 | 250000958 | Panel Nut M5 X 0.8 |
| 300 | 509001175 | Duct Outlet Ass'y |
| 400 | 509000687 | Air Out Deflec |
| 405 | 509000831 | FOAM-IN - Call your local BRP dealership |
