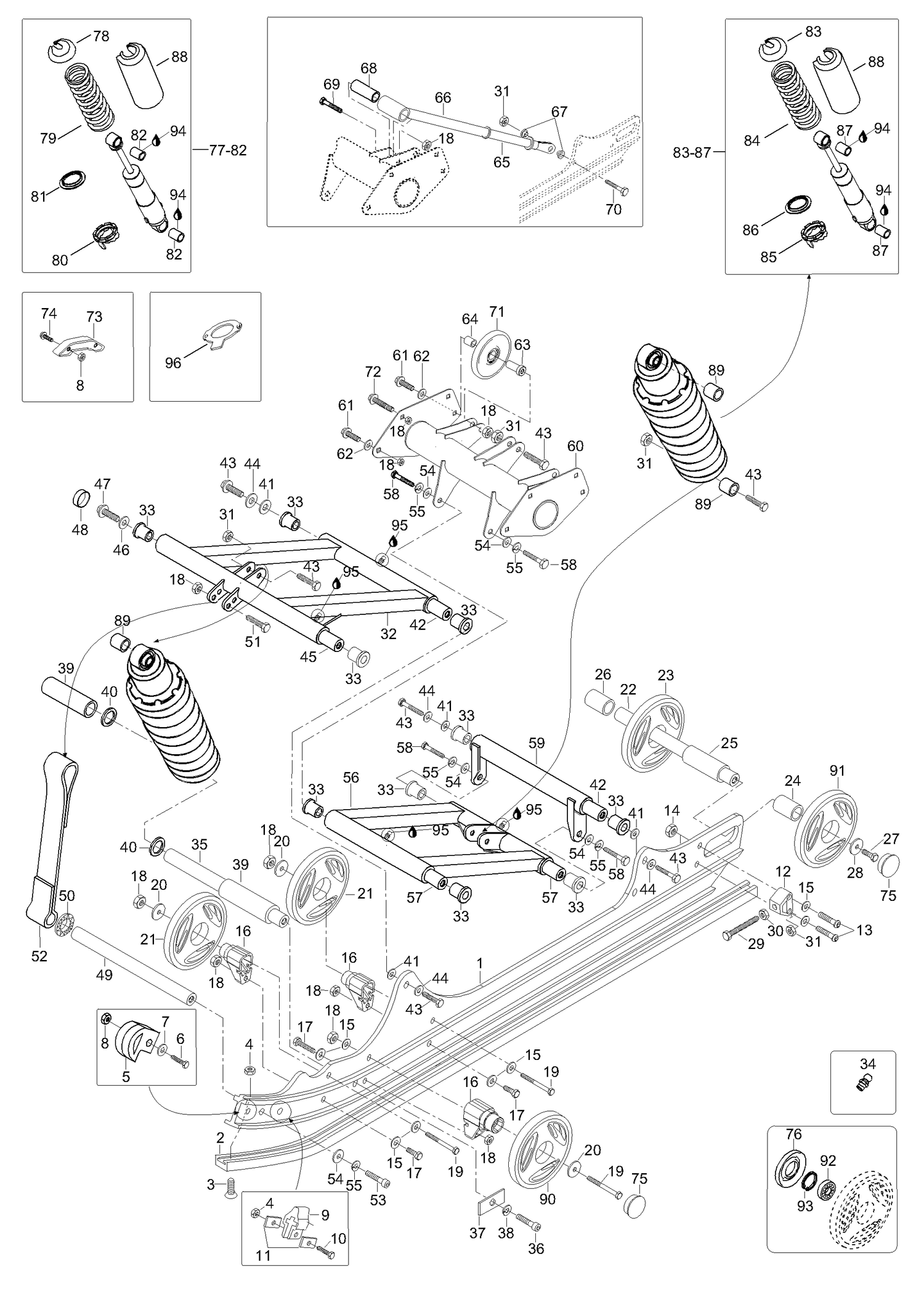

08- Rear Suspension

08- Rear Suspension

Parts (92)

RefPart NumberDescription
1 5246388 Runner
2 605355362 Slider shoe This part replaces 5347724.
3 40059 Allen screw M6x60
4 33010 Lock Nut M6 (1=10Pcs)
5 534578 Runner protector
6 40031 Screw M6x25
7 20003 Washer
8 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200.
9 5442328 STOPPER-RUBBER - Call your local BRP dealership
10 40032 Screw M6x30
11 548470 Washer
12 5341633 Tensioner
13 207084544 Hex. Screw M8 X 45 This part replaces 40008.
14 233281414 Hex. Flange Elastic Nut M8 This part replaces 33201.
15 234081410 Flat Washer 8 mm This part replaces 20104.
16 5447079 Support
17 40037 Screw M8x25
18 232581414 Hex. Elastic Stop Nut M8 This part replaces 33011.
19 40089 M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership
20 503183100 Washer
21 503191029 Support wheel, 135mm This part replaces 503188997.
22 5341511 Rear shaft
23 503189478 Wheel black
24 5441512 Spacer
25 5441513 Sleeve
26 5444099 Spacer
27 250000019 Screw M10x35
28 503183300 Washer, hardened
29 40239 Screw M10x100
30 232006414 Hex. Nut M10 This part replaces 33004.
31 33012 Nut elastic M10
32 5145588 Welded front arm
33 31083 Cushion
34 34011 Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership
35 5347633 Shaft, shock
36 40134 Screw Socket HD.DIN 912 This part replaces 40536.
37 5447940 Support plate
38 20068 Lock washer
39 5346649 Sleeve - Call your local BRP dealership
40 31013 Shim Ring
41 20116 Washer
42 5346900 Shaft
43 40016 Screw M10x45
44 512056700 Lock washer
45 5346135 Shaft
46 20090 Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership
47 40243 Screw M12x60
48 5448025 Cap
49 5343471 Shaft
50 4181158 Fixing Washer
51 207084544 Hex. Screw M8 X 45 This part replaces 40008.
52 5447919 STOPPER STRAP - Call your local BRP dealership
53 40134 Screw Socket HD.DIN 912
54 20105 Washer, hardened
55 20047 Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership
56 5245536 Rear Arm Weld
57 5346865 SHAFT - Call your local BRP dealership
58 40014 Screw M10x40
59 5345535 Rear arm
60 5247115 Upper arm
61 40058 Locking screw M8x20
62 20005 WASHER M10 - Call your local BRP dealership
63 5447945 Sleeve
64 5447946 Sleeve
66 5347851 Pipe
67 5447853 SLIDE BEARING - Call your local BRP dealership
68 5447848 Bearing sleeve - Call your local BRP dealership
69 40011 Hex screw M8 x 60 DIN931(1=10pcs)e - Call your local BRP dealership
70 40042 Screw M10x35
71 46027 Idler Wheel - Call your local BRP dealership
72 40150 Locking screw M8x90
73 503192731 SLIDING PAD - Call your local BRP dealership This part replaces 5343191.
74 207764044 BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces 40064.
75 570063600 Cap
76 572089000 LABYRINTH SEAL - Call your local BRP dealership
78 5346750 Spring stopper
79 Not Available As Spare Part - Spring - DOES NOT APPLY TO THIS MODEL
80 230048 Cam
81 230049 Spring guide
82 31094 Cushion
83 5346750 Spring stopper
84 Not Available As Spare Part - Spring - DOES NOT APPLY TO THIS MODEL
85 230048 Cam
86 230049 Spring guide
87 31094 Cushion
88 5346754 Shock protector
89 5446652 Bushing
90 503190797 Support wheel, 135mm/Full Moon This part replaces 503189411.
91 503190856 Support wheel, 165mm/Full Moon This part replaces 503189374.
92 293350115 Ball Bearing This part replaces 405404500.
93 371901700 CIRCLIP - Call your local BRP dealership
95 413711500 SYNTHETIC GREASE - Call your local BRP dealership
