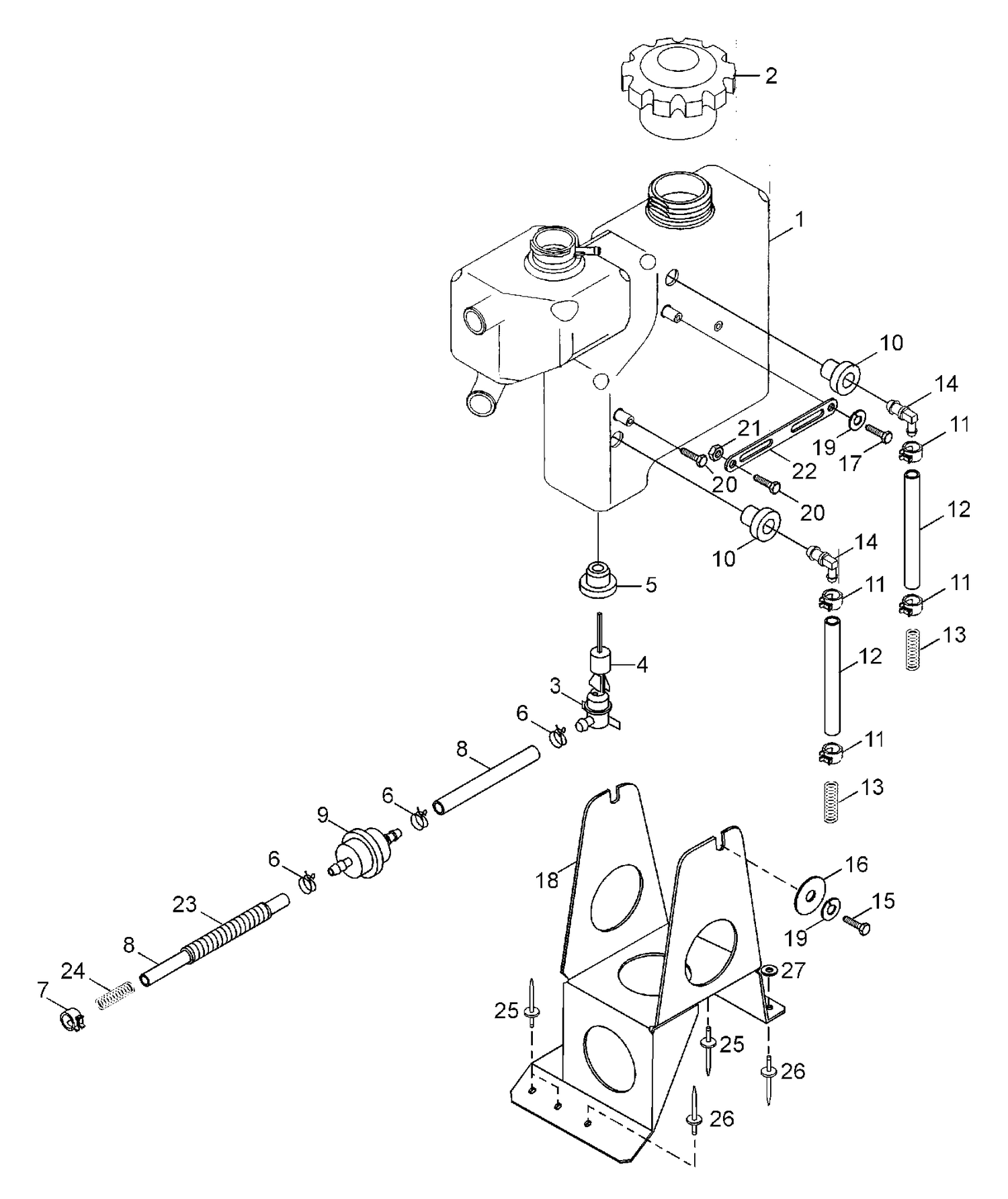

01- Oil Tank
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 519000014 | Oil/cooling liquid tank |
| 2 | 519000044 | CAP - Call your local BRP dealership This part replaces 572071000. |
| 3 | 414681800 | LEVEL SWITCH - Call your local BRP dealership |
| 4 | 414681900 | Float |
| 5 | 570023000 | Seal for sensor |
| 6 | 27119F | Clamp |
| 7 | 414420700 | Universal Spring Clamp |
| 8 | 39046 | Hose 11/8 |
| 9 | 414536500 | Oil filter |
| 10 | 707800347 | Grommet This part replaces 570273900. |
| 11 | 414655700 | Clamp |
| 12 | 39052 | Hose 13.5/10.5 |
| 13 | 25003 | Spring |
| 14 | 414523600 | Fitt ing-elbow |
| 15 | 40114 | Screw M6x10 |
| 16 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 17 | 40211 | Screw M6x35 |
| 18 | 5243061 | Support weld. |
| 19 | 20052 | Spring washer |
| 20 | 40030 | Screw M6x20 |
| 21 | 33010 | Lock Nut M6 (1=10Pcs) |
| 22 | 5443932 | Support plate |
| 23 | 28015 | Tubing |
| 24 | 5444054 | Spring l=60mm |
| 24 | 5444055 | Spring l=190mm |
| 25 | 36070 | Rivet |
| 26 | 36087 | Rivet |
