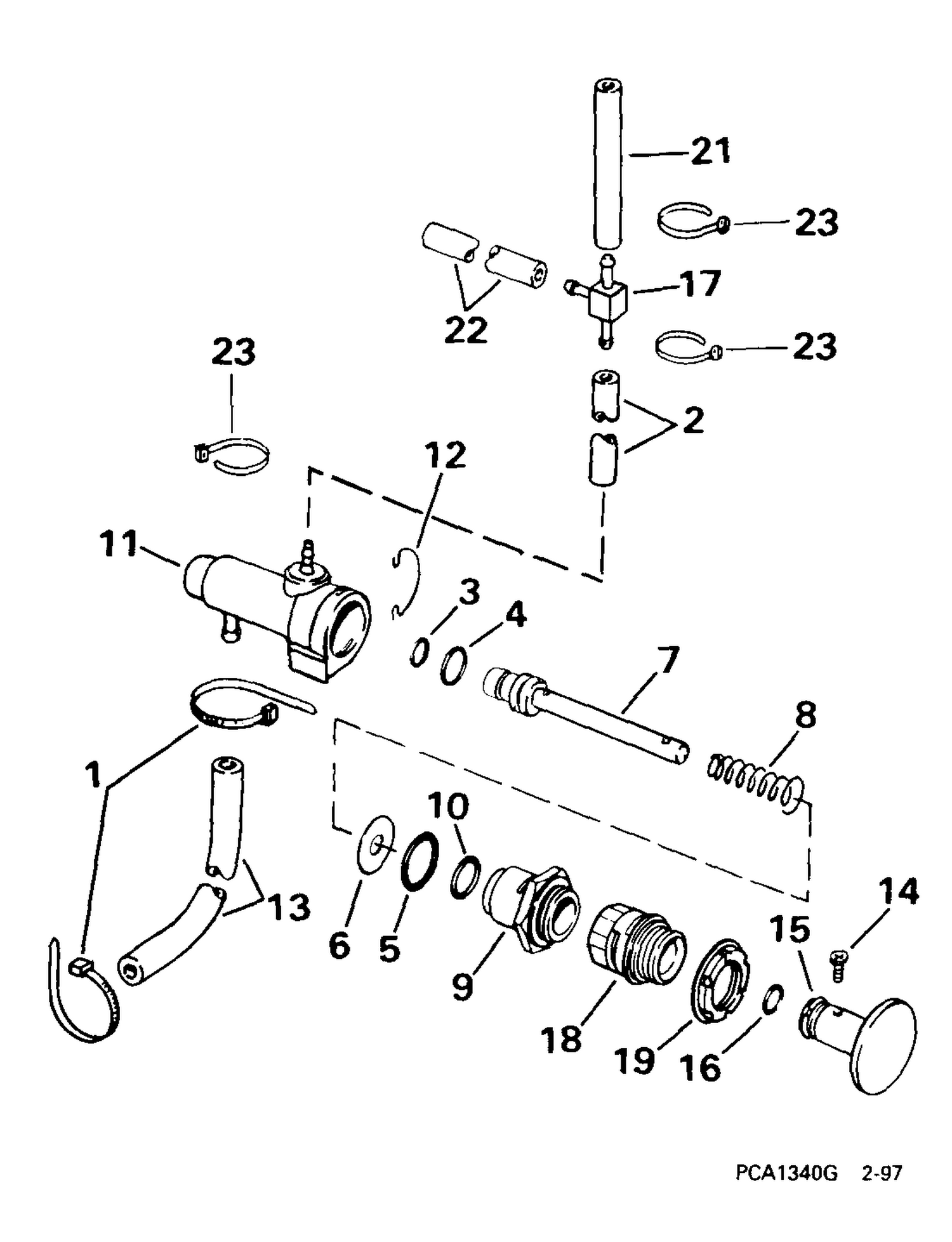

PRIMER PUMP
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 2 | HOSE, | Primer to tee, 6 in. (152mm) |
| 13 | HOSE, | Stbd. carburetor to primer, 15 1/2 in. (394mm) |
| 14 | 0329054 | SCREW |
| 15 | 0334365 | KNOB |
| 16 | 0330992 | JOINT TORIQUE, bouton |
| 17 | 0325569 | T, amorçage |
| 18 | 0334364 | SCREW, Power knob |
| 19 | 0329670 | NUT |
| 21 | HOSE, | Port primer, 2 3/4 in. (71mm) |
| 22 | HOSE, | Upper stbd. tee, 16 in. (406mm) |
| 0432142 | 5007336 | Kit Ay This part replaces 0432142. |
