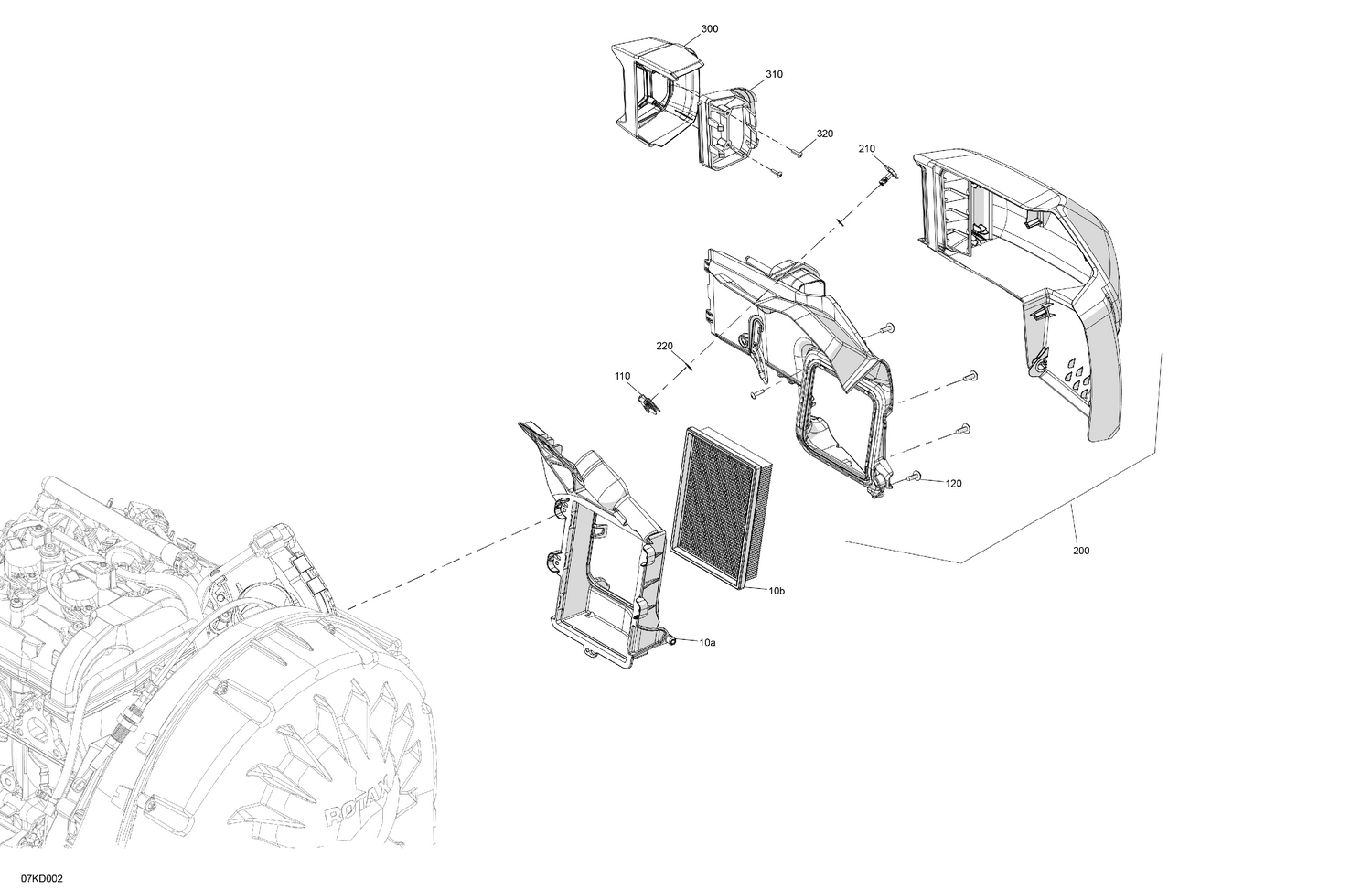

02- Engine - RH Air Intake
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 706600370 | Baseplate |
| 10b | 707800306 | Air Filter |
| 110 | 705002651 | Quarter Turn Nut |
| 120 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 200 | 706600404 | Side Cover Ass'y |
| 210 | 705013609 | Quarter-Turn Screw |
| 220 | 705002650 | Washer |
| 300 | 705015092 | RH Filter Support |
| 310 | 705016509 | Carbon Black, RH Fairing Trim |
