Home / BRP / 2009 / Rave / Rave RS 600, 2009 / 01- Cylinder And Reed Valve

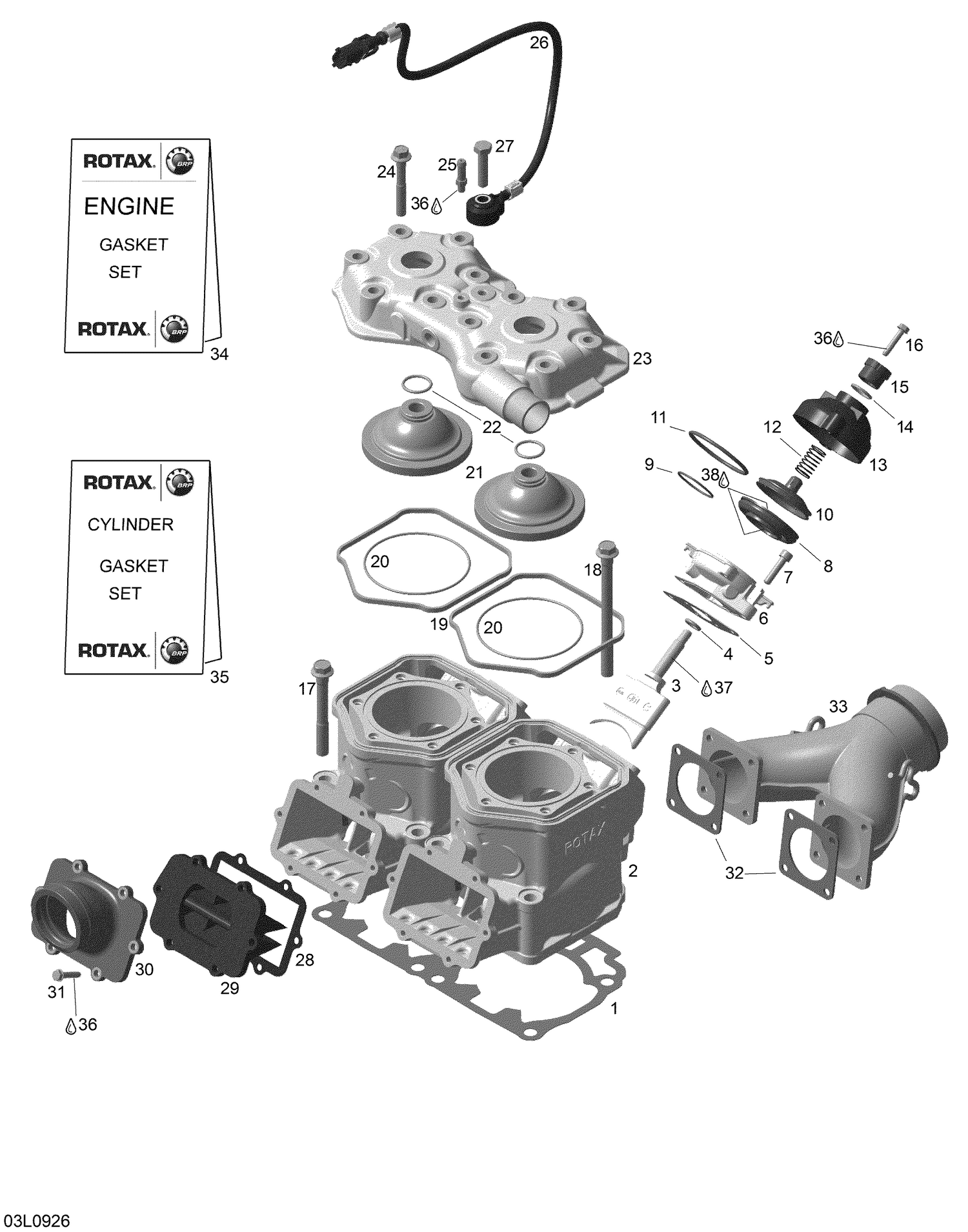

01- Cylinder And Reed Valve

01- Cylinder And Reed Valve

Parts (40)

RefPart NumberDescription
1 420431160 Gasket, double 0.5 mm
1 420431161 Gasket, double 0.6 mm
1 420431162 Double Gasket 0.7 mm This part replaces 420931894.
1 420431163 Double Gasket 0.8 mm This part replaces 420931895.
2 420413350 CYLINDER - Call your local BRP dealership This part replaces 420623480.
3 420854650 Exhaust valve
4 420430110 O-Ring
5 420931542 Gasket
6 420854455 Valve rod housing
7 205062544 Allen screw M6 x 25
8 420260729 Bellows
9 420838255 Hose spring
10 420854449 Exhaust valve piston
11 420939281 Hose Spring This part replaces 420939280.
12 420239954 Spring This part replaces 420239944.
13 420911559 Valve Cover This part replaces 420911558.
14 420430220 O-ring
15 420241221 Adjustment screw
16 420241271 Hex. Taptite Screw M5 X 25 This part replaces 420241270.
17 420640524 Screw M10 x 80
18 420640534 Screw M10 x 120
19 420931590 Square ring
20 293300026 O-ring
21 420623358 COMBUSTION CHAMBER INSERT - Call your local BRP dealership This part replaces 420623355.
22 420430373 O-Ring This part replaces 420430370.
23 420623545 Cylinderhead
24 420941627 Hex. Screw M8 X 56.5
25 420924724 Hose Nipple This part replaces 420924720.
26 270000484 Knock sensor
27 207083544 Hex. Screw M8 X 35
28 420630815 Thermostat gasket
29 420924791 REED VALVE ASS'Y - Call your local BRP dealership
30 420667500 Intake socket
31 420241271 Hex. Taptite Screw M5 X 25 This part replaces 420241270.
32 420850552 Gasket
33 420673421 Exhaust Manifold This part replaces 420673420.
34 420889931 Engine Gasket Set This part replaces 420889923.
35 420889936 Cylinder Gasket Set This part replaces 420889927.
36 293800060 Loctite 243
37 420297433 Molykote G-N, 50 g
