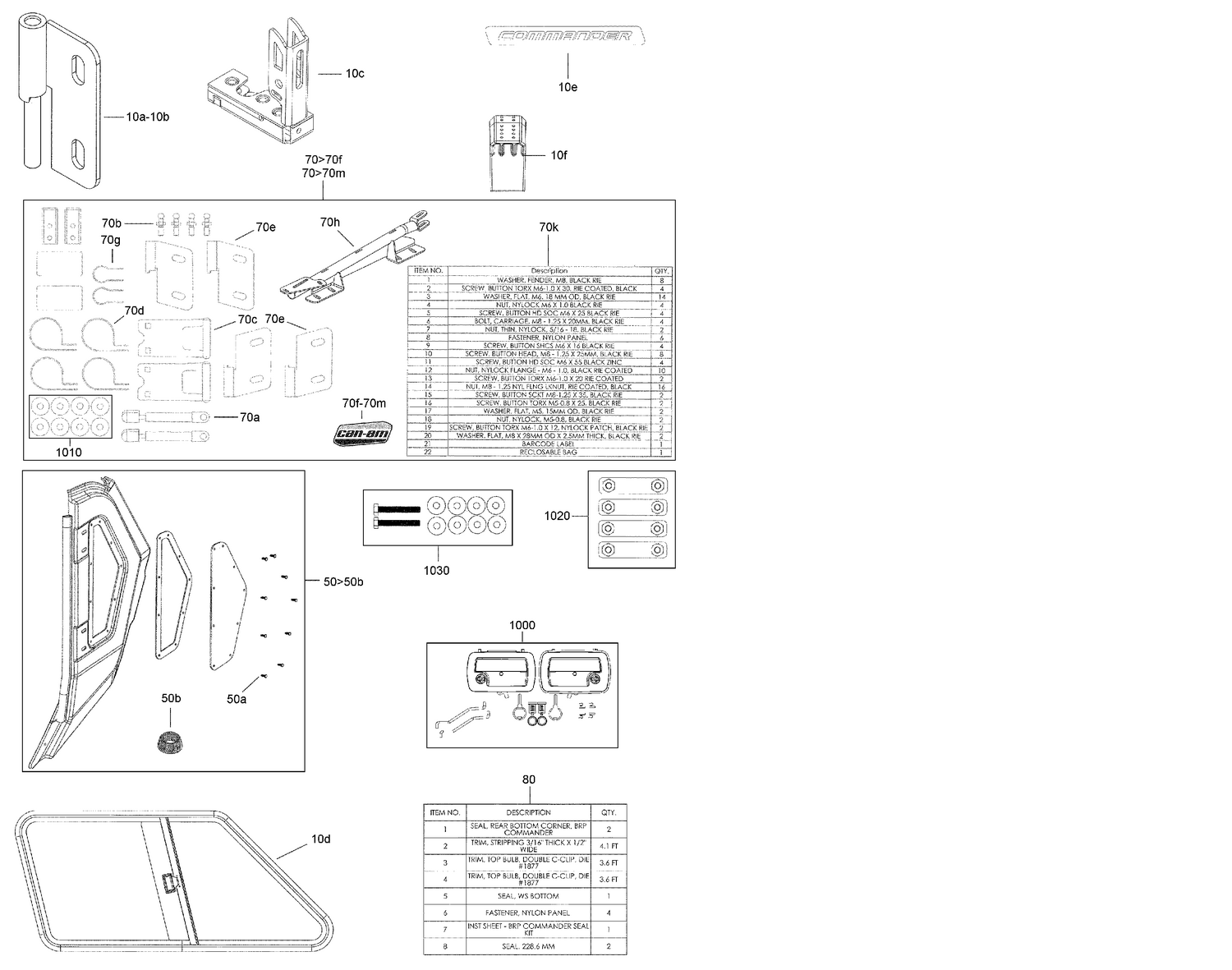

09- Commander Door Kit
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 705008880 | LH Male Hinge Ass'y |
| 10a | 705008888 | RH Male Hinge Ass'y |
| 10b | 705008881 | LH Male Hinge |
| 10b | 705008889 | RH Male Hinge |
| 10c | 705008883 | LH DOOR LATCH - Call your local BRP dealership |
| 10c | 705008891 | RH Door Latch |
| 10d | 705008885 | LH Door Window |
| 10d | 705008893 | RH Door Window |
| 10e | 704904519 | LH Logo Plate COMMANDER |
| 10f | 705009142 | LH INNER SIDE HANDLE - Call your local BRP dealership |
| 50a | 705009405 | Plastic Dart |
| 50b | 705009406 | Push Nut |
| 70a | 705008760 | GAS SHOCK - Call your local BRP dealership |
| 70b | 705008761 | Ball Stud |
| 70c | 705008762 | DOOR CATCH - Call your local BRP dealership |
| 70d | 705005606 | P-Bracket, 2" |
| 70g | 705008975 | C Clamp |
| 1000 | 715002990 | HANDLE LATCH KIT - Call your local BRP dealership |
