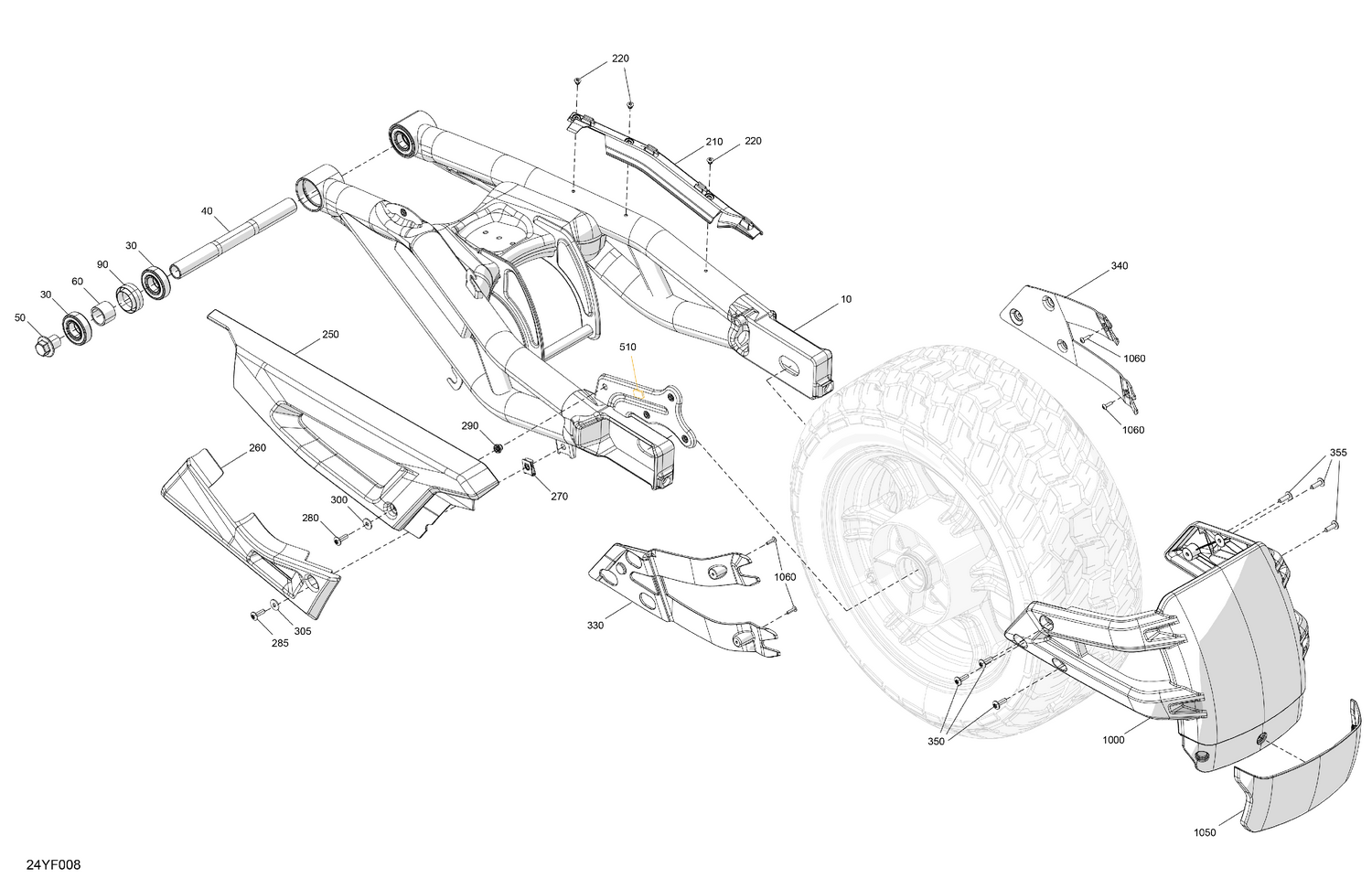

05- Suspension - Rear
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706005746 | Swing Arm |
| 30 | 293350153 | Ball Bearing |
| 40 | 706001182 | Swing Arm Axle |
| 50 | 706001579 | Bolt M20 |
| 60 | 706001152 | Spacer |
| 90 | 706001366 | Sleeve |
| 210 | 706005747 | Fairlead |
| 220 | 293150102 | Rivet 3/16" |
| 250 | 705017539 | Upper Belt Guard Trim |
| 260 | 705017540 | Lower Belt Guard Trim |
| 270 | 250100208 | Panel Nut M6 X 1.0 |
| 280 | 250000350 | Torx Truss Screw M6 X 20 |
| 285 | 250000350 | Torx Truss Screw M6 X 20 |
| 290 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 300 | 234062670 | Stainless Steel Flat Washer |
| 305 | 234062670 | Stainless Steel Flat Washer |
| 330 | 706006034 | LH Rear Fender Support |
| 340 | 706006035 | RH Rear Fender Support |
| 350 | 250000350 | Torx Truss Screw M6 X 20 |
| 355 | 250000350 | Torx Truss Screw M6 X 20 |
| 510 | 708305238 | Shim |
| 1000 | 705017541 | Rear Fender |
| 1050 | 705017592 | Rea Fender Trim |
