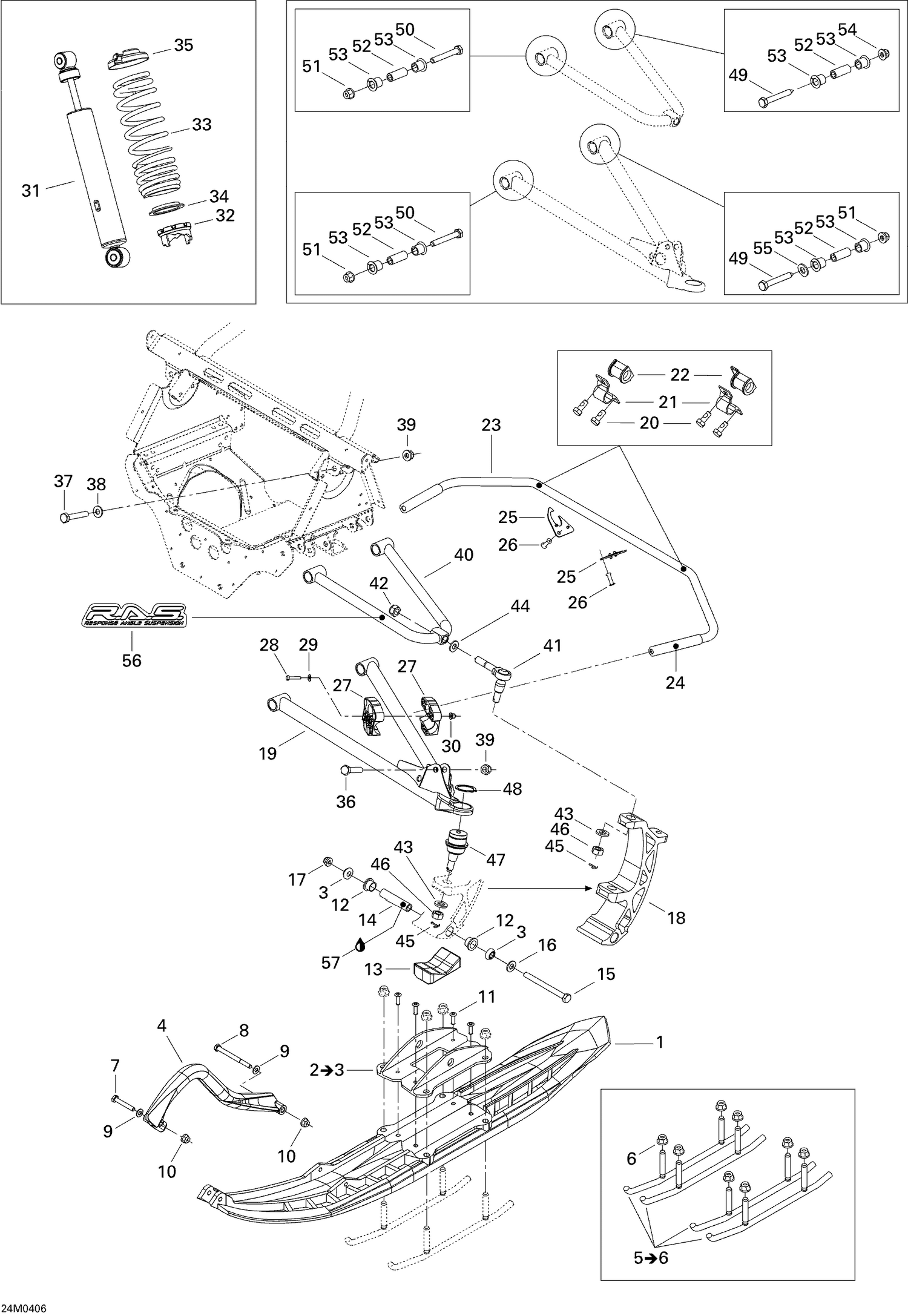

| Ref | Part Number | Description |
|---|
| 1 |
505070727 |
Deep Black, Precision Ski |
| 3 |
505070001 |
BUSHING - Call your local BRP dealership |
| 4 |
505070963 |
Black, Handle |
| 6 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 7 |
207085044 |
Hex. Screw M8 X 50 |
| 8 |
207089044 |
Hex. Screw M8 X 90 |
| 9 |
234081410 |
Flat Washer 8 mm |
| 10 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 11 |
293150090 |
RIVET_POP 1/4 - Call your local BRP dealership |
| 12 |
505072690 |
Leg Bushing This part replaces 505070954. |
| 13 |
505070671 |
Ski Stopper |
| 14 |
506133300 |
Spacer |
| 15 |
250000001 |
HEX. SCREW M10 X 110 - Call your local BRP dealership |
| 16 |
732900049 |
Washer |
| 17 |
250100105 |
Flange Nut M10 This part replaces 732610084. |
| 18 |
505071232 |
SKI LEG - Call your local BRP dealership |
| 20 |
250000118 |
Hex. Screw With Nylon |
| 21 |
506095800 |
CLAMP - Call your local BRP dealership |
| 22 |
505070664 |
LH BUSHING - Call your local BRP dealership |
| 23 |
505070948 |
STABILISATOR - Call your local BRP dealership |
| 24 |
505071039 |
STABILISATOR BOOT - Call your local BRP dealership |
| 25 |
505071253 |
PLUG - Call your local BRP dealership |
| 26 |
293150103 |
Pop Rivet 3/16" |
| 27 |
505071268 |
RH SLIDER HALF - Call your local BRP dealership |
| 28 |
207152544 |
HEX. SCREW M5 X 25 - Call your local BRP dealership |
| 29 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 30 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 31 |
505071202 |
Front Shock |
| 32 |
505073625 |
Adjustment Cam This part replaces 503183700. |
| 33 |
505071264 |
Spring |
| 34 |
503187500 |
Spring Guide |
| 35 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 36 |
207005544 |
Hex. Screw M10 X 55 |
| 37 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 38 |
732900049 |
Washer |
| 39 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 40 |
505071276 |
Upper Arm |
| 41 |
505072257 |
Upper Ball Joint This part replaces 505071483. |
| 42 |
250000047 |
Hex. Flange Elastic Nut M12 |
| 43 |
234021410 |
Flat Washer 12 mm |
| 44 |
503189276 |
Washer |
| 45 |
211400017 |
Cotter Pin |
| 46 |
232221414 |
Hex. Castellated Nut M12 |
| 47 |
505073636 |
Ball Joint This part replaces 505071422. |
| 48 |
293370035 |
Circlip |
| 49 |
250000114 |
Cone Screw M10 X 75 |
| 50 |
207007044 |
Hex. Screw M10 X 70 |
| 51 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 52 |
505070567 |
Bushing |
| 53 |
505070566 |
Arm Bushing |
| 54 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 55 |
503189564 |
Washer |
| 56 |
516001704 |
R.A.S. Suspension Decal |
| 505070912 |
Coussinet |
DR - Appelez votre concessionnaire BRP local 505070912 |
| 505070912 |
RH |
BUSHING - Call your local BRP dealership 505070912 |
| 505071269 |
Demi-Coulisse |
GA - Appelez votre concessionnaire BRP local 505071269 |
| 505071269 |
LH |
SLIDER HALF - Call your local BRP dealership 505071269 |
| 505071290 |
Bras |
Inférieur DR 505071290 |
| 505071290 |
RH |
Lower Arm 505071290 |
| 505071293 |
Bras |
Inférieur GA 505071293 |
| 505071293 |
LH |
Lower Arm 505071293 |
