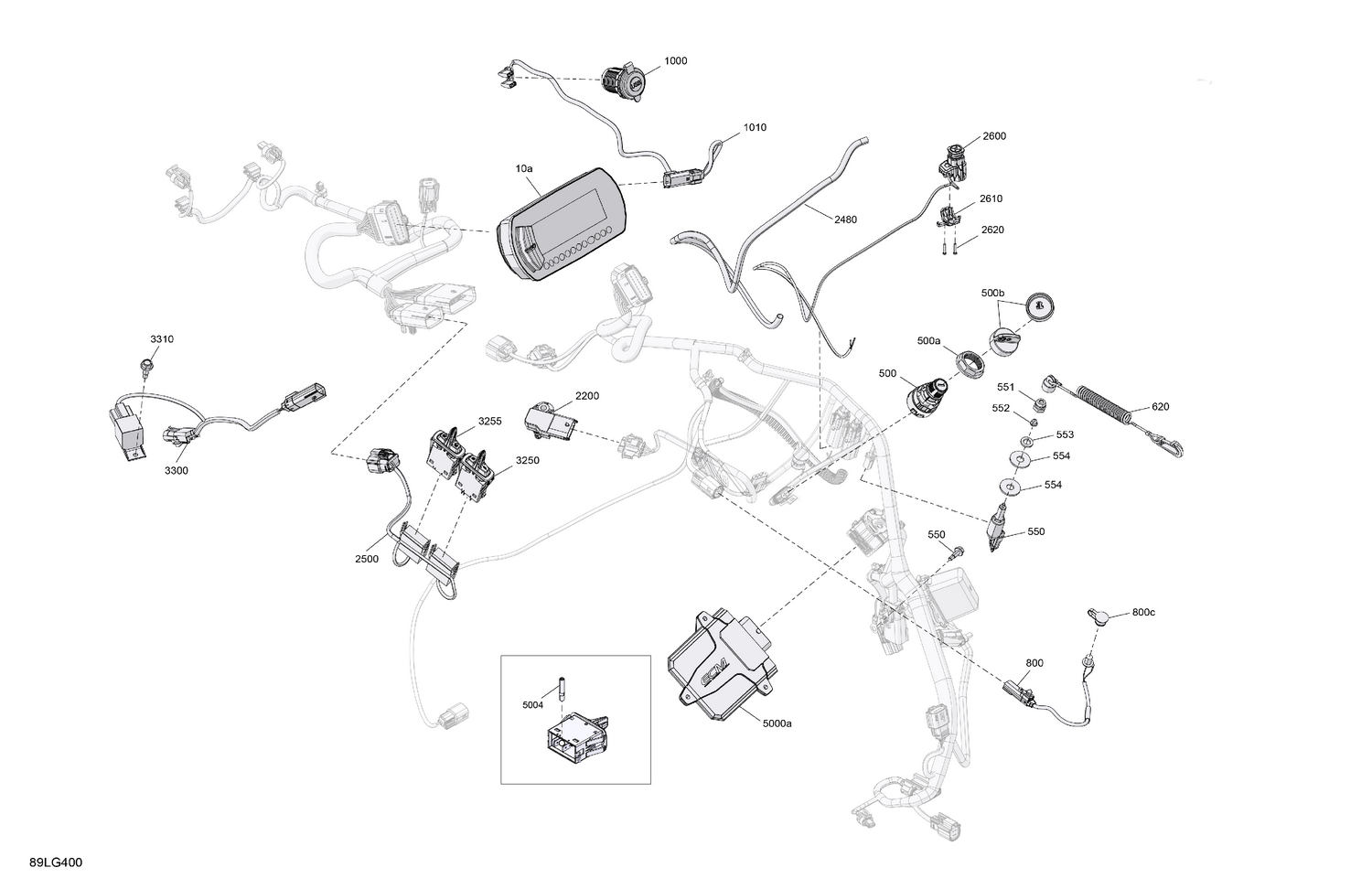

08- Electric - Upper Section
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 515178226 | Multifunction Gauge Full Size Color |
| 500a | 710007923 | Nut Specialized |
| 500b | 715900934 | Blank Ignition Key |
| 550 | 515175653 | Brake Switch |
| 551 | 515145900 | Switch Nut |
| 552 | 570151100 | Plunger Cap |
| 553 | 503189564 | Washer |
| 554 | 234002600 | Flat Washer 10 mm, Stainless |
| 620 | 515178283 | Cap Ass'y |
| 800c | 572103300 | Cap |
| 1000 | 219400510 | USB Outlet |
| 1010 | 515178190 | Harness |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2480 | 415130141 | Sleeve |
| 2500 | 515179085 | Console Wiring Harness |
| 2600 | 515179472 | Emergency Stop Switch |
| 2610 | 515179182 | Clamp |
| 2620 | 250001201 | Screw PT. Socket T10 K30 X 16 |
| 3250 | 515178462 | Switch Rocker Hand Warmer |
| 3255 | 515178463 | Switch Rocker Headlignt |
| 3300 | 515180076 | Fan Wiring Harness |
| 3310 | 207551044 | Hex. Flange Screw M5 X 10 |
| 5000a | 515179453 | ECM Module |
