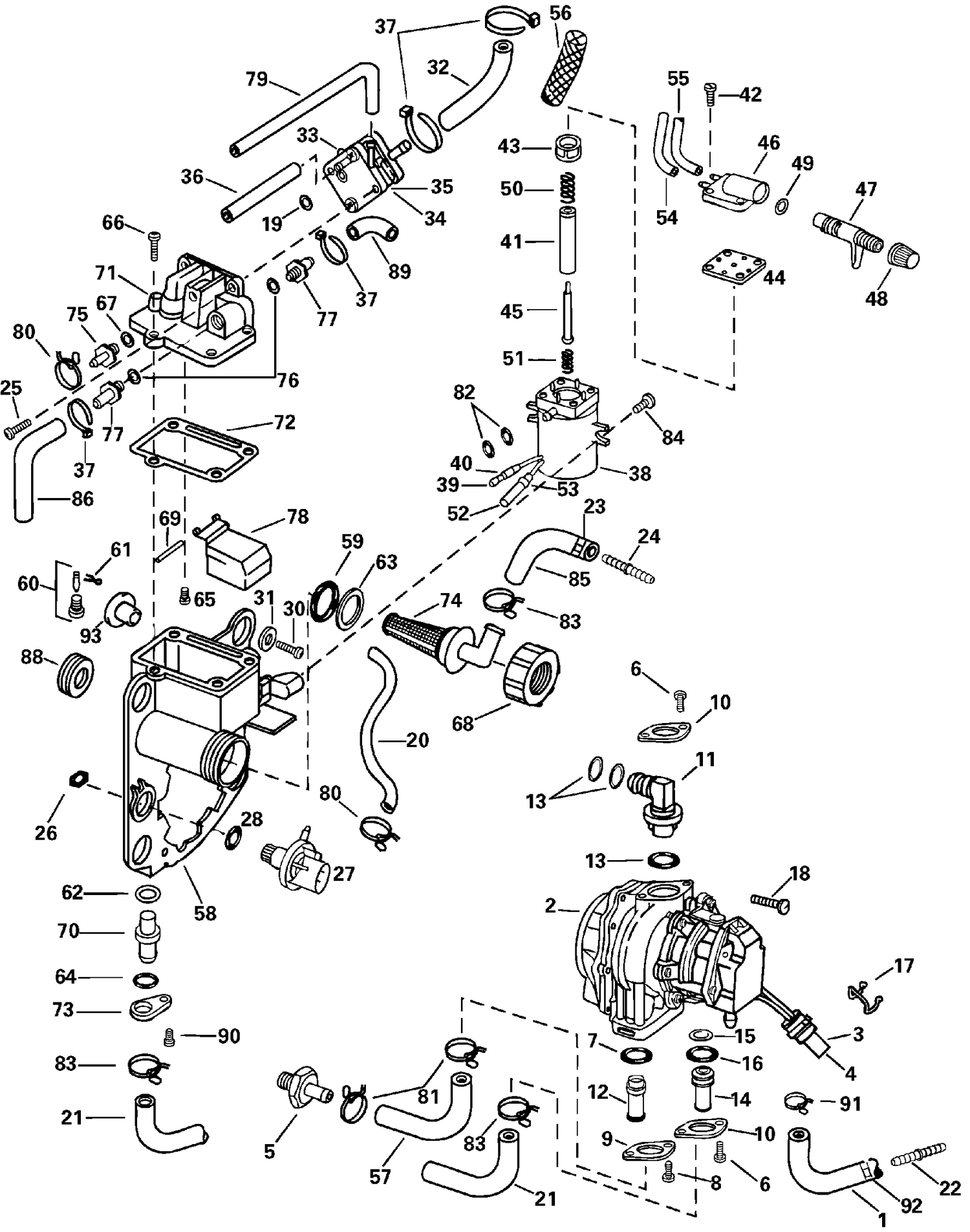

| Ref | Part Number | Description |
|---|
| 1 |
0349009 |
HOSE, Connector to pump, oil |
| 2 |
5007420 |
Kit Ay This part replaces 5004558. |
| 9 |
0340201 |
RETAINER |
| 13 |
0335230 |
O-RING |
| 17 |
0512743 |
DISPOSITIF DE RETENUE |
| 22 |
0358042 |
FITTING, Fuel hose This part replaces 0349008. |
| 25 |
0335229 |
SCREW, Bracket to crkc. cover |
| 27 |
0438081 |
SWITCH, Vacuum |
| 28 |
0909678 |
JOINT TORIQUE, interrupteur d'aspiration vers support |
| 30 |
0333675 |
SCREW, Bracket to c'case cover |
| 31 |
0336316 |
WASHER, screw, bracket to hood |
| 32 |
0336318 |
HOSE, pulses, steam pump to crankcase cover |
| 33 |
0433352 |
PUMP AY, VAPOR |
| 37 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 38 |
0437232 |
SOLENOID ASSEMBLY, priming |
| 57 |
0333407 |
FLEXIBLE, filtre à carburant vers pompe à carburant |
| 61 |
0336842 |
CLIP, SPRING |
| 80 |
0339276 |
SERRE-FILS |
| 81 |
0339278 |
COLLIER DE SERRAGE |
| 82 |
0335231 |
O-RING, primer solenoid to bracket |
| 83 |
0339279 |
COLLIER DE SERRAGE, conduite de carburant |
| 85 |
0349010 |
HOSE, Fuel connector to filter |
| 86 |
0336131 |
HOSE, Bracket to manifold - Stbd |
| 89 |
0336132 |
HOSE, Bracket to port manifold |
| 91 |
0339277 |
CLAMP, Exh back pressure hose |
| 0436695 |
ENSEMBLE |
SÉPARATEUR DE VAPEUR 0436695 |
| 0436695 |
VAPOR |
SEPARATOR 0436695 |
