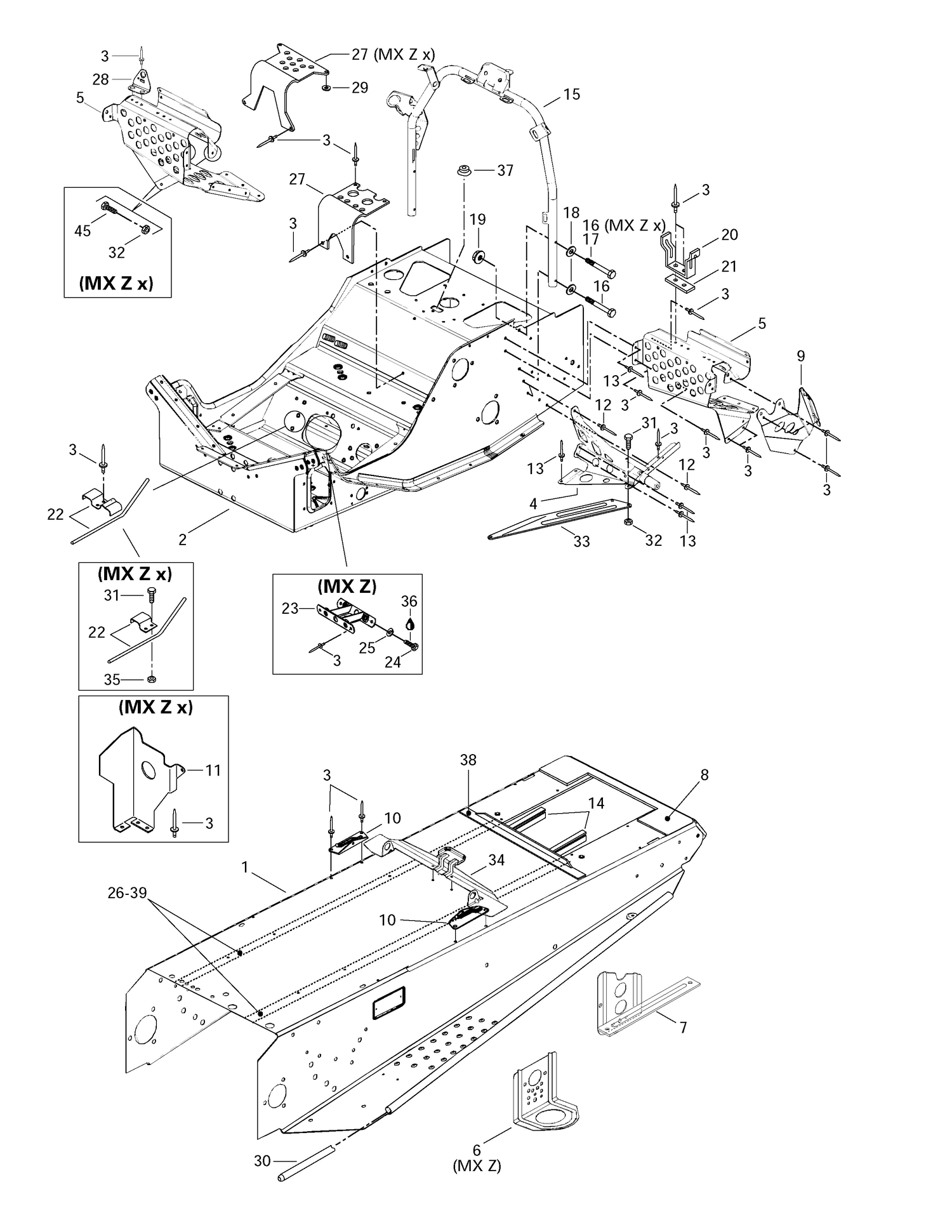

| Ref | Part Number | Description |
|---|
| 3 |
390402200 |
Pop Rivet 3/16" |
| 10 |
518304747 |
RH Tank Bracket |
| 12 |
390909200 |
Avex Rivet |
| 13 |
390909100 |
Avex Rivet |
| 16 |
207064044 |
Hex. Screw M6 X 40 This part replaces 222064065. |
| 18 |
234061410 |
Flat Washer 6 mm This part replaces 224061151. |
| 19 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 20 |
518202100 |
Belt Guard Bracket |
| 21 |
518207500 |
REINFORCEMENT - Call your local BRP dealership |
| 28 |
518310206 |
Valve Bracket |
| 31 |
207151644 |
Hex. Screw M5 X 16 This part replaces 222051665. |
| 32 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
| 36 |
293800005 |
Loctite 271, 10 ml This part replaces 413707400. |
| 518304748 |
LH |
Tank Bracket 518304748 |
| 518318119 |
RH |
Lower Front Footrest 518318119 |
| 518318120 |
LH |
Lower Front Footrest 518318120 |
