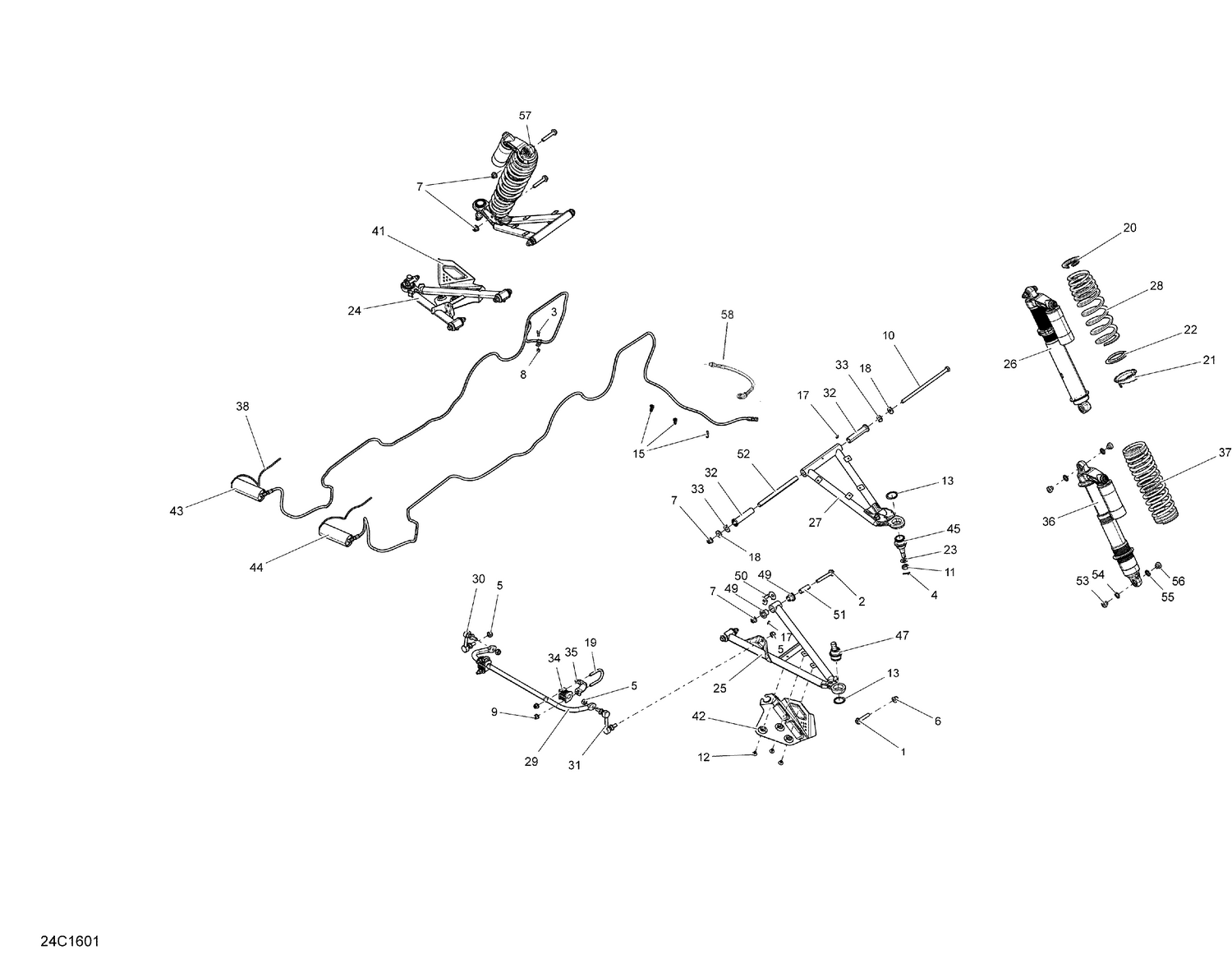

07- Front Suspension
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207605044 | Hex. Flange Screw M10 X 50 |
| 2 | 207607046 | Hex. Flange Screw M10 X 70 |
| 4 | 211400017 | Cotter Pin |
| 6 | 233201414 | Hex. Flange Elastic Nut M10 |
| 7 | 233201436 | Hex. Flange Elastic Nut M10 |
| 10 | 250001032 | Hex. Cap Screw M10 X 225 This part replaces 250000510. |
| 11 | 250100099 | Nut M12 |
| 12 | 293150104 | Pop Rivet 3/16" |
| 13 | 293370035 | Circlip |
| 17 | 408200700 | Grease Fitting |
| 18 | 503190439 | Washer |
| 20 | 706000567 | Spring Stopper |
| 21 | 706000910 | Adjustment Ring |
| 22 | 706000911 | Protector Ring |
| 23 | 706200281 | Hardened Washer This part replaces 250200086. |
| 24 | 706200742 | LH Lower Suspension Arm |
| 25 | 706200744 | RH Lower Suspension Arm |
| 27 | 706200796 | Suspension Upper Arm |
| 32 | 706201062 | Cushion |
| 33 | 706201063 | Wear Plate |
| 37 | Not | Available As Spare Part - Not Available |
| 41 | 706201669 | LH Protector |
| 42 | 706201670 | RH Protector |
| 45 | 706202044 | Ball Joint |
| 47 | 706202045 | Ball Joint |
| 49 | 703500875 | Suspension Arm Bushing Kit This part replaces 706202088. |
| 50 | 703500875 | Suspension Arm Bushing Kit This part replaces 706202089. |
| 52 | 706202445 | Bushing |
| 55 | 715900251 | Spherical Bearing |
| 56 | 715900252 | Retaining Ring |
| 57 | 207605544 | Hex. Flange Screw M10 X 55 |
