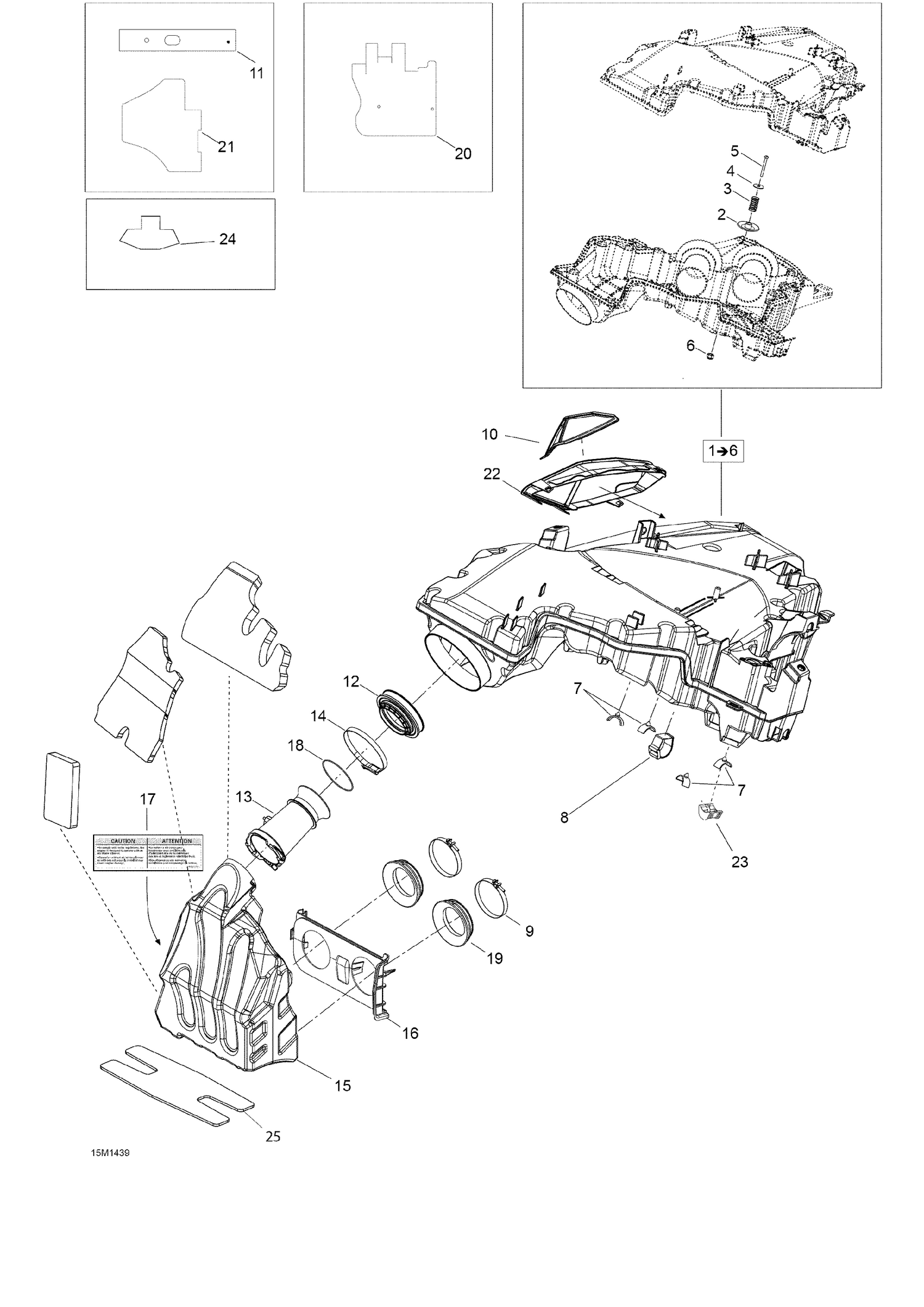

02- Air Intake System
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 2 | Not | Available As Spare Part - Check Valve |
| 3 | 508000576 | Spring |
| 4 | 224060201 | Flat Washer |
| 5 | 205444086 | Socket Head Screw M4 X 40 |
| 6 | 232541414 | Elastic Stop Nut M4 |
| 7 | 508000537 | Stopper |
| 8 | 508000820 | Velcro Strip This part replaces 508000532. |
| 9 | 508000346 | Gemi Clamp |
| 10 | 508000609 | Air Filter |
| 11 | 508000677 | Heat Shield |
| 12 | 508000548 | Boot |
| 13 | 508000662 | Flute |
| 14 | 514052983 | Norma Gear Clamp |
| 15 | 508000660 | Primary Chamber Ass'y |
| 16 | 508000613 | Plate Adapter |
| 17 | 516004651 | Caution Label, Air Intake |
| 18 | 293300115 | O-Ring |
| 19 | 508000614 | Air Intake Adapter |
| 20 | 508000675 | Heat Shield |
| 21 | 508000676 | Heat Shield |
| 22 | 508001020 | Adaptor This part replaces 508000569. |
| 23 | 508000572 | Bumper |
| 24 | 508000677 | Heat Shield |
