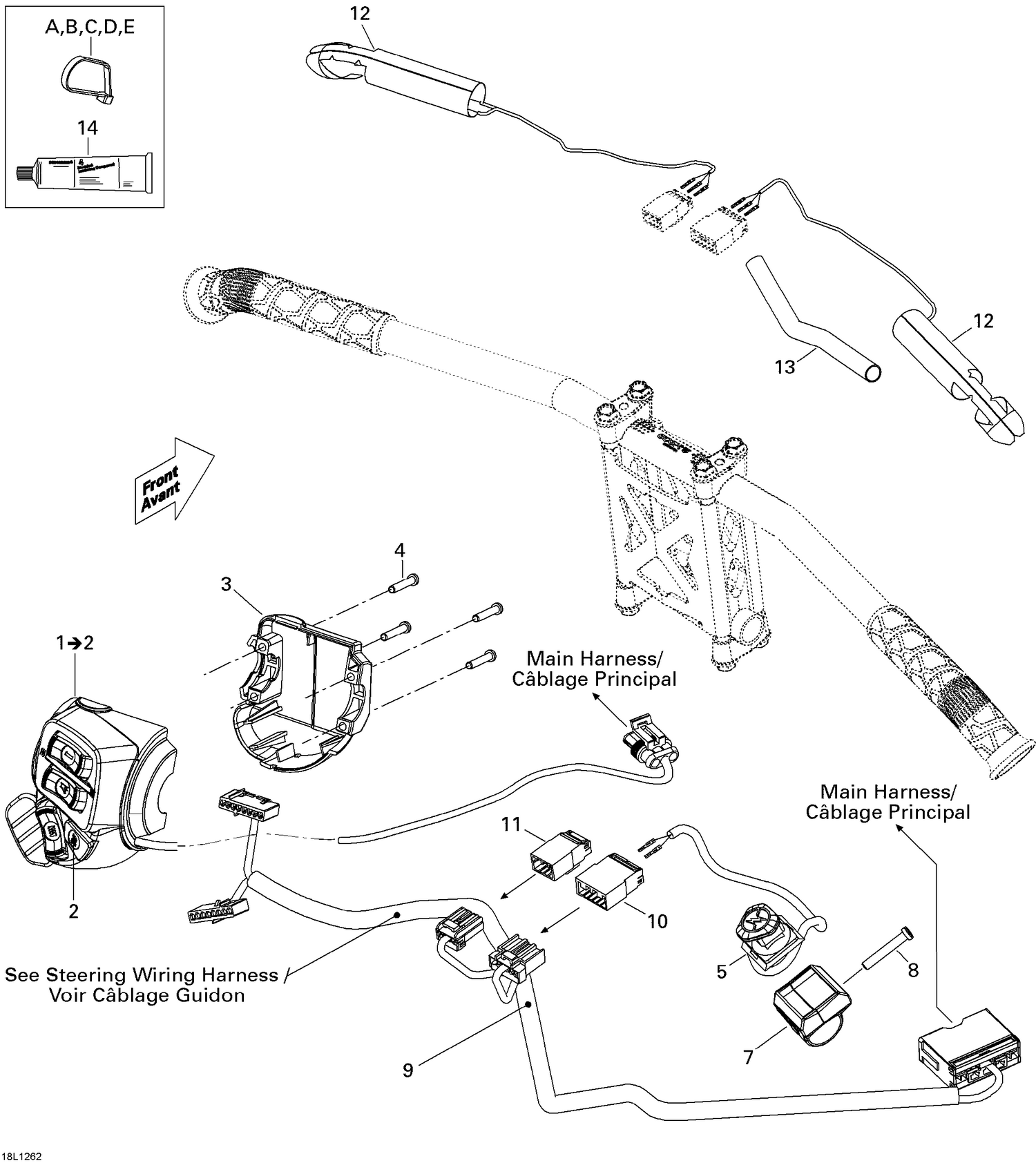

10- Electrical Accessories, Steering
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| A | 293750001 | Tie-Rap 94 mm |
| B | 293750002 | Tie-Rap 142 mm |
| C | 293750009 | Tie-Rap 173 mm |
| D | 414115200 | Tie-Rap 180 mm |
| 2 | 515176088 | Start/RER Button |
| 3 | 515175926 | Housing Switch Plate |
| 4 | 250000263 | Torx Screw #8-18 |
| 5 | 515177362 | Kill Switch This part replaces 515177061. |
| 7 | 515177310 | Emergency Stop Switch Support This part replaces 515176825. |
| 8 | 250000263 | Torx Screw #8-18 |
| 9 | 515176867 | STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership |
| 10 | 515175817 | Male Terminal Housing, 8 Circuits |
| 11 | 515175662 | Male Terminal Housing, 6 Circuits |
| 12 | 506152467 | Heated Film 25W |
| 13 | 515175830 | Low Temperature Tubing 1/2” |
| 14 | 293550004 | Dielectric Grease, 150 g |
