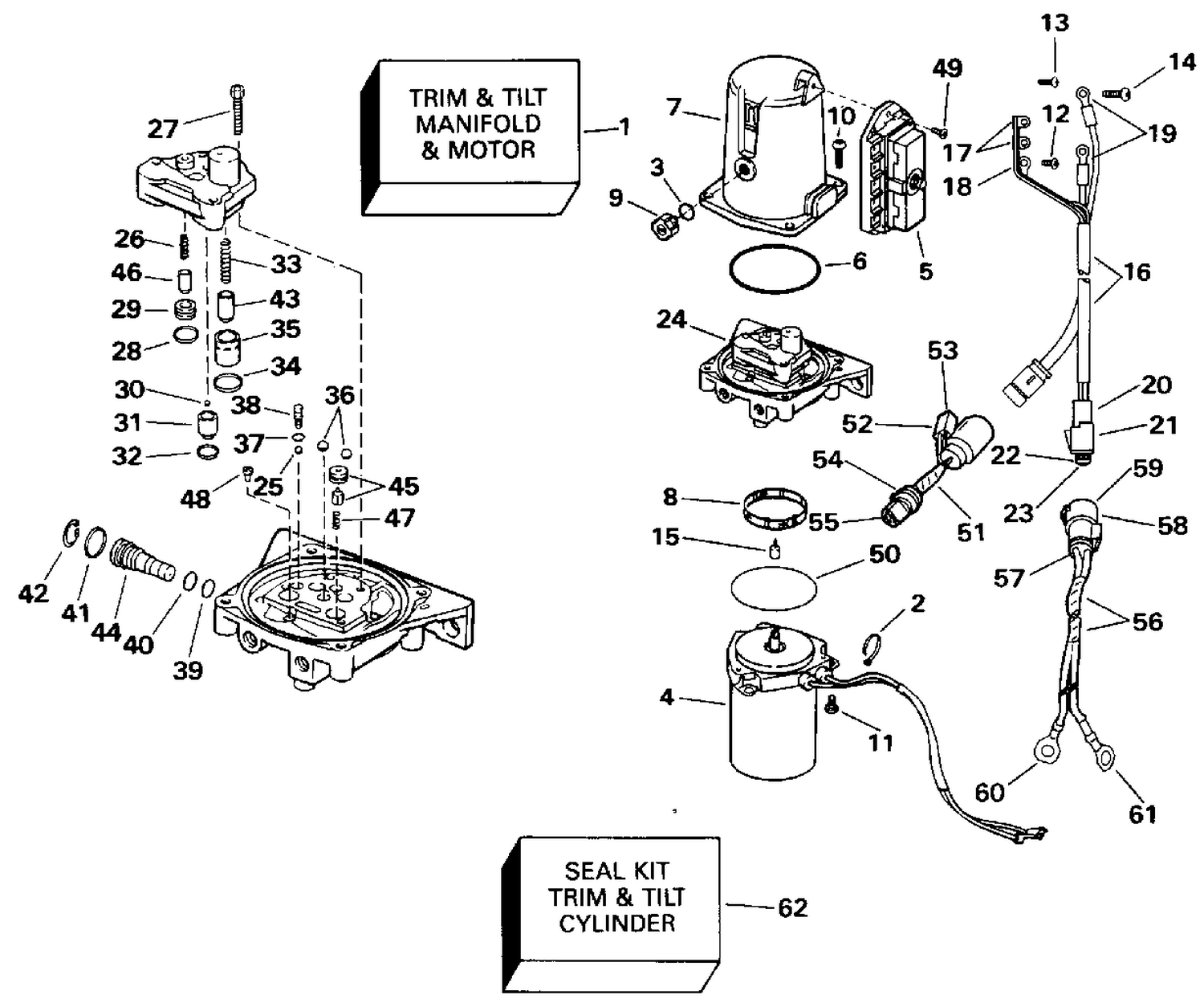

| Ref | Part Number | Description |
|---|
| 1 |
3860879 |
Manifold & Pump Ay This part replaces 0986914. |
| 2 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 4 |
0986280 |
MOTOR ASSY |
| 5 |
0986281 |
RELAY & CIRCUIT BREAKER ASSY |
| 6 |
3852508 |
O-RING, Reservoir This part replaces 0910702. |
| 7 |
0986535 |
RESERVOIR |
| 8 |
0914045 |
FILTER |
| 9 |
0914047 |
PLUG, Fill hole |
| 10 |
0914048 |
SCREW, Reservoir to manifold |
| 11 |
0914049 |
SCREW, Motor to manifold |
| 12 |
0914050 |
SCREW, Terminal |
| 13 |
0914051 |
SCREW, Terminal |
| 14 |
0914052 |
SCREW, Terminal |
| 16 |
3854038 |
CABLE ASSY This part replaces 0986961. |
| 17 |
0510827 |
RING TERMINAL |
| 24 |
3850033 |
Manf This part replaces 0986278. |
| 25 |
0800128 |
BALL |
| 26 |
0911965 |
SPRING, Pump relief |
| 27 |
0914054 |
SCREW, Pump to manifold |
| 28 |
0914055 |
O-RING, Valve seat |
| 29 |
0914056 |
BALL, Piston, pump control |
| 30 |
0914057 |
BALL Piston, pump control |
| 31 |
0914058 |
PISTON pump control |
| 32 |
0914059 |
O-RING, Piston, pump control |
| 33 |
0914060 |
SPRING, Valve core, trim up |
| 34 |
0914061 |
O-RING, Valve seat, trim up |
| 35 |
0914062 |
SEAT, Valve core, trim up |
| 37 |
0914064 |
O-RING, Cap manual release |
| 38 |
0914065 |
CAP, Manual release |
| 39 |
0914066 |
BACK-UP RING, Manual release |
| 40 |
0914067 |
O-RING, Manual release |
| 41 |
0914068 |
O-RING, Manual release |
| 43 |
0983786 |
VALVE CORE & SEAL |
| 44 |
0986279 |
VALVE, Manual release |
| 45 |
0986283 |
CHECK VALVE ASSY |
| 46 |
0986284 |
VALVE CORE & SEAL ASSY |
| 47 |
0914046 |
SPRING, Check valve |
| 48 |
0914712 |
FILTER, Oil |
| 51 |
0435016 |
TRIM CABLE ASSY. |
| 56 |
0435017 |
BATTERY CABLE ASSY. |
| 61 |
3852527 |
RING TERMINAL This part replaces 0911523. |
