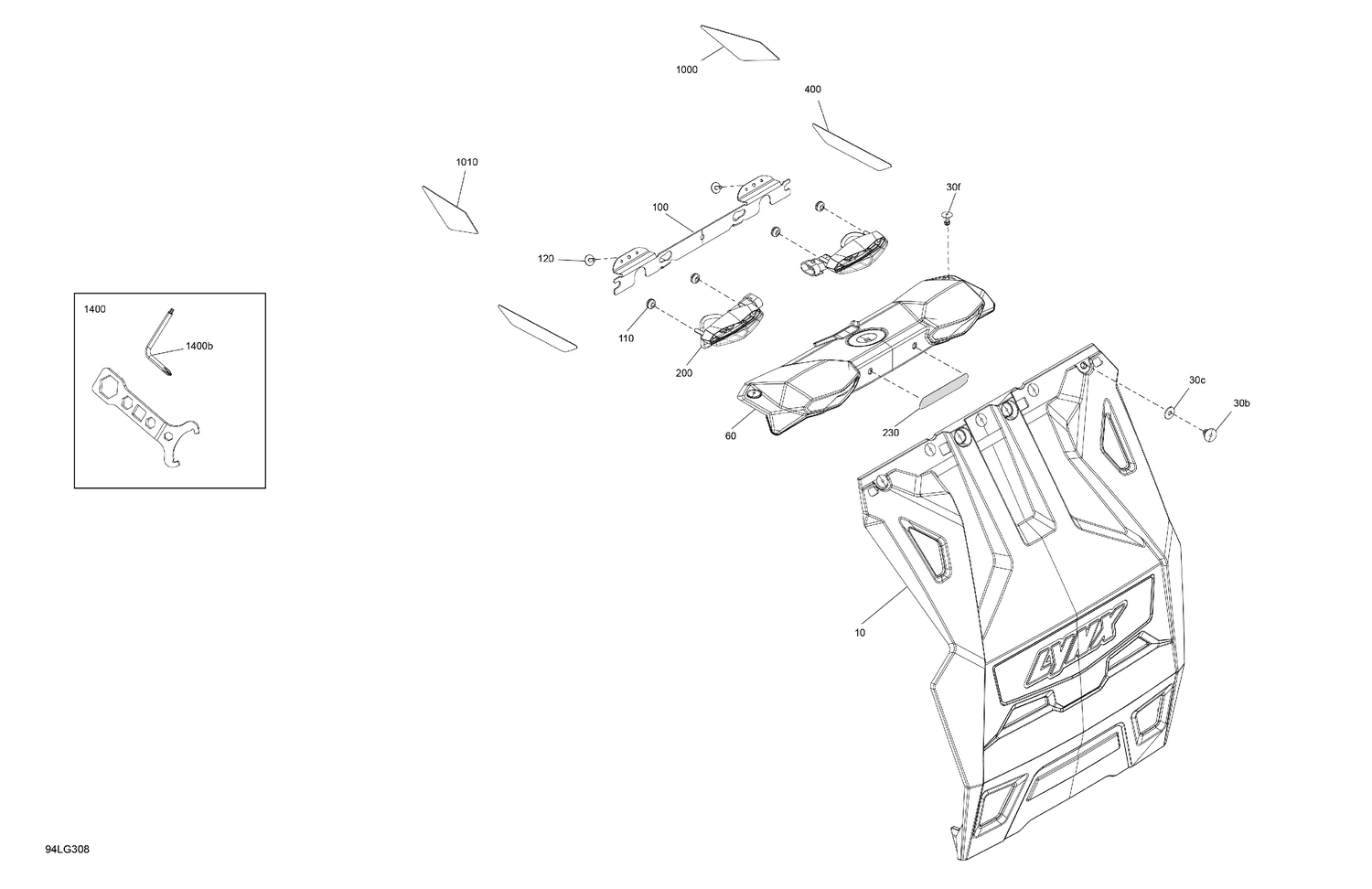

09- Miscellaneous - Utilities
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001886 | Snow Guard |
| 30b | 293150321 | Black, Rivet Ornit 4.8 X 14 |
| 30c | 517124300 | Washer |
| 30f | 293150308 | Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 60 | 520001701 | Light Fairing |
| 100 | 520001773 | Rear Light Support Plate |
| 110 | 293720101 | Grommet |
| 120 | 250000805 | Plastite Screw M4 X 10 |
| 200 | 520003188 | Tail Light |
| 230 | 520003632 | Red. Rear Reflector |
| 400 | 520003529 | Red, LH/RH Rear Reflector |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
