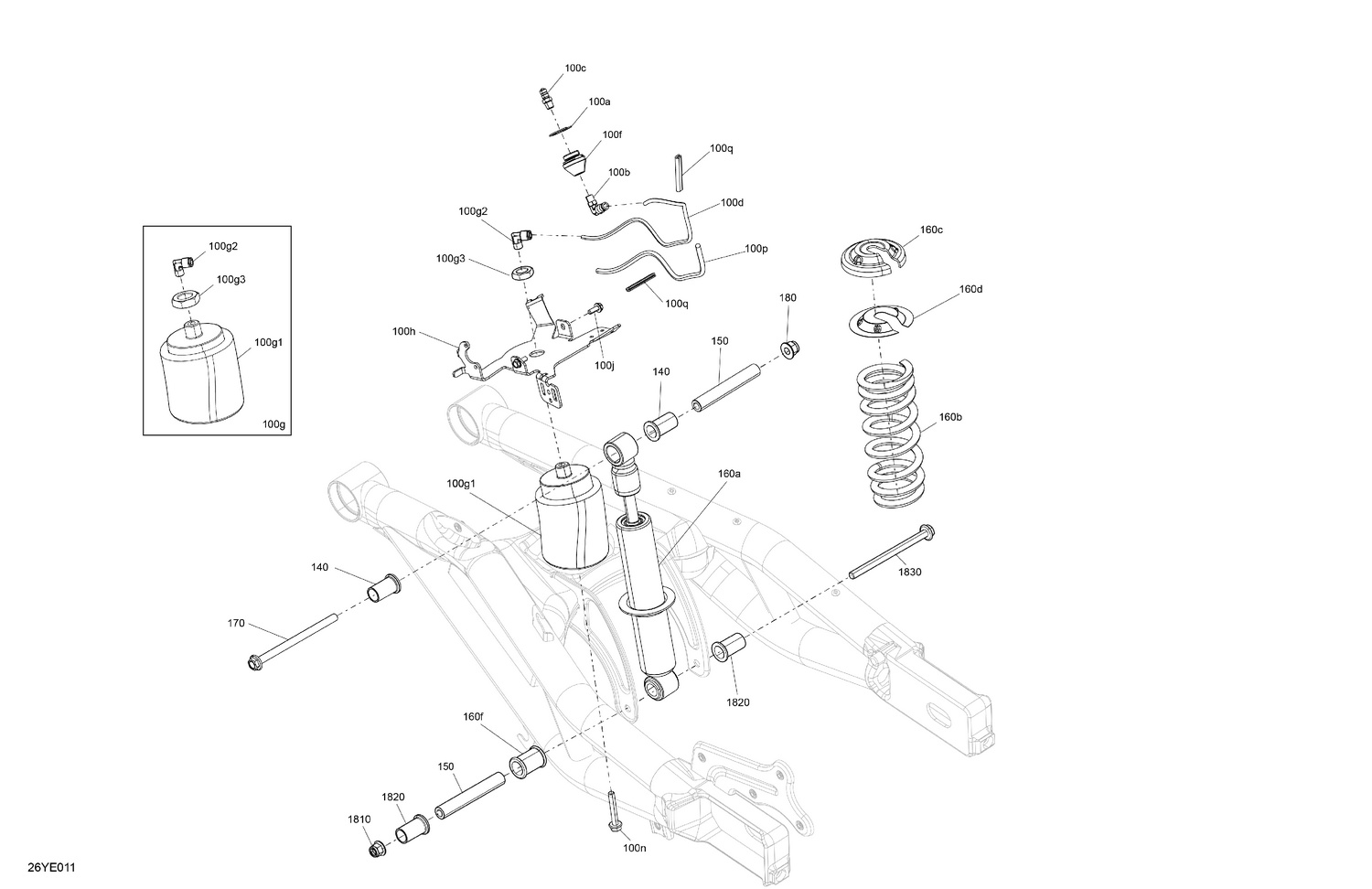

05- Suspension - Rear Shock
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 100a | 293370123 | Circlip |
| 100b | 706000928 | Elbow 90° |
| 100c | 706002797 | Air Valve |
| 100d | 219704415 | Hose 4.32Mm 3000Mm Long |
| 100f | 706004028 | Pneumatic Connector |
| 100g1 | 219800175 | Air Damper Kit |
| 100g2 | 706001018 | Elbow 90° |
| 100g3 | 250100119 | Jam Nut M20 |
| 100h | 706005195 | Shock Absorber Anchorage |
| 100j | 210261650 | Hex. Flange Screw M6 X 16 |
| 100n | 207685044 | Hex. Flange Screw M8 X 50 |
| 100p | 219704425 | Tubing 6 Mm 3000Mm Long |
| 100q | 219704620 | Trim - 70 mm |
| 140 | 706000410 | Spacer |
| 150 | 706000409 | Shock Absorber Shaft |
| 160a | 706005089 | Shock Absorber |
| 160b | 706005088 | Compression Spring |
| 160c | 503193781 | Spring Stopper |
| 160d | 503193782 | Cap |
| 160f | 503191609 | Urethane Cushion |
| 170 | 230605034 | Hex.Flange Screw M10 X 150 |
| 180 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 1810 | 233201434 | Hex. Flange Elastic Nut M10 |
| 1820 | 706000410 | Spacer |
