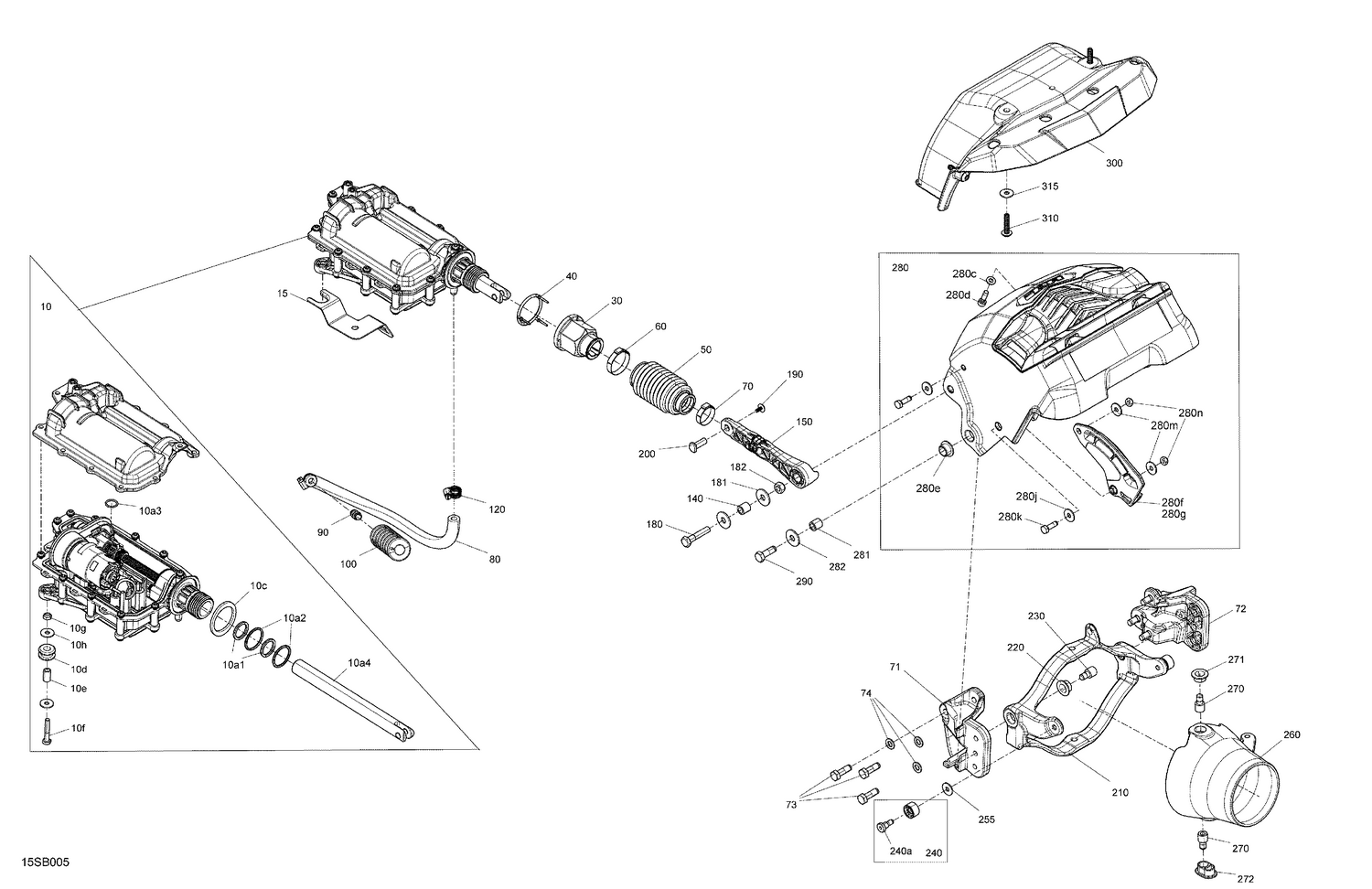

| Ref | Part Number | Description |
|---|
| 10a1 |
279000108 |
O-Ring |
| 10a2 |
293300107 |
O-Ring |
| 10a3 |
293300187 |
O-Ring |
| 10a4 |
278003027 |
Output Shaft |
| 10c |
268000208 |
Gasket |
| 10d |
293720104 |
Grommet |
| 10e |
271001020 |
Spacer |
| 10f |
207063560 |
Hex. Screw M6 X 35 |
| 10g |
232561200 |
Brass Elastic Stop Nut M6 |
| 10h |
234062600 |
Flat Washer M6, Stainless |
| 15 |
268000210 |
Actuator Support |
| 30 |
268000308 |
IBR Nut |
| 40 |
277001977 |
Rubber Gasket |
| 50 |
268000186 |
Boot |
| 60 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 70 |
293650099 |
Crimp Clamp |
| 71 |
268000163 |
LH Reverse Support |
| 72 |
268000166 |
RH Reverse Support |
| 73 |
207382560 |
Hex. Screw M8 X 25, Scotch Grip |
| 74 |
234080600 |
Flat Washer M8, Stainless |
| 80 |
219704420 |
Was 509000407 Hose 8 mm |
| 90 |
293710157 |
Fitting-Straig |
| 100 |
268000211 |
Inner Boot |
| 120 |
293650172 |
Tridon Gear Clamp |
| 140 |
271001039 |
Spacer |
| 150 |
268000187 |
Reverse Rod |
| 180 |
207084060 |
Hex. Screw M8 X 40 |
| 181 |
234082600 |
Flat Washer 8 mm, Stainless |
| 182 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 190 |
250000565 |
Hexalob Screw M4 X 10 |
| 200 |
268000309 |
Shoulder Pin |
| 210 |
268000179 |
Trimming Ring |
| 220 |
293900007 |
Venturi Bushing |
| 230 |
268000141 |
Socket Head Screw M8 X 13 |
| 240a |
250000775 |
Screw-Socket Shoulder M8X8 |
| 250 |
250000775 |
Screw-Socket Shoulder M8X8 |
| 255 |
234062600 |
Flat Washer M6, Stainless |
| 260 |
267000705 |
Nozzle |
| 270 |
268000141 |
Socket Head Screw M8 X 13 |
| 271 |
293900007 |
Venturi Bushing |
| 272 |
293900010 |
Plastic Bushing |
| 280c |
234061600 |
Stainless Flat Washer M6 |
| 280d |
205562060 |
Socket Head Screw M6 X 20, Scotch Grip |
| 280e |
293900007 |
Venturi Bushing |
| 280f |
266000031 |
LH Ramp Trim |
| 280g |
266000032 |
RH Ramp Trim |
| 280j |
234062600 |
Flat Washer M6, Stainless |
| 280k |
207362060 |
Hex. Screw M6 X 20, Scotch Grip |
| 280m |
234062600 |
Flat Washer M6, Stainless |
| 280n |
232561200 |
Brass Elastic Stop Nut M6 |
| 281 |
271001039 |
Spacer |
| 282 |
234082600 |
Flat Washer 8 mm, Stainless |
| 290 |
207382560 |
Hex. Screw M8 X 25, Scotch Grip |
| 300 |
268000189 |
Guard |
| 310 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 315 |
234062600 |
Flat Washer M6, Stainless |
| 350 |
293720104 |
Grommet |
| 360 |
271001020 |
Spacer |
| 370 |
207063560 |
Hex. Screw M6 X 35 |
| 380 |
232561200 |
Brass Elastic Stop Nut M6 |
