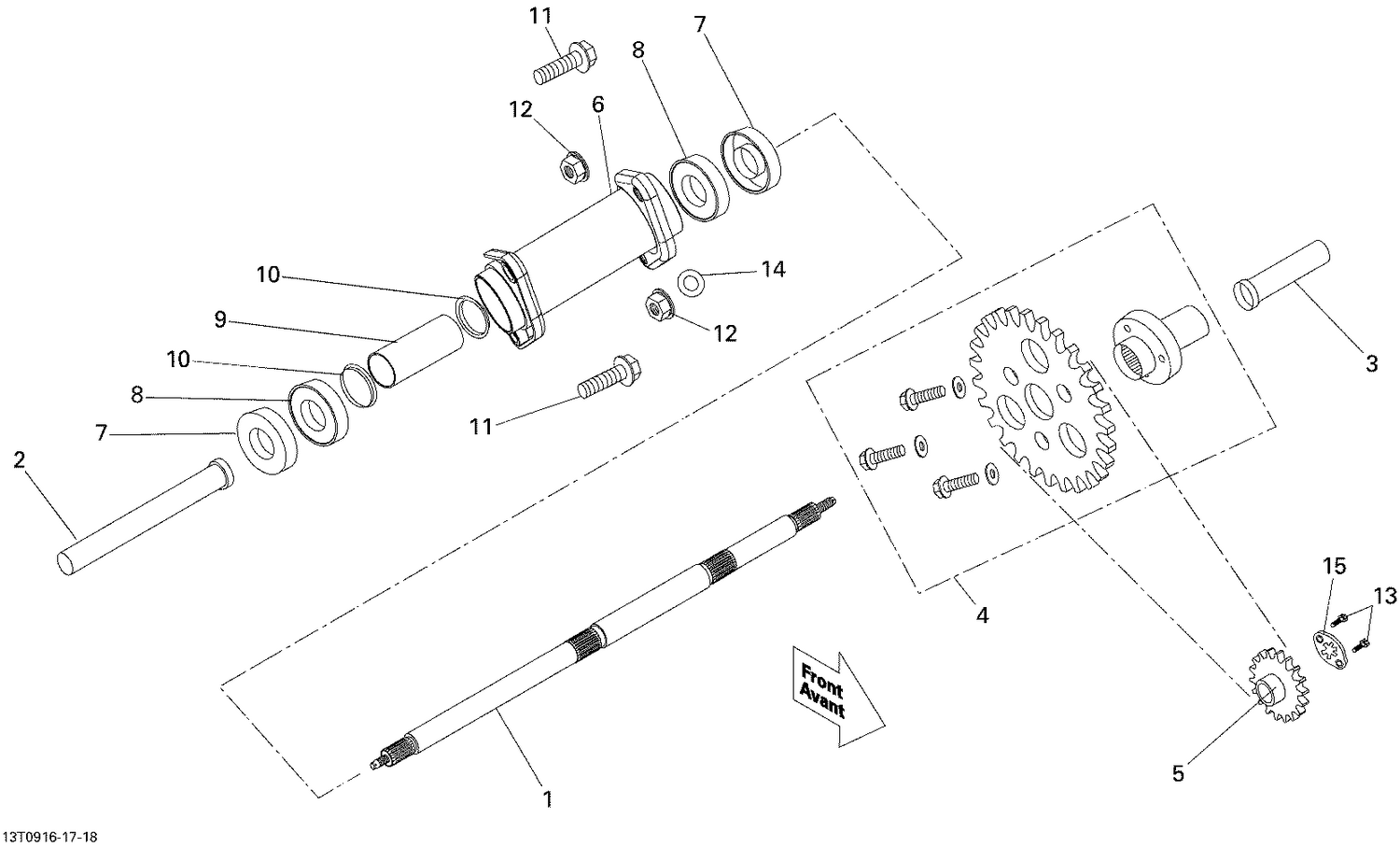

08- Drive System, Rear
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V23511DGF06H | Rear Wheel Axle This part replaces V23511DGF00H. |
| 2 | V44150DGF05HLL | RH Spacer Collar This part replaces V44150DGF01H. |
| 3 | V44160DGF04HLL | LH Spacer Collar This part replaces V44160DGF00HBK. |
| 4 | V15239DGF00HLL | Cam Chain Sprocket 40T This part replaces V15239DGF000. |
| 5 | V15237DGF010 | Cam Chain Sprocket 16T This part replaces V15237DGF000. |
| 6 | V52350MAA100BK | Rear Wheel Axle Seat Ass'y This part replaces V52350MAA080BK. |
| 7 | V91203MAA000 | Oil Seal |
| 8 | V961006006ZZ | Radial Ball Bearing This part replaces A961006006ZZ. |
| 9 | V44620MAA000 | Spacer |
| 10 | V51312MAA010 | Spacer This part replaces V51312MAA000. |
| 11 | V960001202801LL | Hex. Flange Bolt This part replaces V9600012028. |
| 12 | A9035012000G | Hexagonal Nut M12 This part replaces A9035012000. |
| 13 | V9200006010 | Screw |
| 14 | V941011326020 | Washer |
