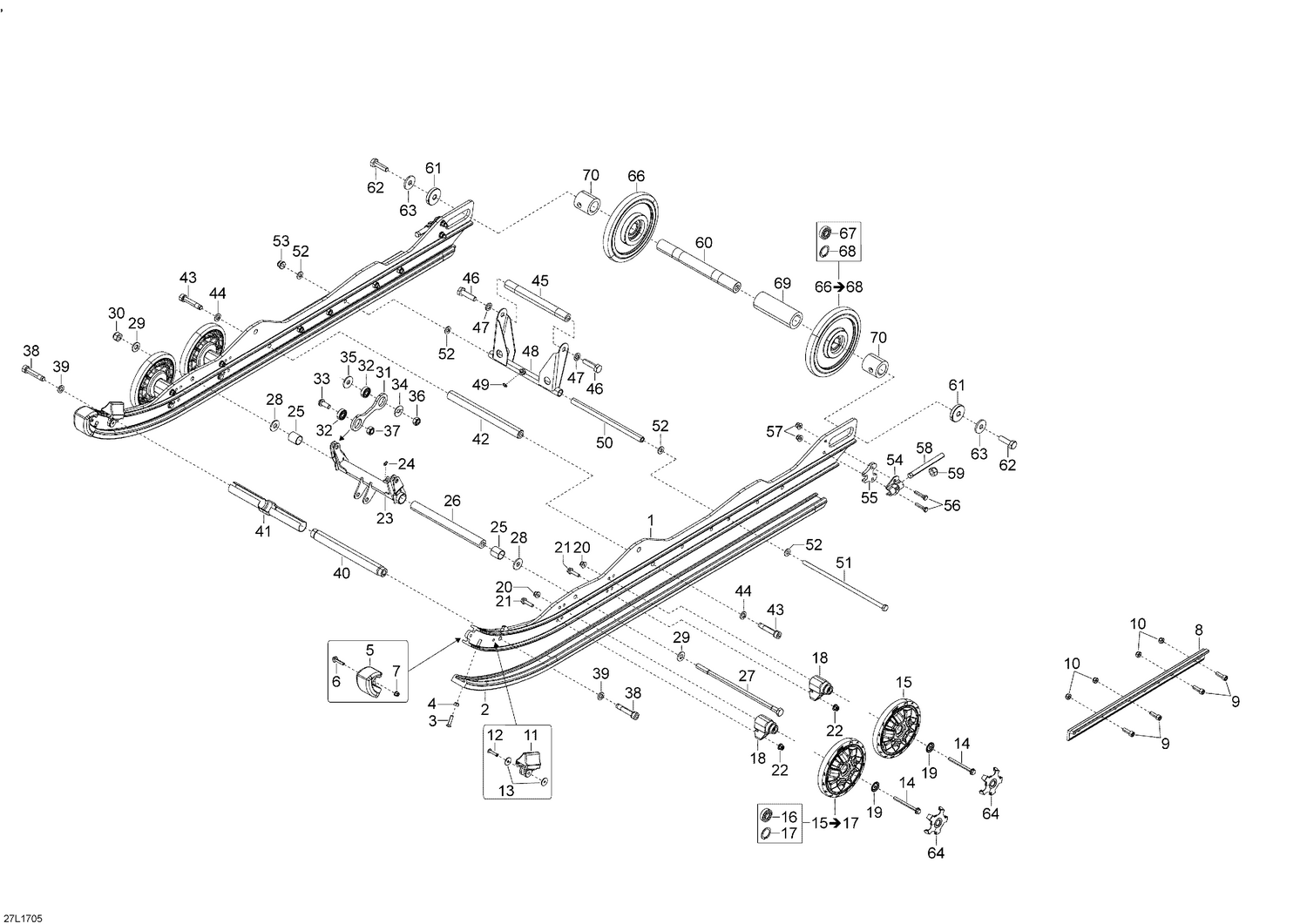

08- Rear Suspension
Parts (66)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503194379 | Black Runner |
| 2 | 503191499 | Black, Slider 146 |
| 3 | 208562531 | Phillips Screw M6 X 25 |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | 503192299 | Runner Protector |
| 6 | 207652544 | Hex. Flange Screw M5 X 25 |
| 7 | 233251434 | Flanged Elastic Nut M5 |
| 8 | 503194734 | Rail Reinforcement |
| 9 | 205082554 | Socket HD Screw M8 x 25 |
| 10 | 232581414 | Hex. Elastic Stop Nut M8 |
| 11 | 503192106 | Rubber Stopper |
| 12 | 293150142 | Pop Rivet 3/16" |
| 13 | 503191273 | Washer |
| 14 | 207667056 | Hex. Flange Screw M6 x 70 |
| 16 | 503190396 | Ball Bearing |
| 17 | Not | Available As Spare Part - Circlip |
| 18 | 503193894 | Casted Support |
| 19 | 503191820 | Wheel Cup M6 |
| 20 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 21 | 207662556 | Hex. Flange Screw M6 X 25 |
| 22 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 23 | 503193580 | Front Swing |
| 24 | 408200700 | Grease Fitting |
| 25 | 503193822 | Bushing |
| 26 | 503193893 | Lower Shaft |
| 27 | 503193227 | Bolt M10 X 251MM |
| 28 | 503191926 | Washer |
| 29 | 250200138 | Washer |
| 30 | 233601466 | Elastic Locking Nut M10 |
| 31 | 605254159 | Connecting Rod |
| 32 | 605631003 | Ball Bearing |
| 33 | 205402546 | Socket Screw BN.HD.ISO.7380 |
| 34 | 25004 | Cup Spring |
| 35 | 234002600 | Flat Washer 10 mm, Stainless |
| 36 | 233401414 | Lock Spring Nut M10 |
| 37 | 232500416 | Elastic Stop Nut M10 |
| 38 | 205505054 | Socket Screw |
| 39 | 503192496 | Washer |
| 40 | 605353958 | Shaft |
| 41 | 605355096 | Limiter Strap Retainer |
| 42 | 5343471 | Shaft |
| 43 | 205505054 | Socket Screw |
| 44 | 503192496 | Washer |
| 45 | 503193638 | Lower Shaft |
| 46 | 207204044 | Hex Cap Screw Din.931 S.grip |
| 47 | 503192496 | Washer |
| 48 | 503194342 | Rear Swing |
| 49 | 408200700 | Grease Fitting |
| 50 | 503189156 | Pivot Axle |
| 51 | 503194069 | Bolt M8 |
| 52 | 503192494 | Washer |
| 53 | 233281466 | Elastic Flang Nut M8 |
| 54 | 503192583 | Tensioner This part replaces 503192814. |
| 55 | 503193250 | Spacer |
| 56 | 207063054 | Hex. Cap Screw M6 X 30 |
| 57 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 58 | 230100054 | Hex Screw M10 x 100 |
| 59 | 233601466 | Elastic Locking Nut M10 |
| 60 | 503194091 | Rear Shaft |
| 61 | 503192735 | Rear Axle Washer |
| 62 | 250000592 | Hex. Cap Screw M10 x 35 |
| 63 | 503183300 | Washer |
| 64 | 503193735 | Black Wheel Cap |
| 67 | 293350115 | Ball Bearing This part replaces 293350055. |
| 68 | Not | Available As Spare Part - Circlip |
| 69 | 5448027 | Spacer |
