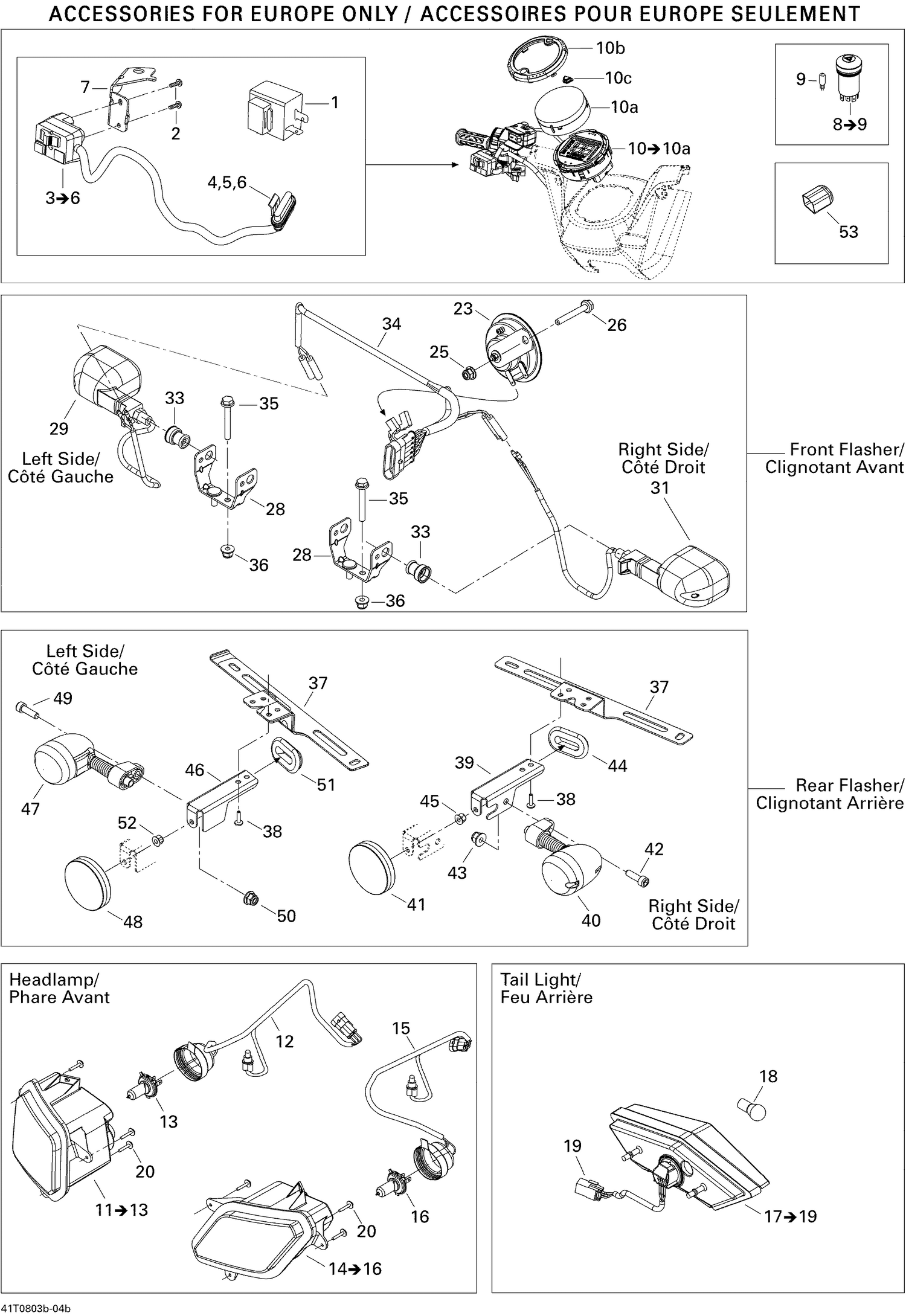

| Ref | Part Number | Description |
|---|
| 1 |
710000581 |
FLASHER UNIT - Call your local BRP dealership |
| 2 |
207141260 |
Screw Hex. M4 X 12 |
| 4 |
710000780 |
Connector |
| 5 |
278001014 |
Female Terminal |
| 6 |
278001013 |
Wire Seal |
| 7 |
710000905 |
Switch Support |
| 9 |
710000661 |
EMERGENCY SWITCH LIGHT BULB - Call your local BRP dealership |
| 10a |
415129319 |
LENS - Call your local BRP dealership |
| 10b |
710001416 |
Trim Ring |
| 10c |
710001473 |
Button This part replaces 710001417. |
| 12 |
710000923 |
Headlamp Harness |
| 13 |
710000871 |
Bulb, 12V 35/35W |
| 15 |
710000923 |
Headlamp Harness |
| 16 |
710000871 |
Bulb, 12V 35/35W |
| 18 |
520000758 |
Bulb This part replaces 410504100. |
| 19 |
515175494 |
Male Housing, 3 Circuits |
| 20 |
250000101 |
Plastite Screw Type K-40, M4 X 25 |
| 23 |
710004791 |
Horn This part replaces 710001281. |
| 25 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 26 |
207664544 |
Hex. Flange Screw M6 X 45 |
| 28 |
710000978 |
SUPPORT *BRACKET - Call your local BRP dealership |
| 29 |
710000546 |
Flasher |
| 31 |
710000547 |
Flasher |
| 33 |
710001826 |
CAP GUARD - Call your local BRP dealership This part replaces 710000765. |
| 34 |
710000814 |
Front Fender Harness |
| 35 |
207664544 |
Hex. Flange Screw M6 X 45 |
| 36 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 37 |
710001241 |
BRACKET - Call your local BRP dealership |
| 38 |
390402400 |
Pop Rivet 3/16" |
| 39 |
710001329 |
BRACKET - Call your local BRP dealership |
| 40 |
710001079 |
FLASHING LIGHT ASS'Y - Call your local BRP dealership |
| 41 |
705011221 |
Red Reflector This part replaces 705002408. |
| 42 |
205062044 |
Socket Head Screw M6 X 20 |
| 43 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 44 |
705003668 |
Oblong Grommet This part replaces 705002665. |
| 45 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 46 |
710001330 |
BRACKET - Call your local BRP dealership |
| 47 |
710001080 |
FLASHING LIGHT ASS'Y - Call your local BRP dealership |
| 48 |
705011221 |
Red Reflector This part replaces 705002408. |
| 49 |
205062044 |
Socket Head Screw M6 X 20 |
| 50 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 51 |
705003668 |
Oblong Grommet This part replaces 705002665. |
| 52 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
