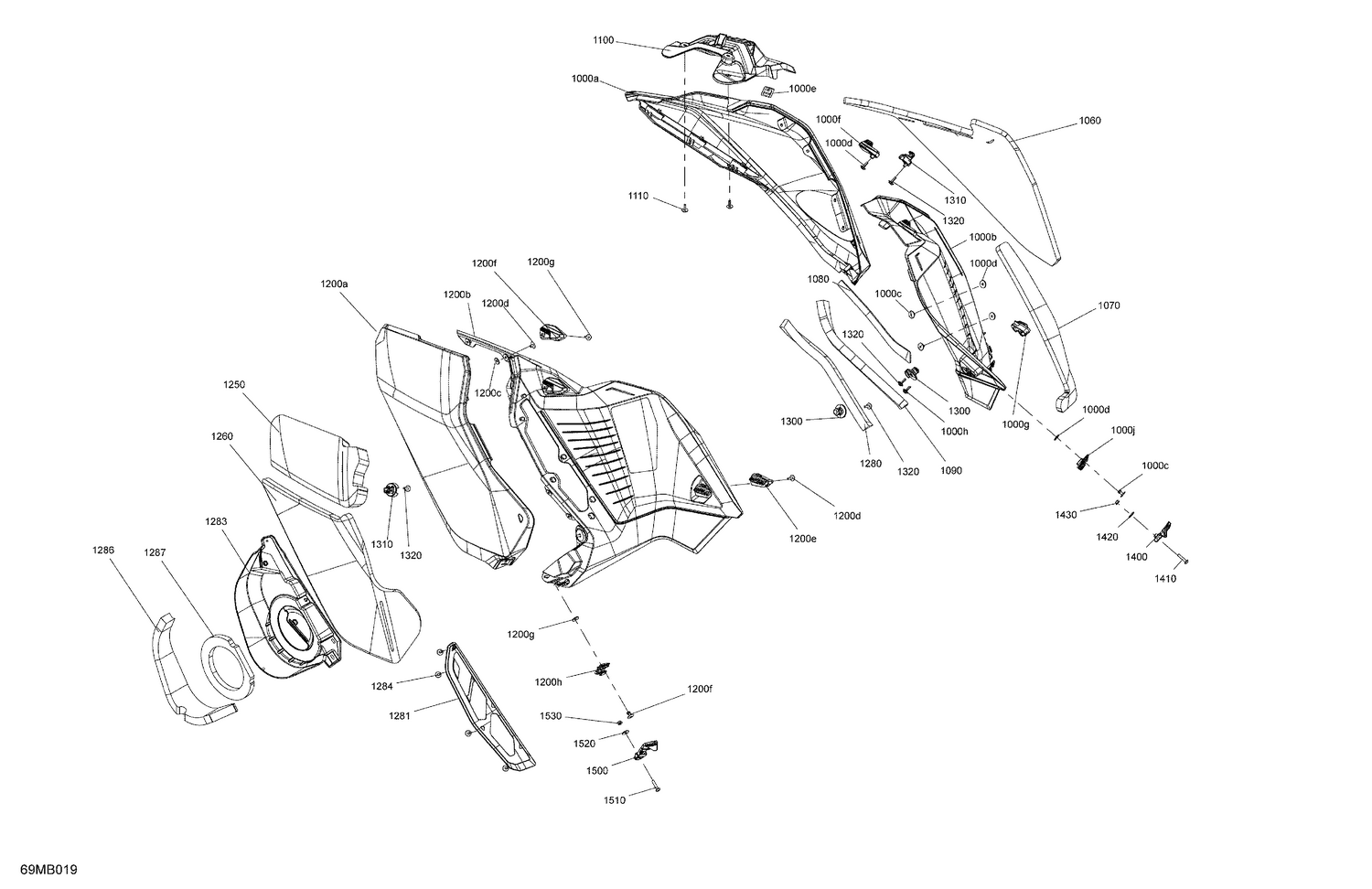

07- Body - Side Panels
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1000b | 517305861 | Deep Black, RH Panel Trim |
| 1000c | 293150104 | Pop Rivet 3/16" |
| 1000d | 517124300 | Washer |
| 1000e | 517305109 | Rivet Plate |
| 1000f | 517305773 | RH Rear Latch |
| 1000g | 517305979 | RH Front Latch |
| 1000h | 250000725 | Screw M4 X 16 |
| 1000j | 517306311 | RH Hook |
| 1060 | 517305767 | RH Central Panel Foam |
| 1070 | 517306116 | RH Rear Panel Foam |
| 1080 | 517306262 | Rubber Sheet |
| 1090 | 517306480 | RH Rear Panel Foam |
| 1100 | 517307546 | RH Grille |
| 1110 | 250000725 | Screw M4 X 16 |
| 1200b | 517306935 | Deep Black, LH Panel Trim |
| 1200c | 293150104 | Pop Rivet 3/16" |
| 1200d | 517124300 | Washer |
| 1200e | 517305774 | LH Rear Latch |
| 1200f | 517305980 | LH Front Latch |
| 1200g | 250000725 | Screw M4 X 16 |
| 1200h | 517306312 | LH Hook |
| 1250 | 517305769 | LH Front Panel Foam |
| 1260 | 517305770 | LH Central Panel Foam |
| 1280 | 517306479 | LH Rear Panel Foam |
| 1281 | 517306937 | LH Grille |
| 1283 | 517307283 | Duct |
| 1284 | 250000725 | Screw M4 X 16 |
| 1286 | 517306960 | Duct Foam |
| 1287 | 517307639 | Foam |
| 1300 | 517305985 | Rear Stud |
| 1310 | 517305988 | Front Stud |
| 1320 | 250000725 | Screw M4 X 16 |
| 1400 | 517306309 | RH Lower Latch |
| 1410 | 250000762 | Torx Screw M5 X 25 |
| 1420 | 517124300 | Washer |
| 1430 | 233151414 | Hex. Flange Nut M5 |
| 1500 | 517306310 | LH Lower Latch |
| 1510 | 250000762 | Torx Screw M5 X 25 |
| 1520 | 517124300 | Washer |
