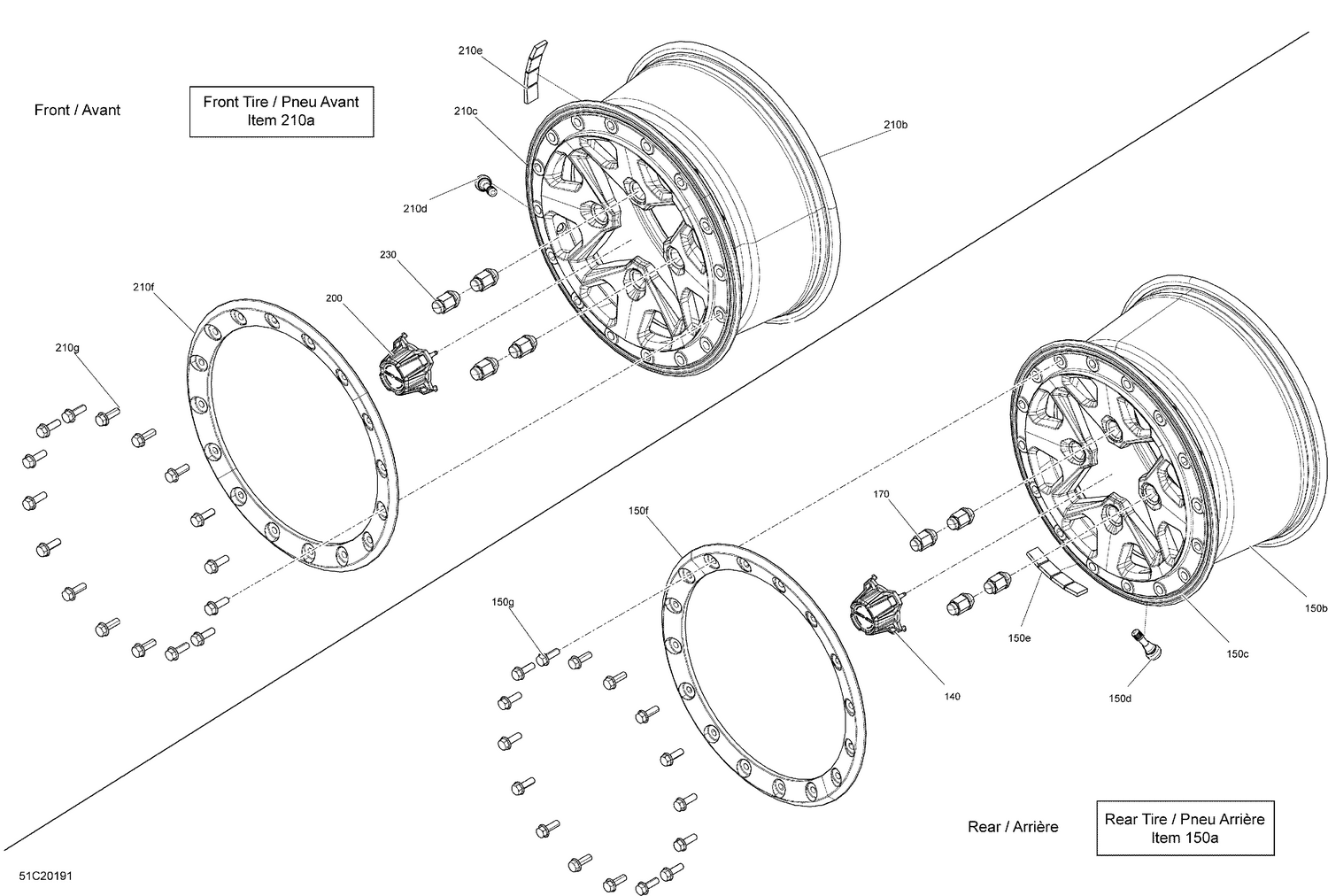

08- Wheels - XDS
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 140 | 705401841 | Wheel Cap |
| 150a | 705502604 | Rear Tire |
| 150b | 705502814 | Deep Black, 14" Rim |
| 150c | 293450360 | Insert |
| 150d | 705402595 | Tire Valve Ass'y |
| 150f | 705402472 | Disc Plate |
| 150g | 250000893 | Flange Screw M8 X 25 |
| 170 | 250100196 | Black, Wheel Nut M12 X 1.50 |
| 200 | 705401841 | Wheel Cap |
| 210a | 705402081 | Front Tire 29X9R14 |
| 210b | 705502814 | Deep Black, 14" Rim |
| 210c | 293450360 | Insert |
| 210d | 705402595 | Tire Valve Ass'y |
| 210f | 705402472 | Disc Plate |
| 210g | 250000893 | Flange Screw M8 X 25 |
