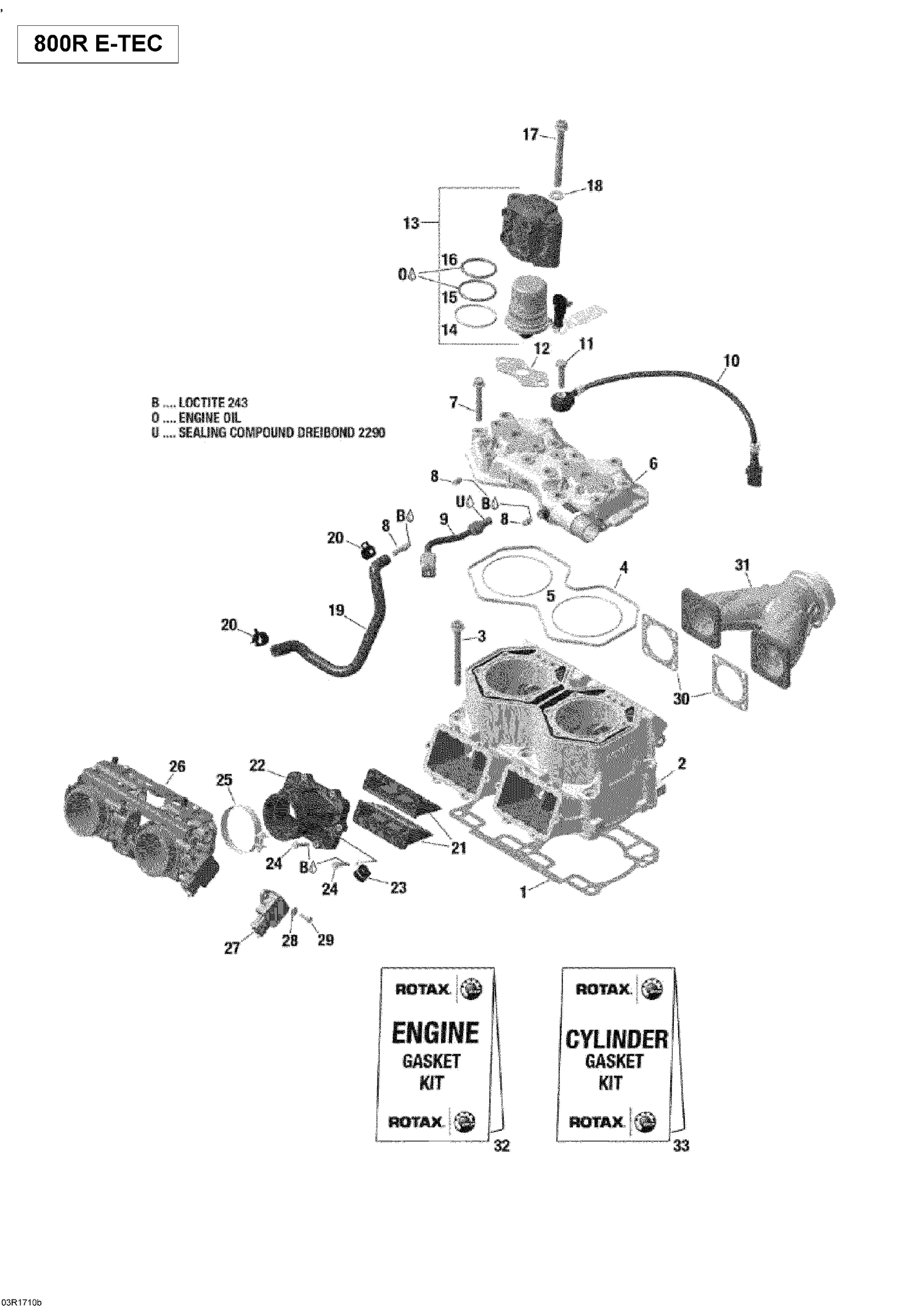

01- Cylinder And Cylinder Head - 800R E-TEC
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420413041 | Cylinder |
| 3 | 420441187 | Torx Flange Screw M10 X 90 -SW 13/T50 |
| 6 | 420623304 | Head Cylinder Cover |
| 7 | 420941627 | Hex. Screw M8 X 56.5 |
| 8 | 420924724 | Hose Nipple |
| 10 | 270000484 | Noise Sensor |
| 11 | 207083544 | Hex. Screw M8 X 35 This part replaces 420940492. |
| 14 | 415129497 | Crush Ring |
| 15 | 415129498 | O-Ring |
| 16 | 415129499 | O-Ring |
| 17 | 420441187 | Torx Flange Screw M10 X 90 -SW 13/T50 |
| 18 | 420927411 | Flat Washer M10 This part replaces 420927410. |
| 19 | 420460867 | Molded Hose |
| 20 | 420853511 | Clamp |
| 21 | 420924798 | Reed Valve Ass'y |
| 22 | 420867333 | Intake Socket |
| 23 | 420851250 | Clamp |
| 24 | 420841550 | Tapping Screw M5 X 22 |
| 25 | 420851815 | Clamp |
| 26 | 420889202 | Throttle Body |
| 27 | 420866120 | Position Sensor |
| 28 | 234041600 | Flat Washer 4 mm, Stainless |
| 29 | 208641660 | Phillips Screw M4 X 16 |
| 31 | 420673374 | Exhaust Manifold This part replaces 420673373. |
| 32 | 420893500 | Gasket Set, Engine |
