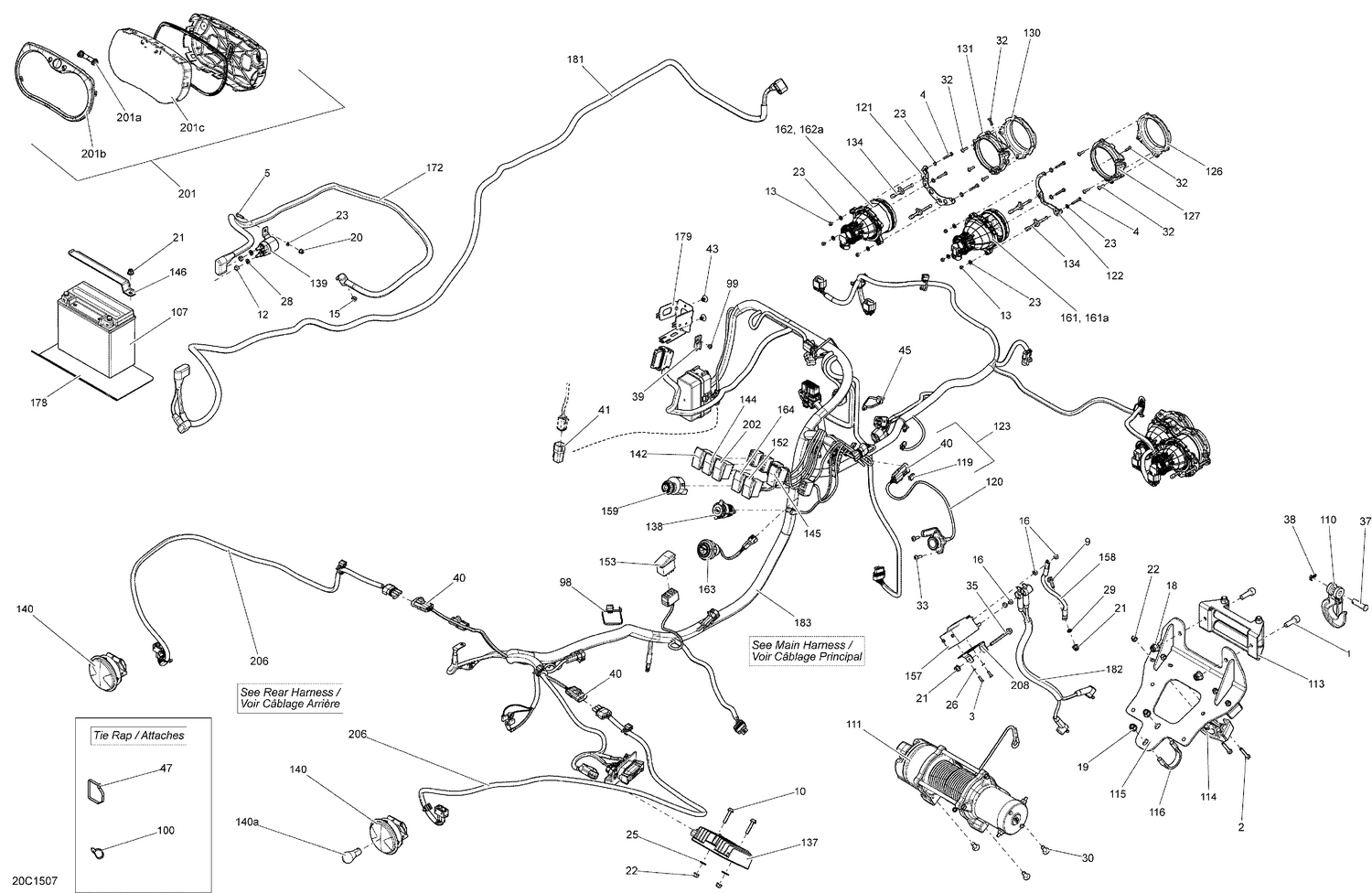

10- Electrical System _20C1507
Parts (91)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205003044 | Socket Screw M10 x 30 |
| 2 | 207064044 | Hex. Screw M6 X 40 |
| 3 | 207141044 | HEX. SCREW M4 X 10 - Call your local BRP dealership |
| 4 | 207142544 | Hex. Screw M4 X 25 |
| 5 | 207151644 | Hex. Screw M5 X 16 |
| 9 | 207662044 | Hex. Flange Screw M6 X 20 |
| 10 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
| 12 | 232061600 | Hex. Nut M6 |
| 13 | 232541414 | Elastic Stop Nut M4 |
| 15 | 232561414 | Elastic Stop Nut M6 |
| 16 | 232561434 | Elastic Stop Nut M6 |
| 18 | 233201414 | Hex. Flange Elastic Nut M10 |
| 19 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 20 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 21 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 22 | 233261494 | Hex. Flange Elastic Nut M6 |
| 23 | 234051410 | Flat Washer M5 |
| 25 | 234062670 | Stainless Steel Flat Washer |
| 26 | 234141601 | Lock Washer 4 mm |
| 28 | 234161601 | Lock Washer Helical M6 |
| 29 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 30 | 235382046 | TORX SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership |
| 32 | 250000723 | Phillips Screw K40 X 16 |
| 33 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 35 | 250000778 | Hex. Flange Screw M6 X 60 This part replaces 250000397. |
| 37 | 250400021 | Clevis Pin |
| 38 | 250400022 | Cotter Pin |
| 39 | 270000141 | Clip |
| 40 | 278000281 | Female Terminal Housing, 3 Circuits |
| 41 | 278002704 | Diagnostic Connector |
| 43 | 293150103 | Pop Rivet 3/16" |
| 45 | 293730040 | Mount Dart This part replaces 293730018. |
| 47 | 293750008 | Tie Wrap 368 mm |
| 98 | 293750063 | Clip Tie-Rap |
| 99 | 390402400 | Pop Rivet 3/16" |
| 100 | 414115200 | Tie-Rap 180 mm |
| 107 | 410301203 | Battery YUASA YTX20L |
| 110 | 705014949 | Winch Hook Kit This part replaces 705002329. |
| 111 | 705008547 | Winch |
| 113 | 715001119 | WINCH CABLE GUIDE - Call your local BRP dealership |
| 114 | 705006999 | CLAMP - Call your local BRP dealership |
| 115 | 715001699 | Winch Support This part replaces 705203110. |
| 116 | 705203504 | U-BOLT M10 - Call your local BRP dealership |
| 119 | 710000992 | Clip |
| 120 | 710001023 | Winch Connector |
| 121 | 710001036 | LH High Light Support |
| 121 | 710001115 | RH High Light Support |
| 122 | 710001037 | LH Low Light Support |
| 122 | 710001094 | RH Low Light Support |
| 123 | 710001059 | Connector Ass'y |
| 126 | 710001081 | RH Low Front Housing |
| 126 | 710001083 | LH Low Front Housing |
| 127 | 710001082 | RH Low Rear Housing |
| 127 | 710001084 | LH Low Rear Housing |
| 130 | 710001085 | RH High Front Housing |
| 130 | 710001087 | LH High Front Housing |
| 131 | 710001086 | RH High Rear Housing |
| 131 | 710001088 | LH High Rear Housing |
| 134 | 710001147 | Setting Screw |
| 137 | 710001191 | Voltage Regulator |
| 138 | 710001248 | DC Outlet |
| 139 | 710007777 | Starter Relay This part replaces 710001364. |
| 140 | 710001645 | Tail Light Ass'y |
| 140a | 520000758 | Bulb |
| 142 | 710001725 | Hi/Low Switch |
| 144 | 710001737 | Interrupteur 4X4 |
| 145 | 710001781 | Switch DPS |
| 146 | 710001916 | Battery Holder |
| 152 | 710002052 | Switch Winch |
| 153 | 710002053 | Switch, Over ride |
| 157 | 715007084 | Solenoid Kit This part replaces 710004142. |
| 158 | 710004386 | NEGATIVE CABLE - Call your local BRP dealership This part replaces 710002214. |
| 159 | 710008400 | Ignition Switch This part replaces 710003847. |
| 161 | 710002524 | Low Beam Ass'y |
| 161a | 415129249 | Halogen Bulb |
| 162 | 710002525 | High Beam Ass'y |
| 162a | 415129249 | Halogen Bulb |
| 163 | 710002594 | Engine Start Button |
| 164 | 710002684 | SWITCHED ACCESSORY - Call your local BRP dealership |
| 172 | 710004389 | Cable Positif *Cable-Positive This part replaces 710003151. |
| 178 | 710003265 | Heat Deflector |
| 179 | 710003335 | Fuse Holder |
| 181 | 710004391 | WINCH CABLE - Call your local BRP dealership This part replaces 710003414. |
| 182 | 710004392 | WINCH CABLE - Call your local BRP dealership This part replaces 710003418. |
| 183 | 710004342 | WIRING HARNESS ASSY - Call your local BRP dealership This part replaces 710004095. |
| 201 | 710004547 | Multifunction Speedometer This part replaces 710003928. |
| 201a | 415129355 | Speedometer Button |
| 201b | 415129348 | Gauge Ring |
| 201c | 415129349 | Lens |
| 202 | 710003541 | Switch PPS Sport |
| 206 | 710003680 | Rear Harness |
