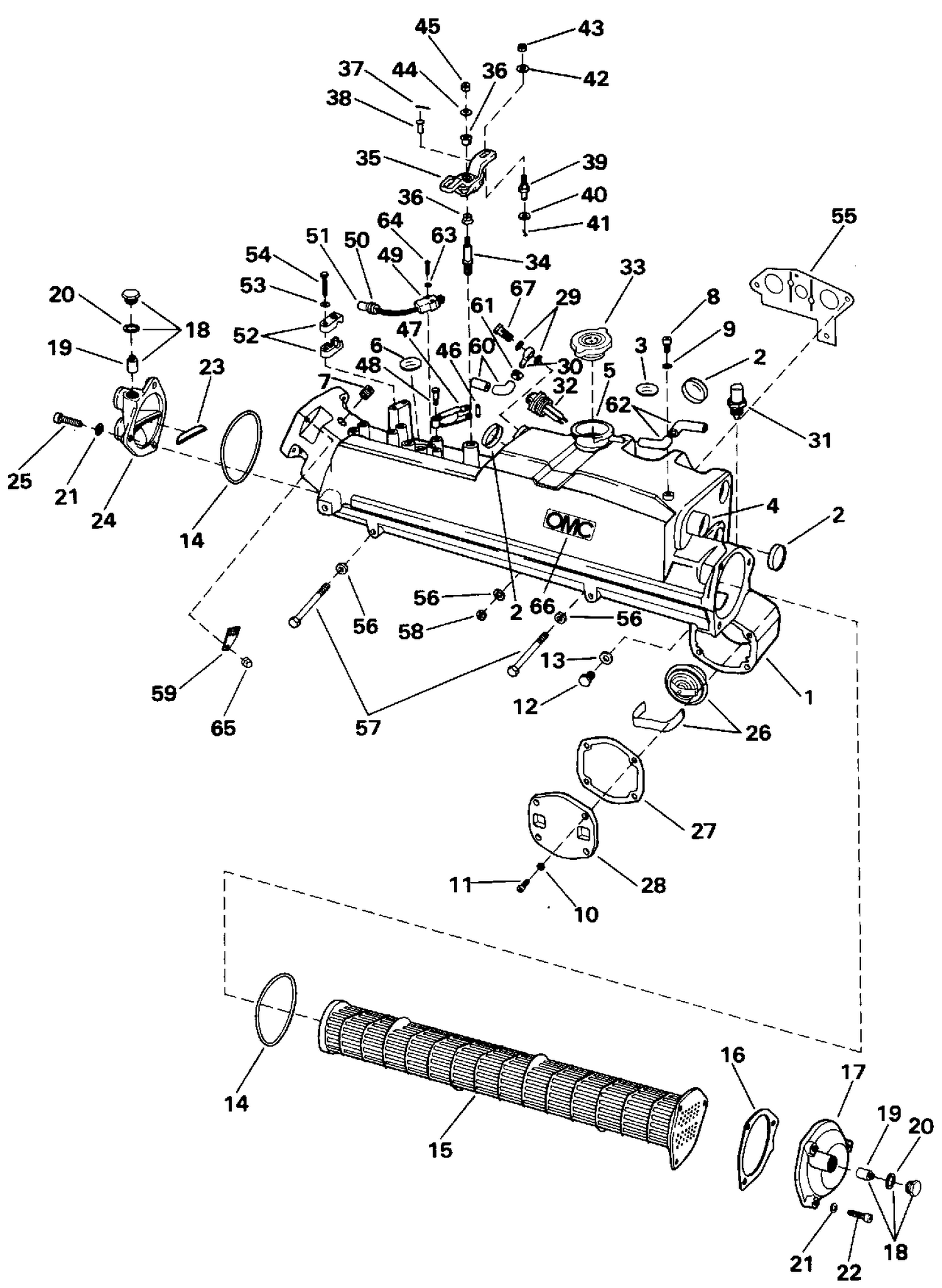

| Ref | Part Number | Description |
|---|
| 1 |
0987387 |
EXHAUST & HEAT EXCHANGER ASSY. This part replaces 0987388. |
| 2 |
0915540 |
CORE PLUG, Large |
| 3 |
0915541 |
CORE PLUG, Small |
| 4 |
0915544 |
PIPE INSERT, Coolant to pump |
| 5 |
0915545 |
FILLER NECK, Coolant |
| 6 |
0987723 |
CORE PLUG & O-RING |
| 7 |
0915365 |
PLUG, Fuel gallery, front |
| 8 |
0915550 |
PLUG SCREW, Expansion tank top |
| 9 |
0915549 |
SEAL, Plug, expansion tank top |
| 10 |
0915399 |
WASHER, Bolt, water pump |
| 11 |
0915407 |
BOLT, Clamp, oil suction pipe |
| 12 |
0915383 |
PLUG, Coolant drain |
| 13 |
0915647 |
SEAL, Fuel pump outlet |
| 14 |
0915551 |
SEAL, Exhaust heat exchanger |
| 15 |
0915552 |
HEAT EXCHANGER INSERT, Exhaust |
| 16 |
0915553 |
GASKET, Cover, exh. heat exch., front |
| 17 |
0915554 |
COVER, Exhaust heat exch., front |
| 18 |
0915525 |
PLUG, Zinc anode |
| 19 |
0915523 |
ZINC ANODE |
| 20 |
0915524 |
SEAL, Plug, zinc anode |
| 21 |
0915501 |
WASHER, Block |
| 22 |
0915860 |
BOLT, Cover heat exch., front |
| 23 |
0915555 |
GASKET, Cover heat exch., rear |
| 24 |
0915556 |
COVER, Heat exchanger exh., rear |
| 25 |
0915557 |
BOLT, Cover heat exch., rear |
| 26 |
0915558 |
THERMOSTAT, Coolant |
| 27 |
0915559 |
GASKET, Cover, thermostat |
| 28 |
0915560 |
COVER, Thermostat, coolant |
| 29 |
0915529 |
SEAL, Banjo, turbo, coolant bleed |
| 30 |
0915572 |
BANJO FITTING, For TC-bleed |
| 31 |
3854159 |
SENSOR, Coolant temperature This part replaces 0987389. |
| 32 |
0915561 |
COOLANT LEVEL SENSOR |
| 33 |
0915562 |
FILLER CAP, Engine coolant |
| 34 |
3853296 |
SHAFT, Shift lever This part replaces 0914626. |
| 35 |
0915911 |
LEVER, Shift |
| 38 |
3852835 |
PIN, Shift cable This part replaces 0913791. |
| 39 |
3853314 |
PIN, Shift cable This part replaces 0914727. |
| 44 |
0328738 |
LOCKWASHER |
| 46 |
3853247 |
ROLLER, Cam, shift interrupter This part replaces 0914481. |
| 47 |
3853251 |
CAM, Shift switch This part replaces 0914486. |
| 48 |
3853248 |
SCREW, Shift interrupter cam This part replaces 0914482. |
| 49 |
3854432 |
SWITCH, Shift assist This part replaces 0986368. |
| 52 |
3852836 |
ANCHOR BLOCK This part replaces 0913795. |
| 53 |
0915470 |
WASHER, Clamp to heatshield |
| 54 |
0915538 |
SCREW, Command cable anchor |
| 55 |
0915564 |
GASKET, Exhaust |
| 56 |
0915501 |
WASHER, Block |
| 57 |
0915565 |
BOLT, Exhaust |
| 58 |
0915453 |
NUT, Block |
| 59 |
0915592 |
BRACKET, Harness support |
| 60 |
0915518 |
CLAMP, Hose, turbo charger bleed |
| 61 |
0915488 |
CLAMP, Hose, boost pressure sender |
| 62 |
0915519 |
HOSE, Coolant overflow |
| 65 |
0915571 |
NUT, Exchanger to turbocharger |
| 66 |
0915275 |
DECAL |
| 0987387 |
0987387 |
EXHAUST & HEAT EXCHANGER ASSY. |
