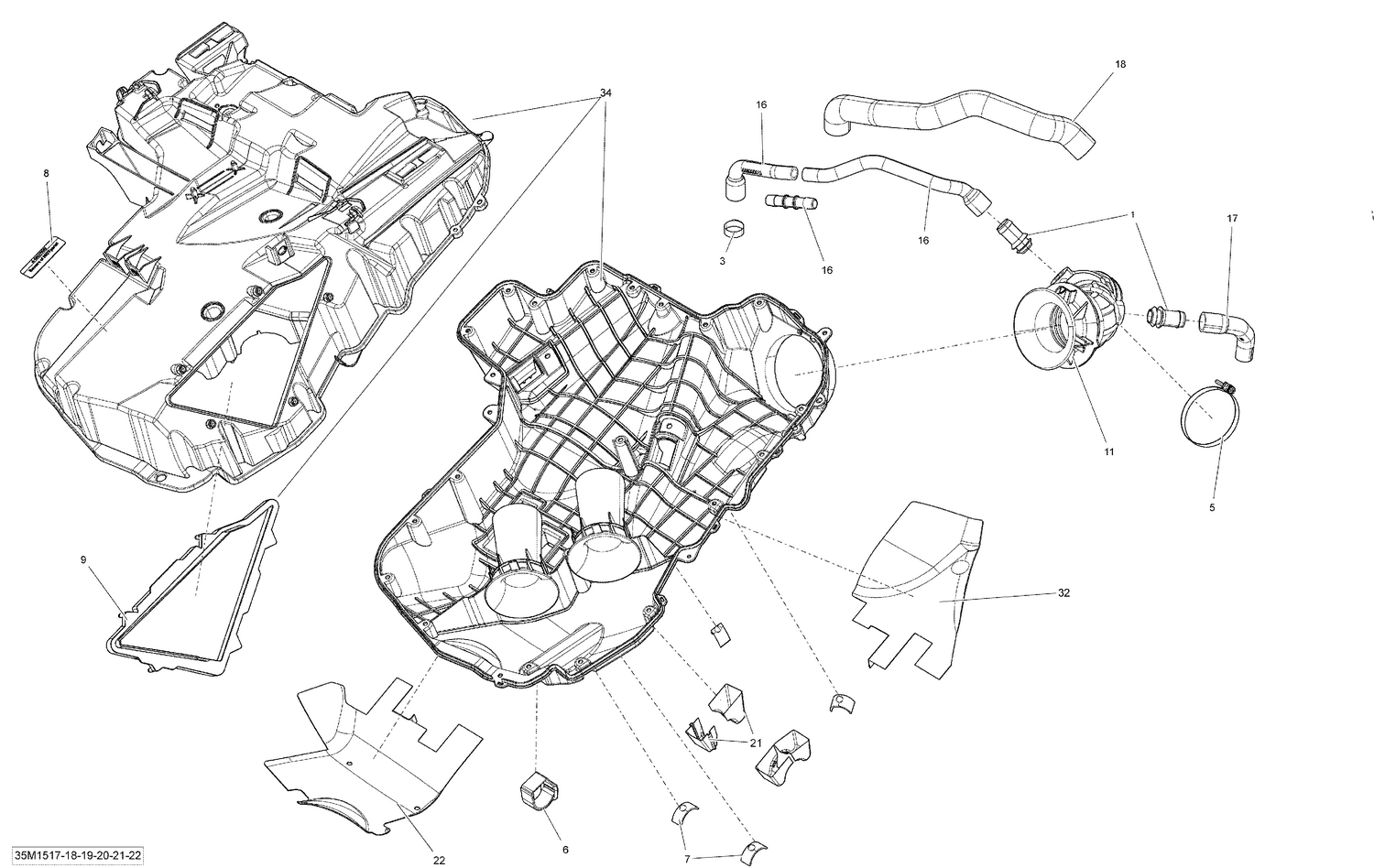

02- Air Intake System _35M1518
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 273000234 | Breather Valve |
| 3 | 293650172 | Tridon Gear Clamp |
| 5 | 508000346 | Gemi Clamp |
| 6 | 508000820 | Velcro Strip This part replaces 508000532. |
| 7 | 508000537 | Stopper |
| 8 | 516005280 | Caution Decal Hot Parts |
| 9 | 508000546 | Air Filter |
| 11 | 508000549 | INTAKE HOSE - Call your local BRP dealership |
| 16 | 508000615 | VENT HOSE - Call your local BRP dealership |
| 17 | 508000616 | FORMED HOSE - Call your local BRP dealership |
| 18 | 508000648 | Tube Isolator |
| 21 | 508000677 | Heat Shield |
| 22 | 508000793 | HEAT SHIELD - Call your local BRP dealership |
| 32 | 508000776 | HEAT SHIELD - Call your local BRP dealership |
