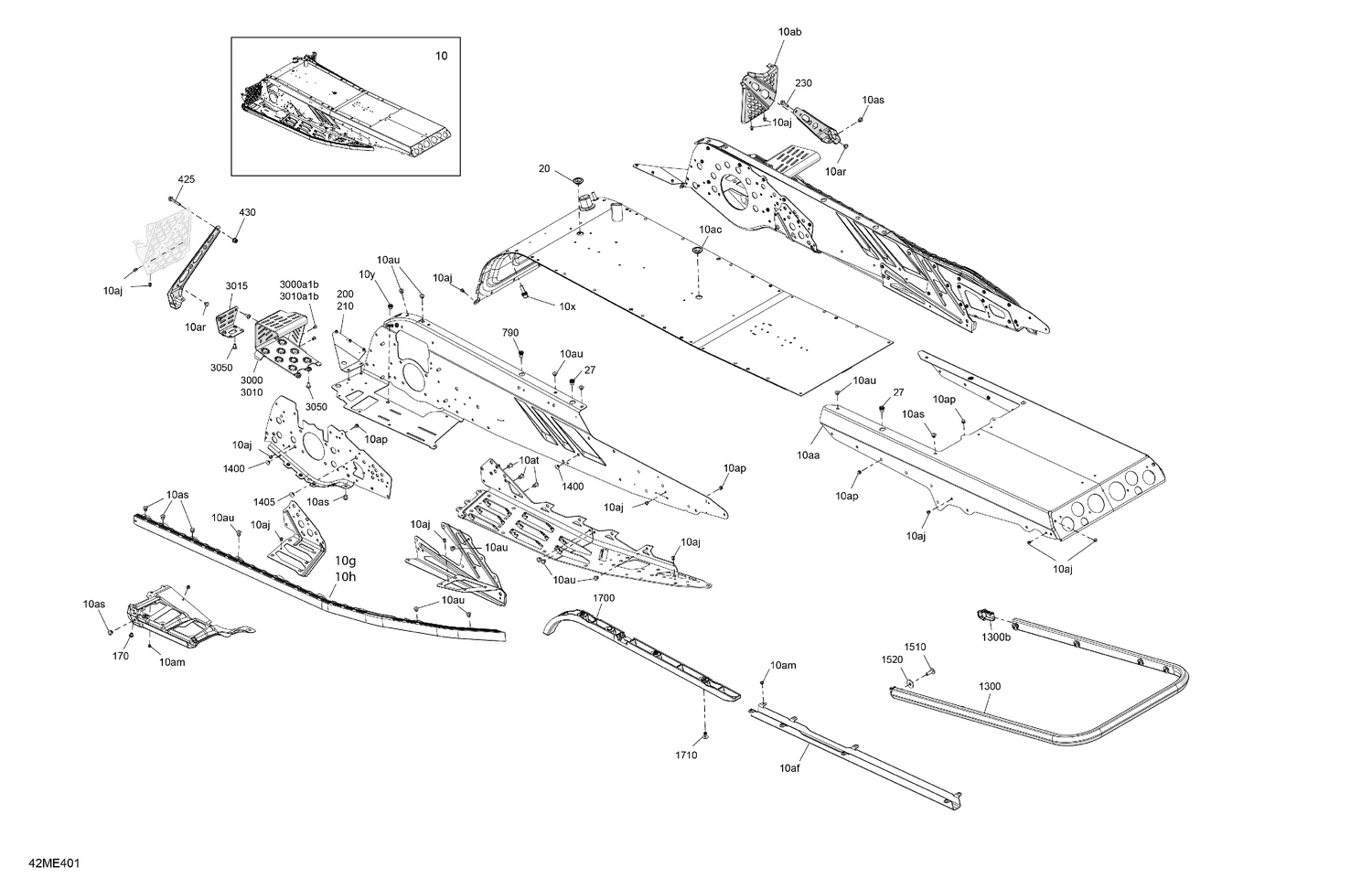

06- Frame - System - Rear Section
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 10aa | 518334039 | Rear Tunnel 137 |
| 10ab | 518333006 | RH Footrest |
| 10ac | 293730052 | Black, Plug |
| 10af | 518332732 | Rear Radiator Guard |
| 10aj | 293150203 | Rivet Avibulb 3/16 |
| 10am | 293150237 | Avibulb Rivet 4.8 X 12.1 |
| 10ap | 293150245 | Henrob Rivet |
| 10ar | 293150264 | Rivet Ornit 6,5 X 10.5 |
| 10as | 293150265 | Rivet Ornit 6,5 X 12.5 |
| 10at | 293150267 | Rivet Ornit 6,5 X 16.5 |
| 10au | 293150266 | Ornit Rivet 6,5 X 14.5 |
| 10g | 518329023 | RH Roller |
| 10h | 518329024 | LH Roller |
| 10x | 250300652 | Protruding Stud M8 x 22 |
| 10y | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 20 | 293730052 | Black, Plug |
| 27 | 293450275 | Insert |
| 170 | 293450267 | Insert M5 - 0.8 |
| 200 | 518329493 | LH Junction Reinforcement |
| 210 | 518329494 | RH Junction Reinforcement |
| 230 | 207562056 | Hex. Flange Screw M6 X 20 |
| 425 | 207562056 | Hex. Flange Screw M6 X 20 |
| 430 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 790 | 293450278 | Insert |
| 1300b | 520001612 | Cap |
| 1400 | 293730047 | Black, Dart 8 mm |
| 1405 | 293730060 | Black, Dart 10 mm |
| 1510 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1520 | 224061201 | Flat Washer |
| 1700 | 518329982 | Front Protector |
| 1710 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 3000a1b | 390909100 | Avex Rivet |
| 3010a1b | 390909100 | Avex Rivet |
| 3015 | 518329838 | Support |
